Micro Jig MATCHFIT CNC Workholding Kit
Description
Description

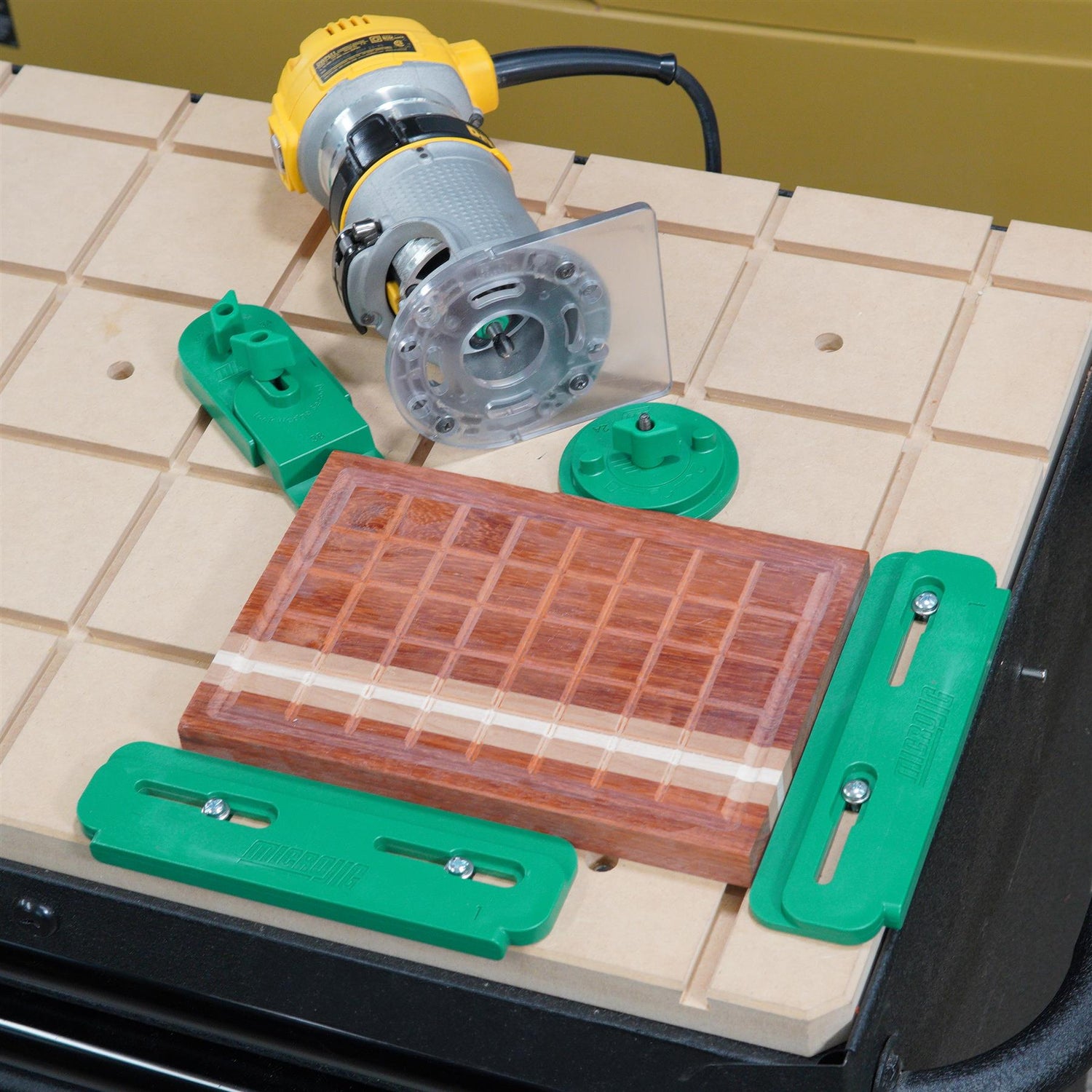

Experience the unmatched innovation of the Micro Jig MatchFit CNC Workholding Kit, where the ingenious low-profile design elevates your woodworking without getting in the way of your tools. It is the only clamping system that uses the MatchFit Dovetail System to securely hold stock while you work the top on your CNC, clamping table, jig, or fixture.
Virtually all CNC machines sold come with two simple hold-down clamps if any clamps at all, leaving you to figure out how to hold parts on your own. No more double-sided tape. Microjig gives you a comprehensive system for quickly and securely holding work on your CNC, whatever cuts you need to make.
When work needs to be done across the part surface, it must be held by the edges to prevent damage to the clamps and bits. Clamps holding stock from the top is the most common holding method, and our system engages the work top and edge to prevent movement during heavy milling.
Microjig's CNC Workholding kit uses the MatchFit Dovetail Hardware in the spoilboard we teach you how to make to fit your machine bed. This allows most setups to be done quickly with no tools.

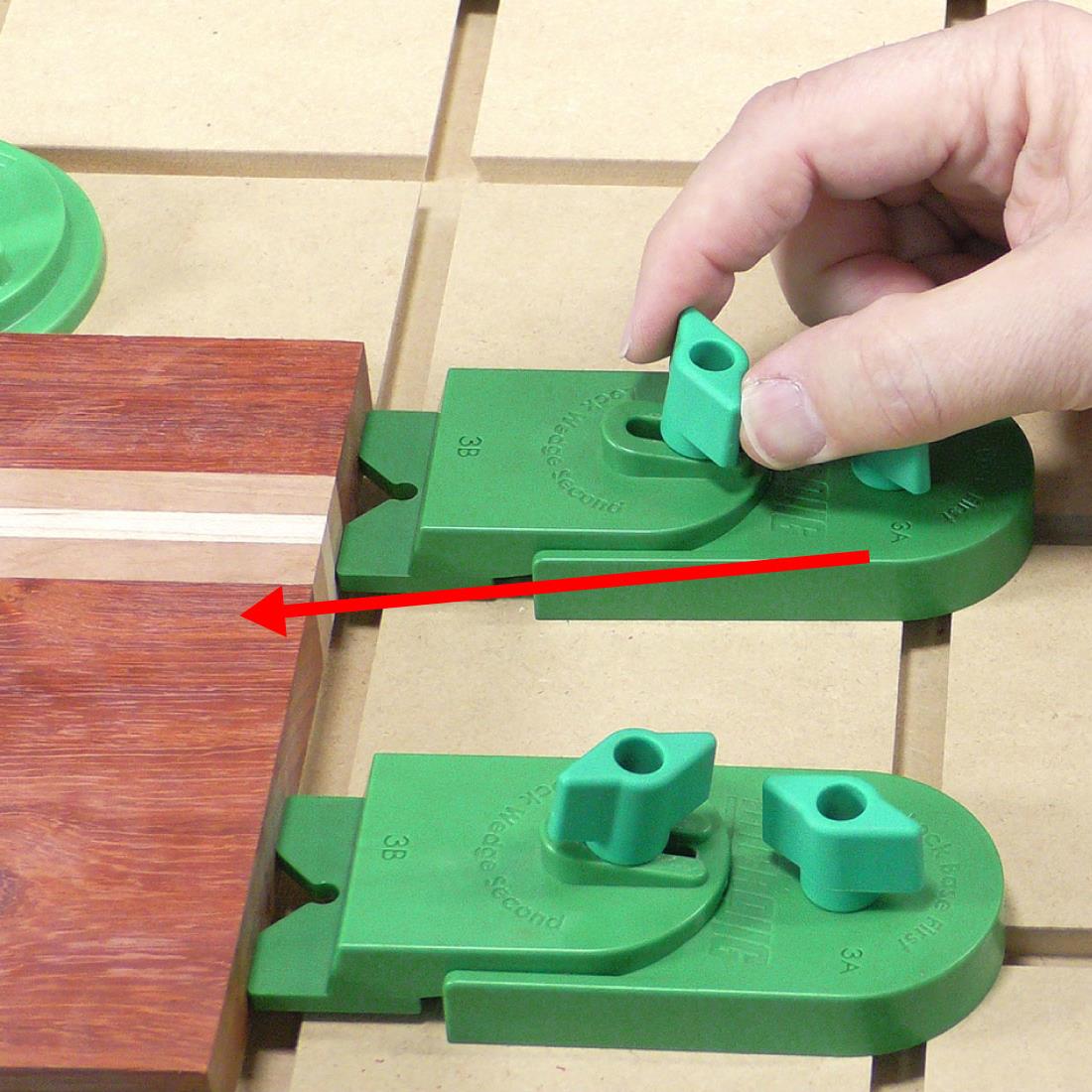

Edge Guides
Edge Guides locate along your spoilboard to provide an accurate, low-profile origin point for easy setups, especially when repeating programs. They can also be aligned within any MatchFit Dovetail Groove.

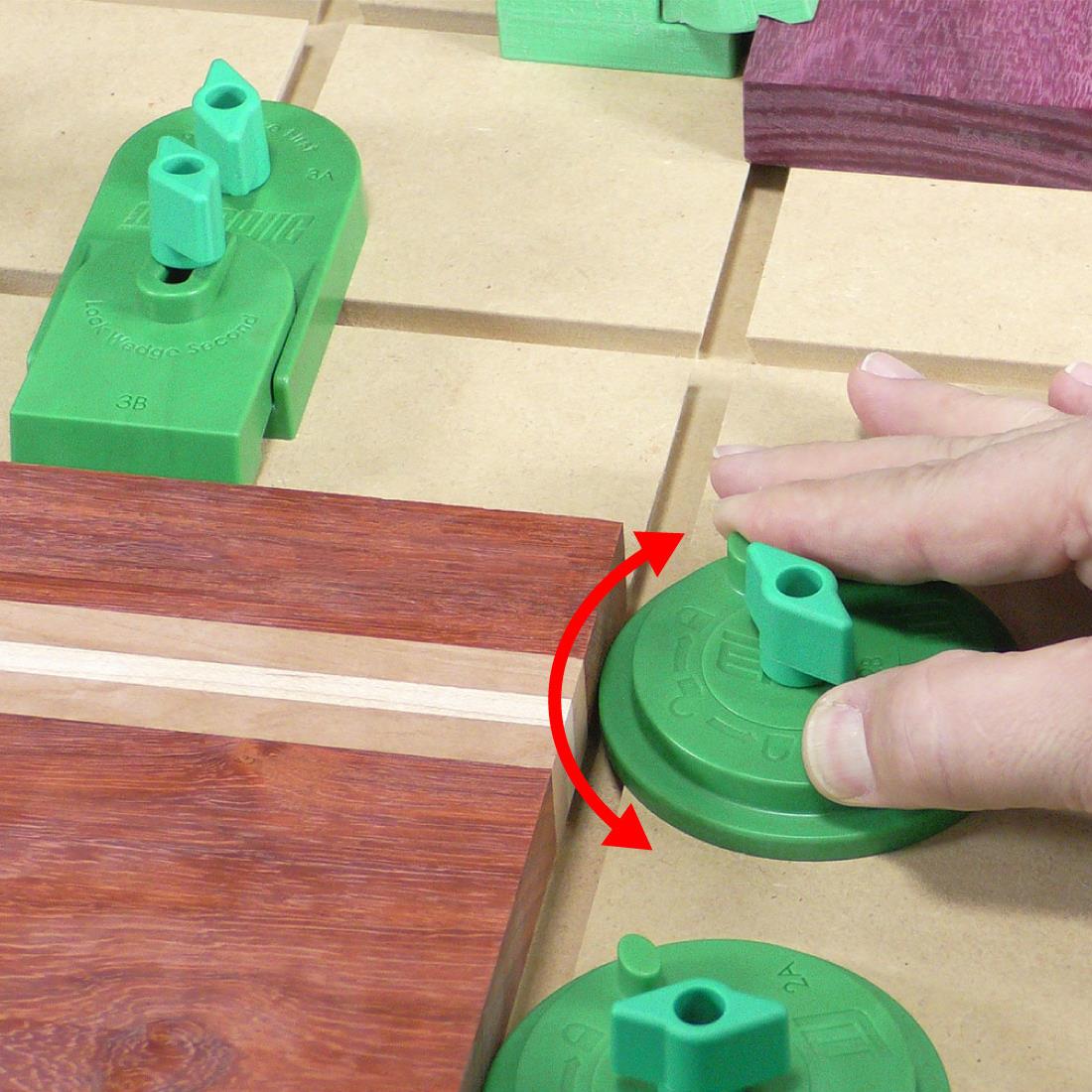

Ring Clamps
Ring Clamps can be placed anywhere along your work table. They lock and unlock your parts with just a twist of the wrist and feature a unique fixed hub that eliminates loosening when using.
Ramp Clamps
Ramp Clamps use ramps to hold parts applying force in and down to prevent movement and lifting. They feature a clamping edge that moves forward and down along a ramp to provide clamping force in two directions.

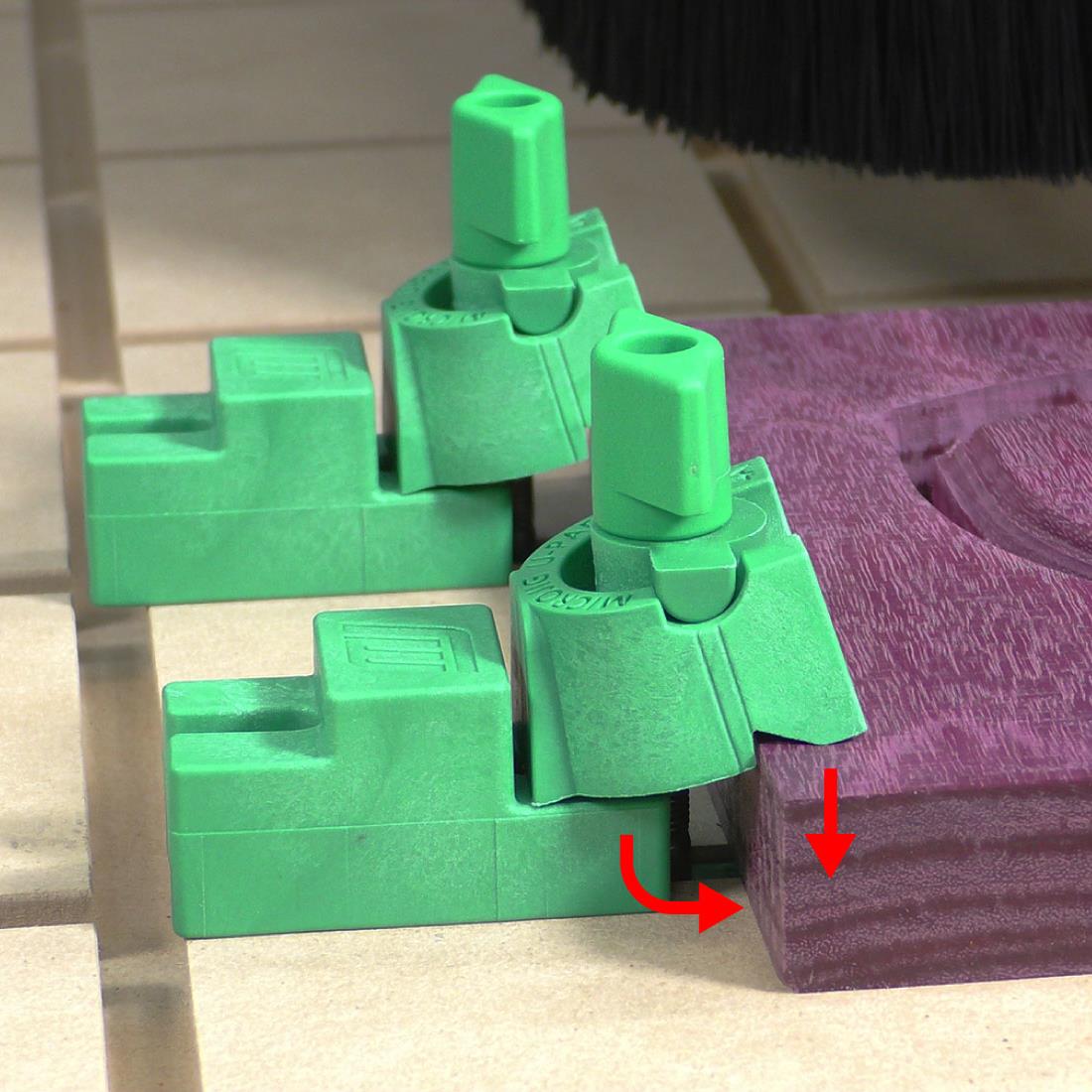

U-Pad Clamps
U-Pads apply pressure on the top and sides at the same time, preventing both lifting and sliding. U-Pad Clamps provide superior hold for stock up to 28mm (1-1/8") thick.
Features
- CNC Workholding kit uses the MatchFit Dovetail Hardware technology to secure the clamps

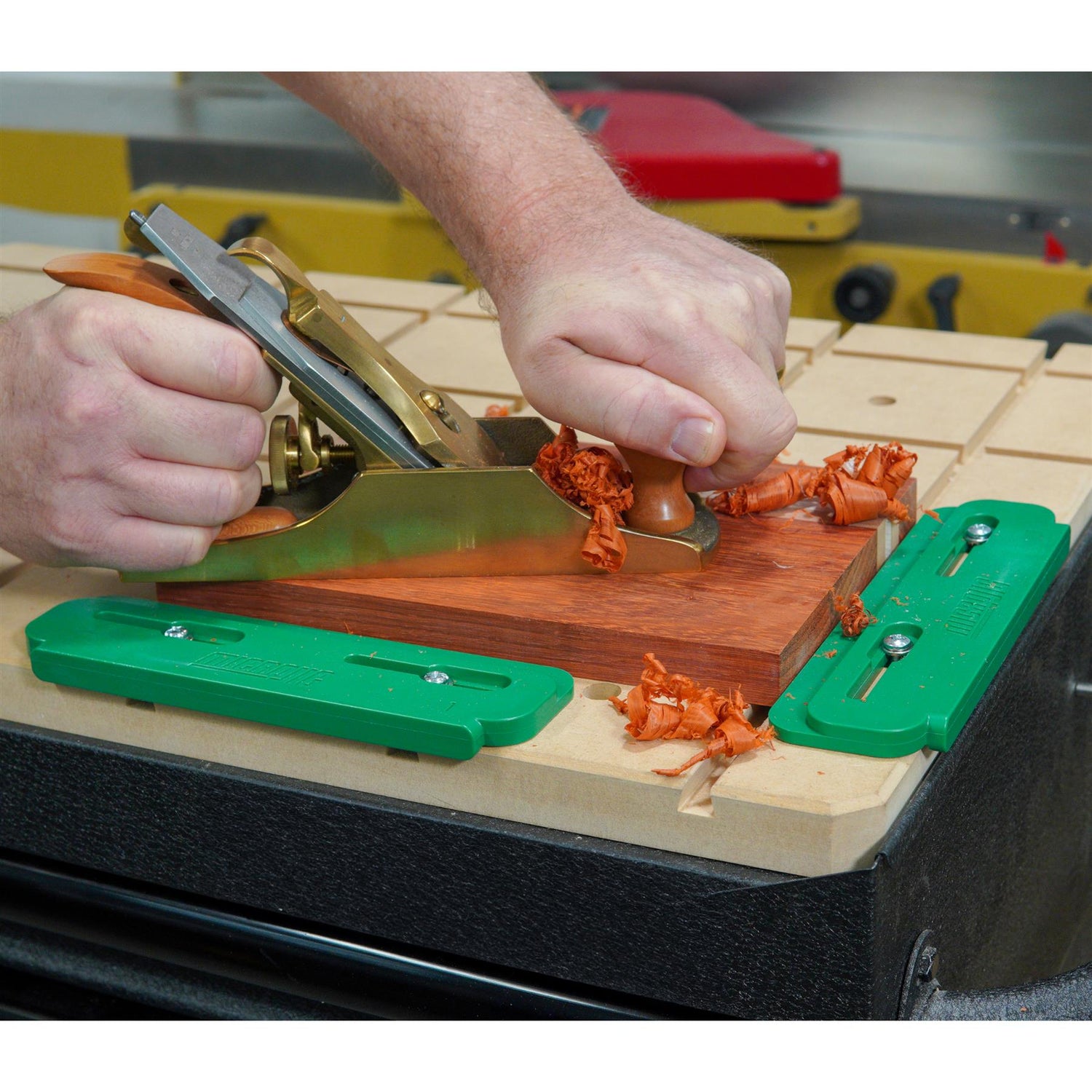

- Made for CNC machining but also great for general work holding
- Low profile design keeps clamps away from tools
- 4 different styles of workholding clamp

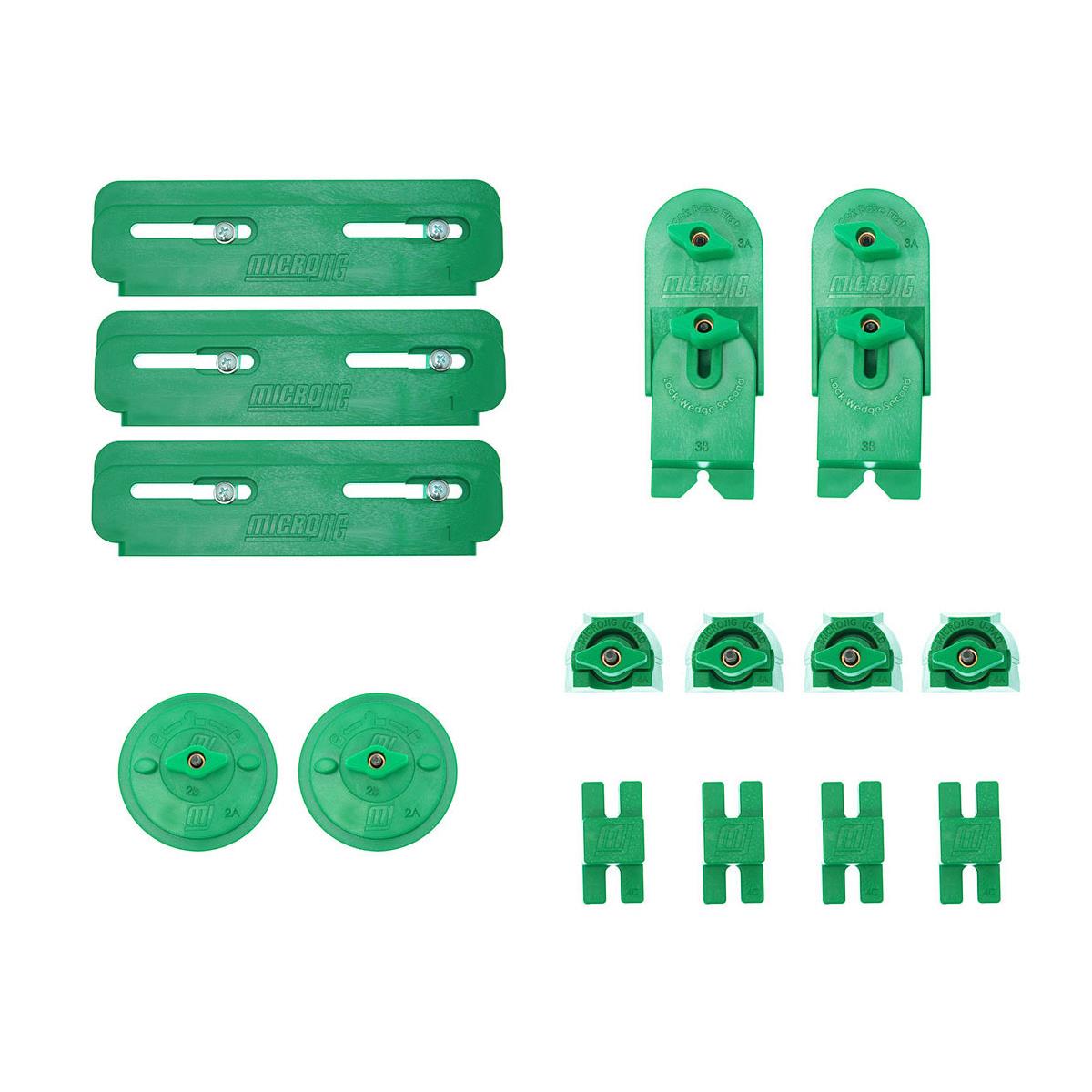

Includes
- 3 x Edge Guide
- 2 x Ring Clamp
- 2 x Ramp Clamp
- 4 x U-Pad Clamp
- Nylon mounting hardware
