Harvey Compass ST-1500 Sliding Table for ALPHA HW110SE Table Saw
Description
Description

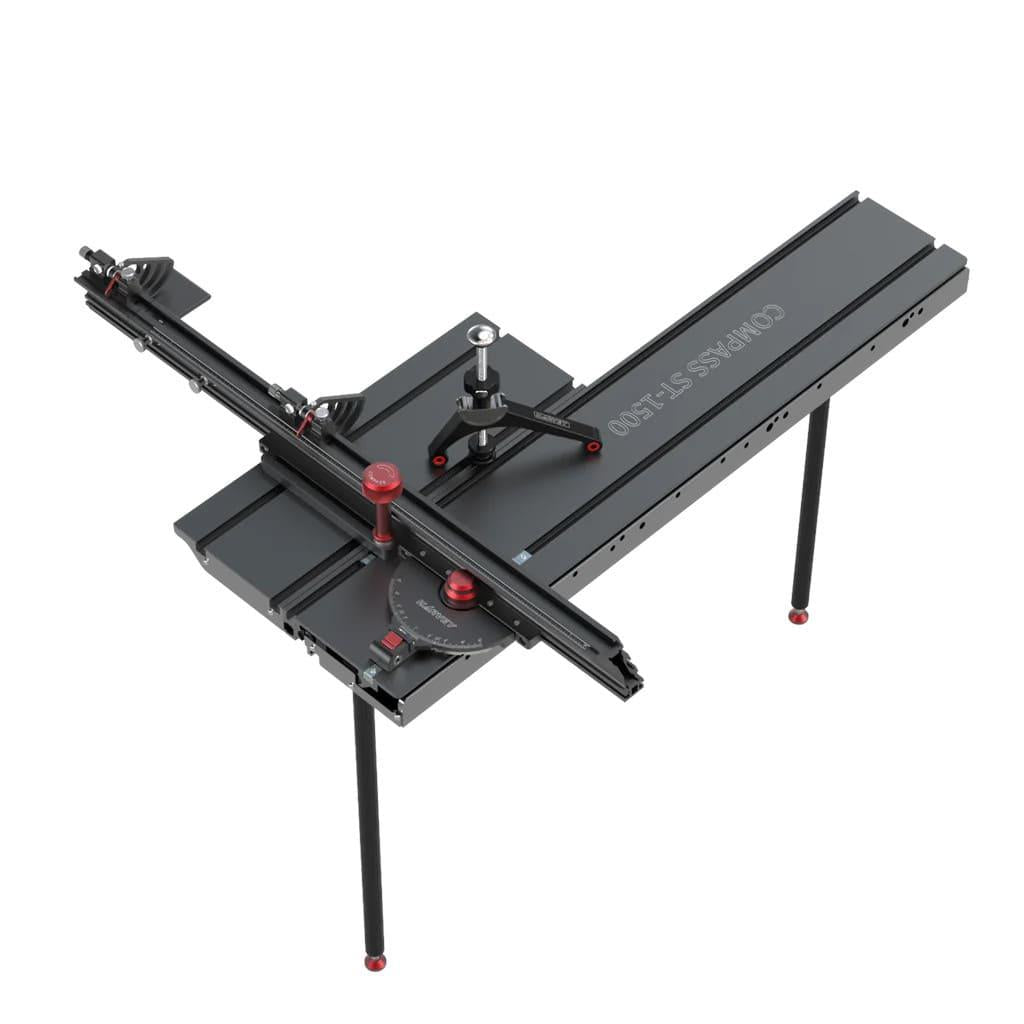

The Compass ST-1500 Sliding Table is the culmination of 10 years of development by Harvey to design an accessory that matches up to the same incredibly high standard already set by their table saws. Made up of an industrial-grade sliding carriage, an extremely accurate crosscut mitre fence system, an innovative work clamp and 2 support legs. It is a perfect addition to the Harvey HW110-SE table saw and is built to satisfy the most demanding woodworkers and meet all their table saw requirements.
Features
- Industrial grade sliding carriage with 1200mm (48″) capacity
- Large surface area for better workpiece stability
- Support legs for zero deflection
- Extremely accurate crosscut mitre fence
- Mitre guide indexing has 7 automatic positive stops
- Any other angle can be manually set, accurate to 0.1 degrees
- Crosscut fence 1090mm long, extends To 1500mm
- 2 flip-over stops with micro-adjustments To 0.02mm
- COMPASS AH-3T arch hold-down clamp
- 2-year warranty

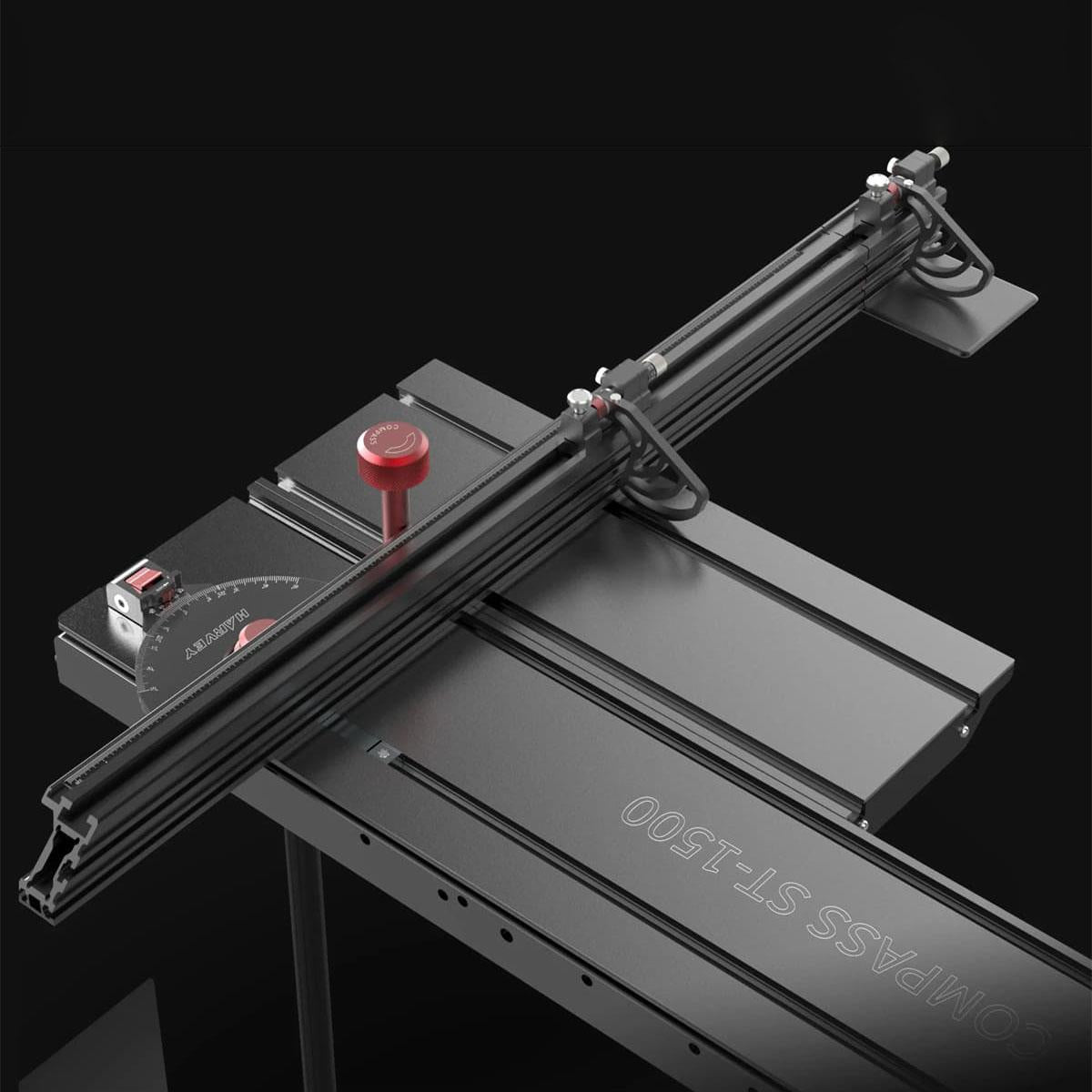

Industrial Grade Sliding Carriage

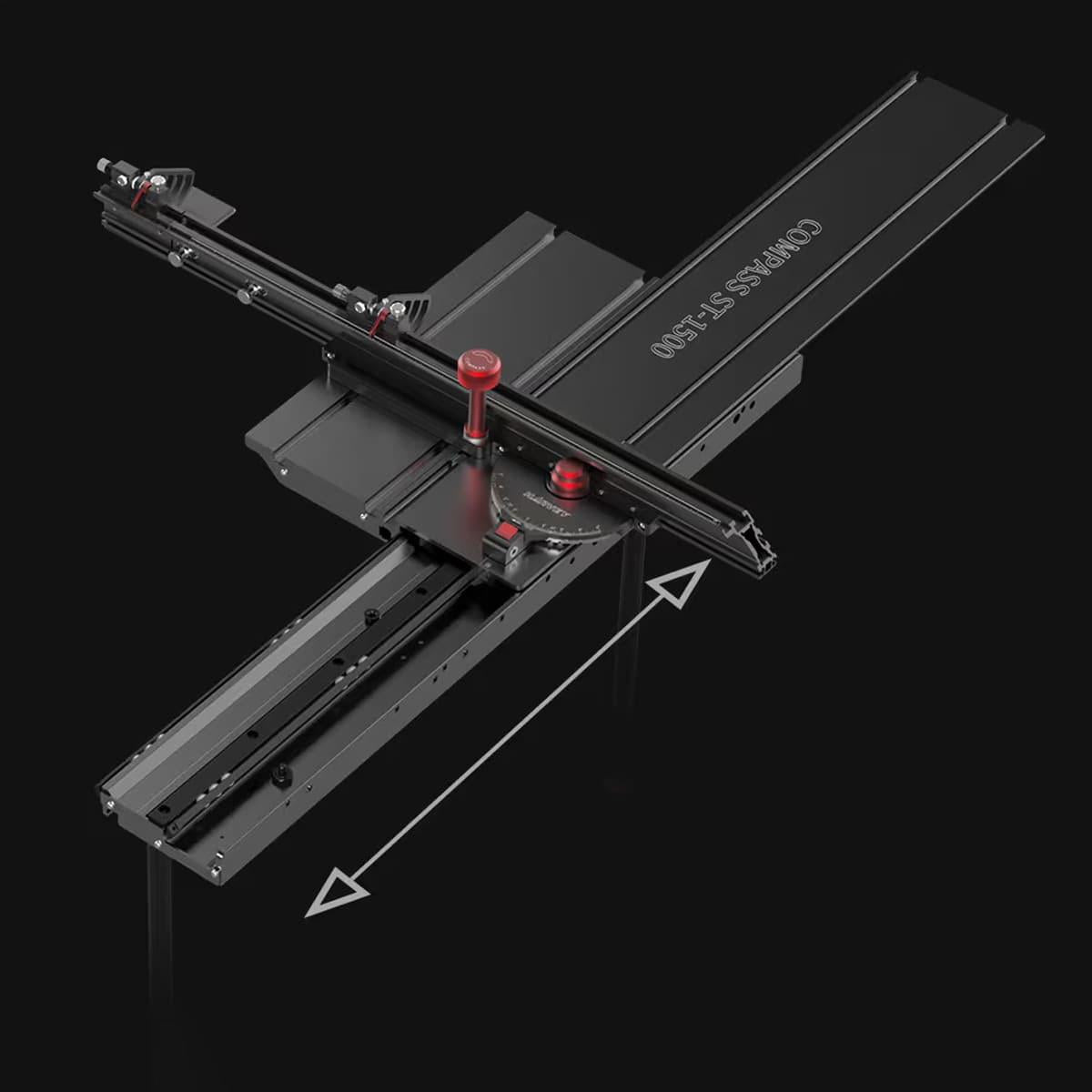

Two V-shape ball-bearing tracks assure accuracy and consistent smoothness along its travel. The travel length is 1500mm (60”) giving a maximum crosscut capacity of 1240mm (48″) and can handle a full-size sheet.
The table measures 228mm x 1200mm (9″ x 47″), with an extension table of 228mm x 600mm (9″ x 24″). The total table width is therefore 456mm, giving good support for most panel work. When not in use, the sliding carriage can be locked into a static position. A support leg at each end, with adjustable feet, guarantees zero flex and deviation whatever the load.
Extremely Accurate Crosscut Mitre Fence

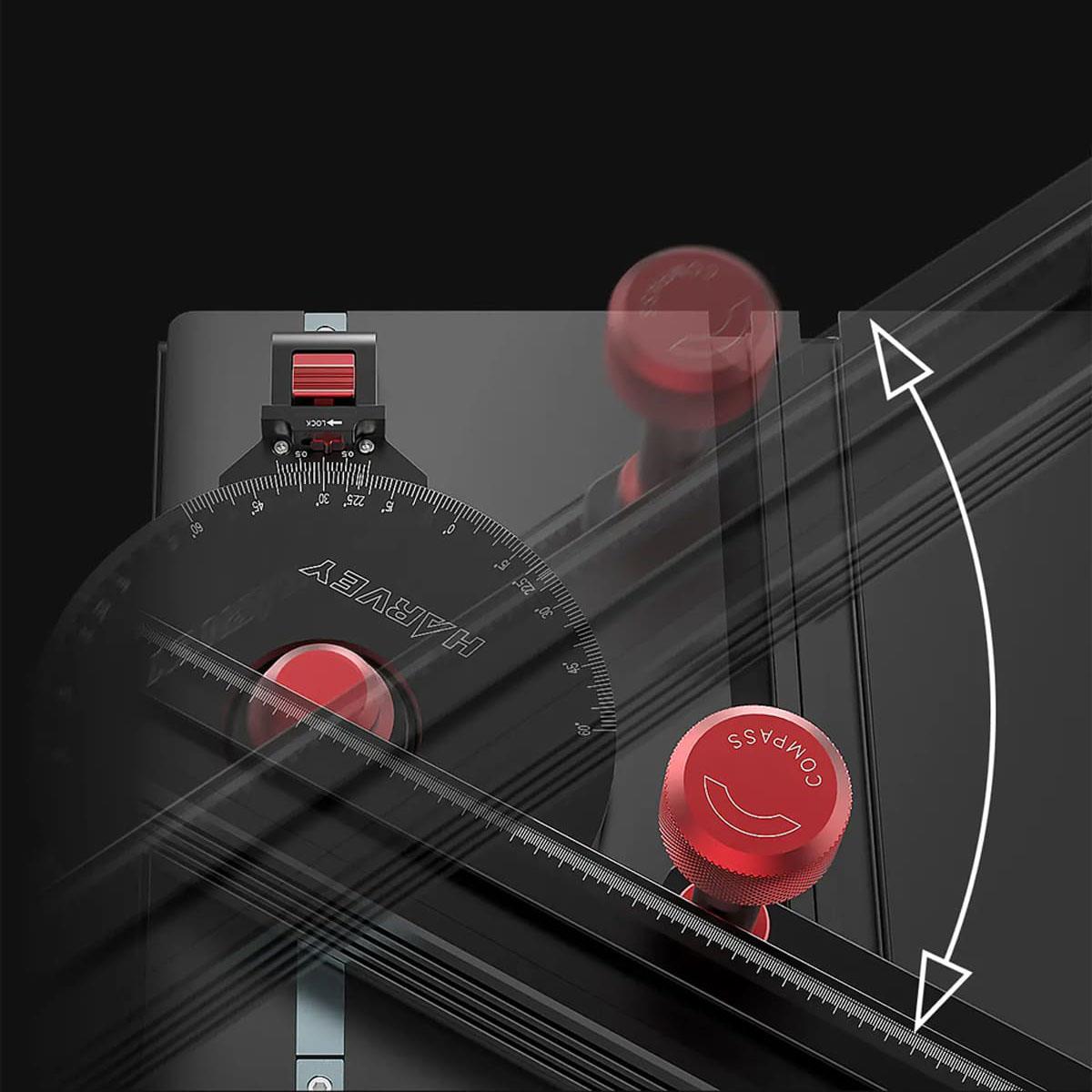

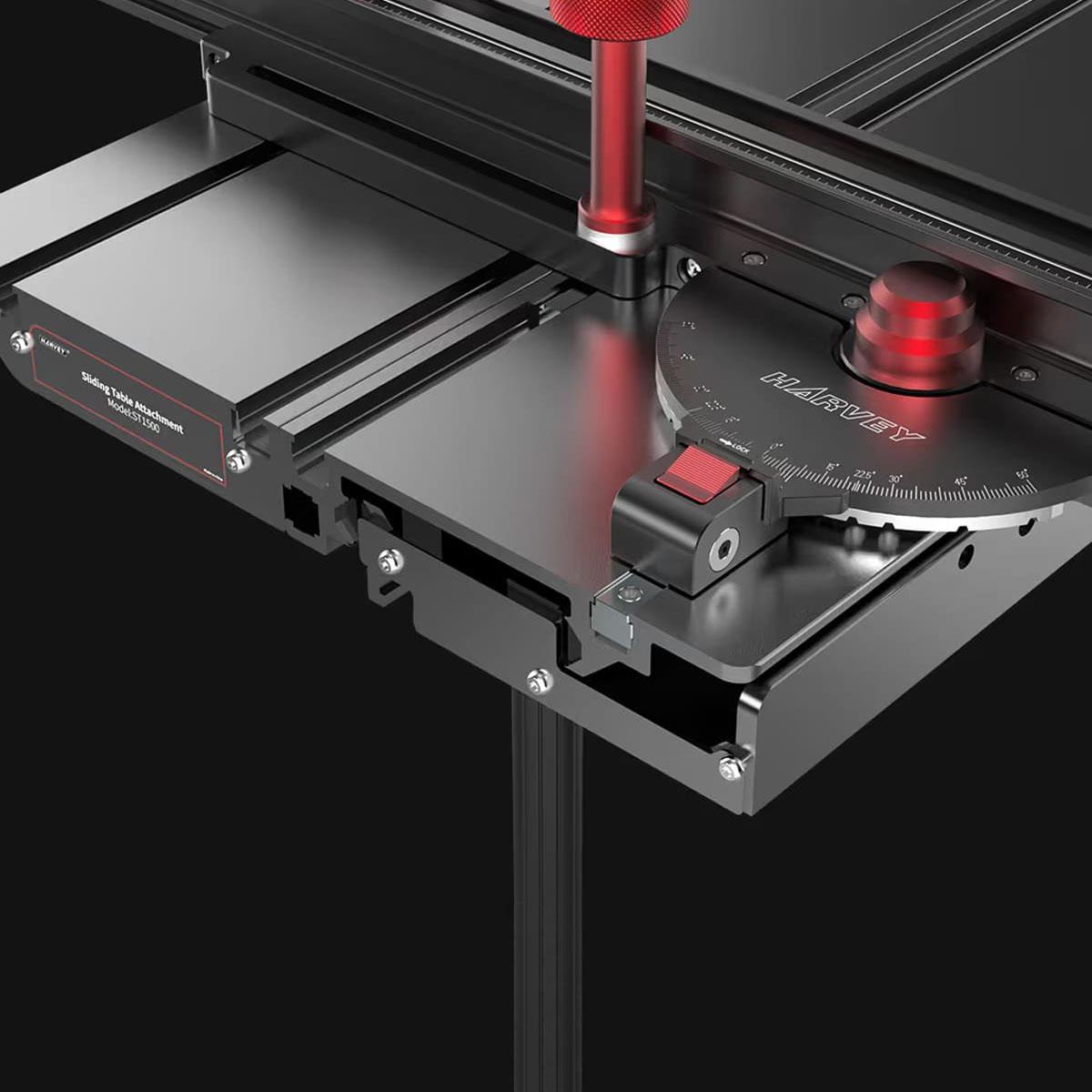

The mitre fence system is designed with a rock-solid Fence Body with extension, a large and sturdy half-moon indexing gauge that has 7 positive stops at -60°, -45°, -22.5°, 0°, +22.5°, +45°, and +60° with 0.02-degree angular accuracy. These preset angles automatically engage with precision thanks to the uniquely designed positive index system consisting of tapered grooves and a spherical locking pin. The mitre gauge can be manually set to any other angle with fine angle tuning to 0.1 degrees.

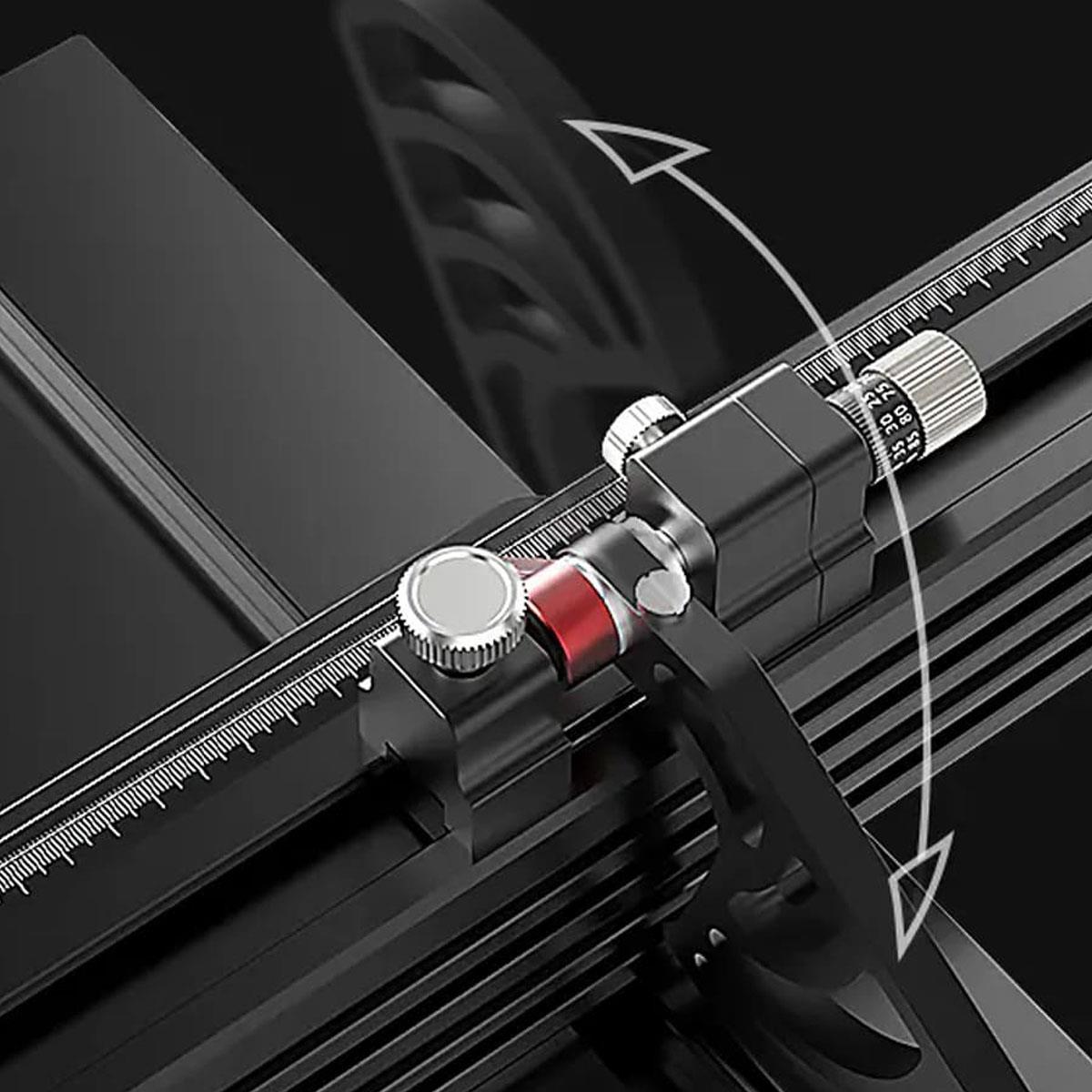

Crosscut Fence with Micro-Adjustable Flip Stops

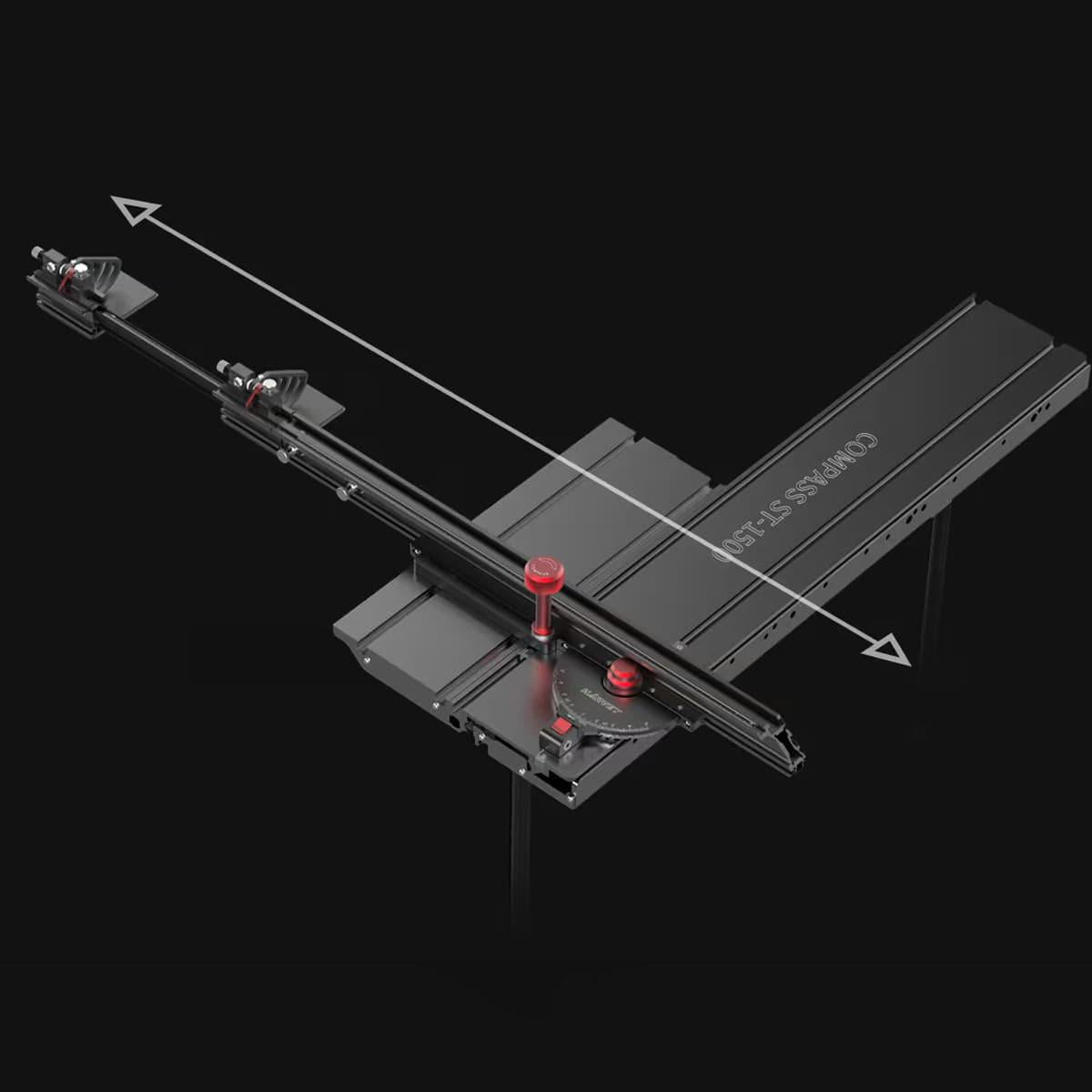

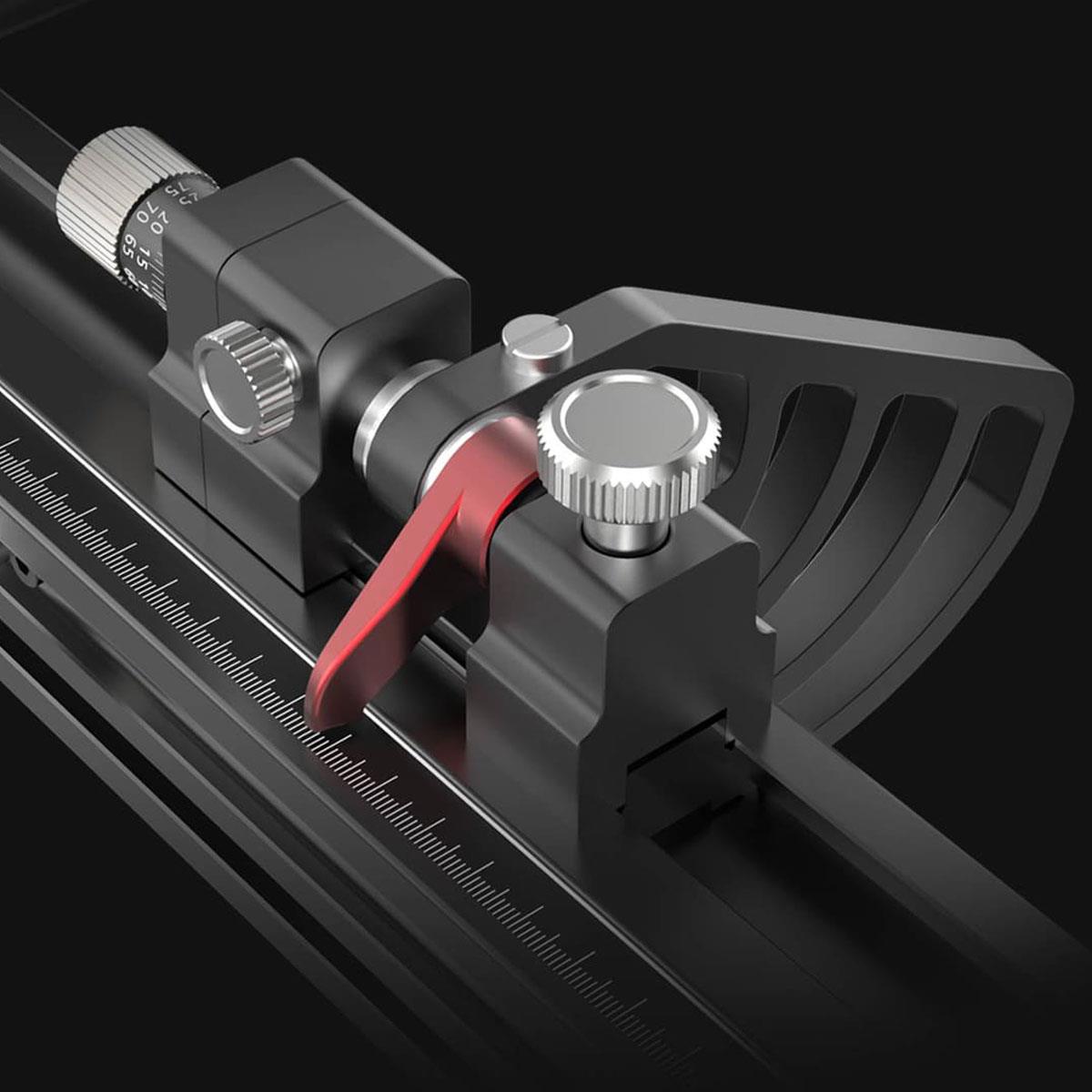

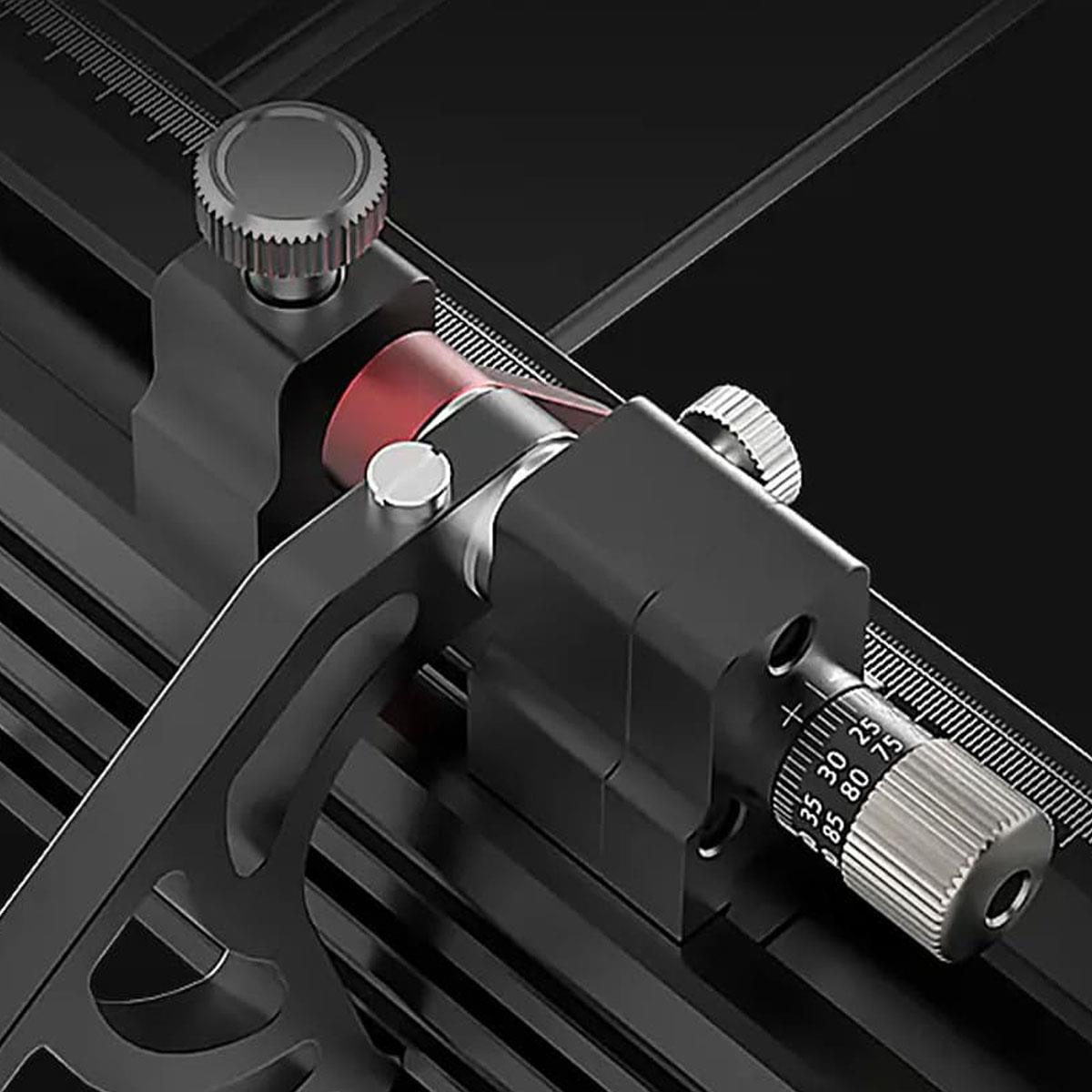

The crosscut fence is 1090mm long, fully extending to 1500mm and comes with 2 x flip stop assemblies that can be locked anywhere along the length of the fence. Once locked in place, you can make micro-adjustments in 0.02mm increments.
COMPASS AH-3T Arch Hold Down Clamp

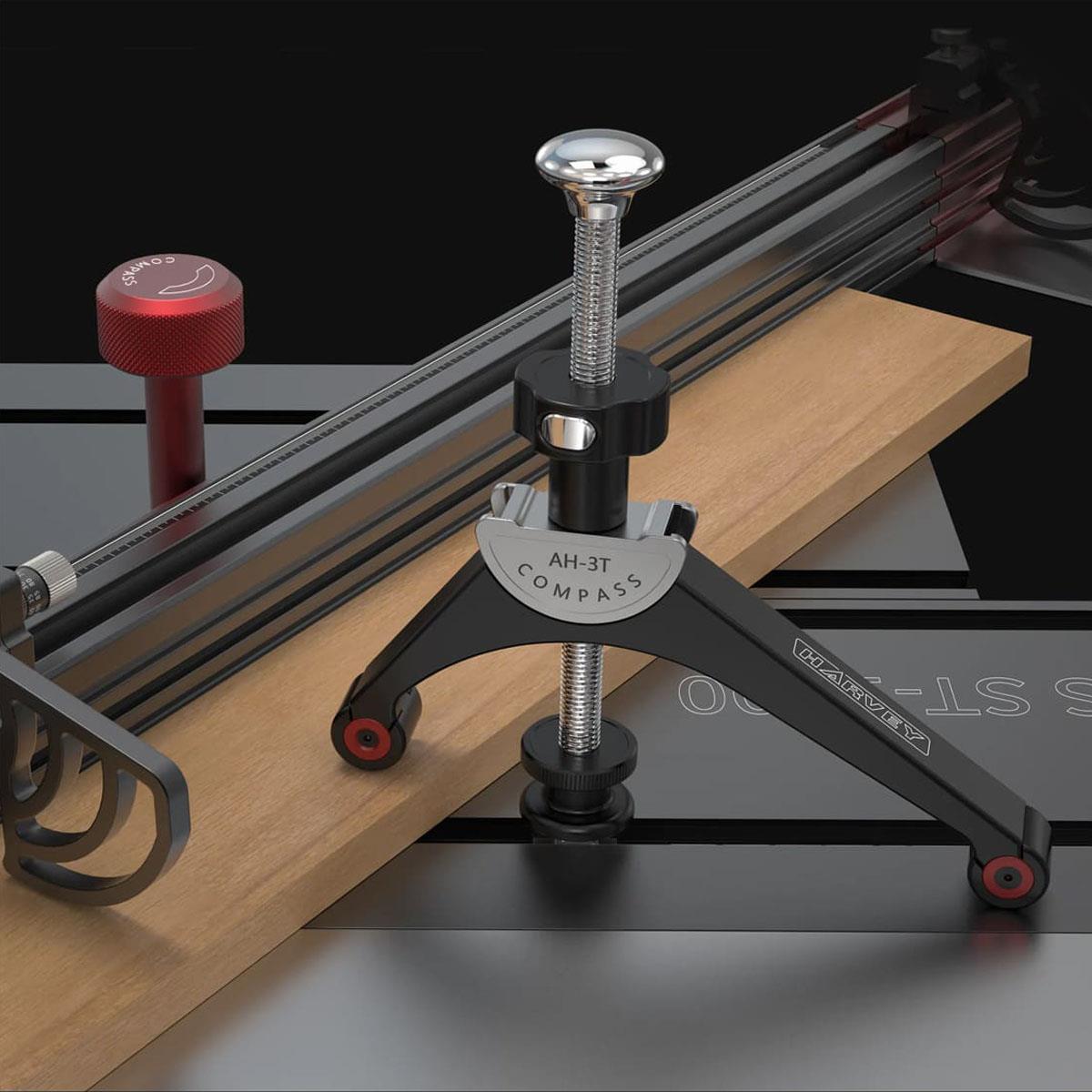

The unique arch structure of the AH-3T hold-down clamp securely clamps the workpiece in place with pure vertical pressure, without pressure deformation and sideways stress on the central shaft, thus achieving the highest level of stability.
The arch hold-down can be used in 2 modes, depending on the thickness of the material to be clamped.
