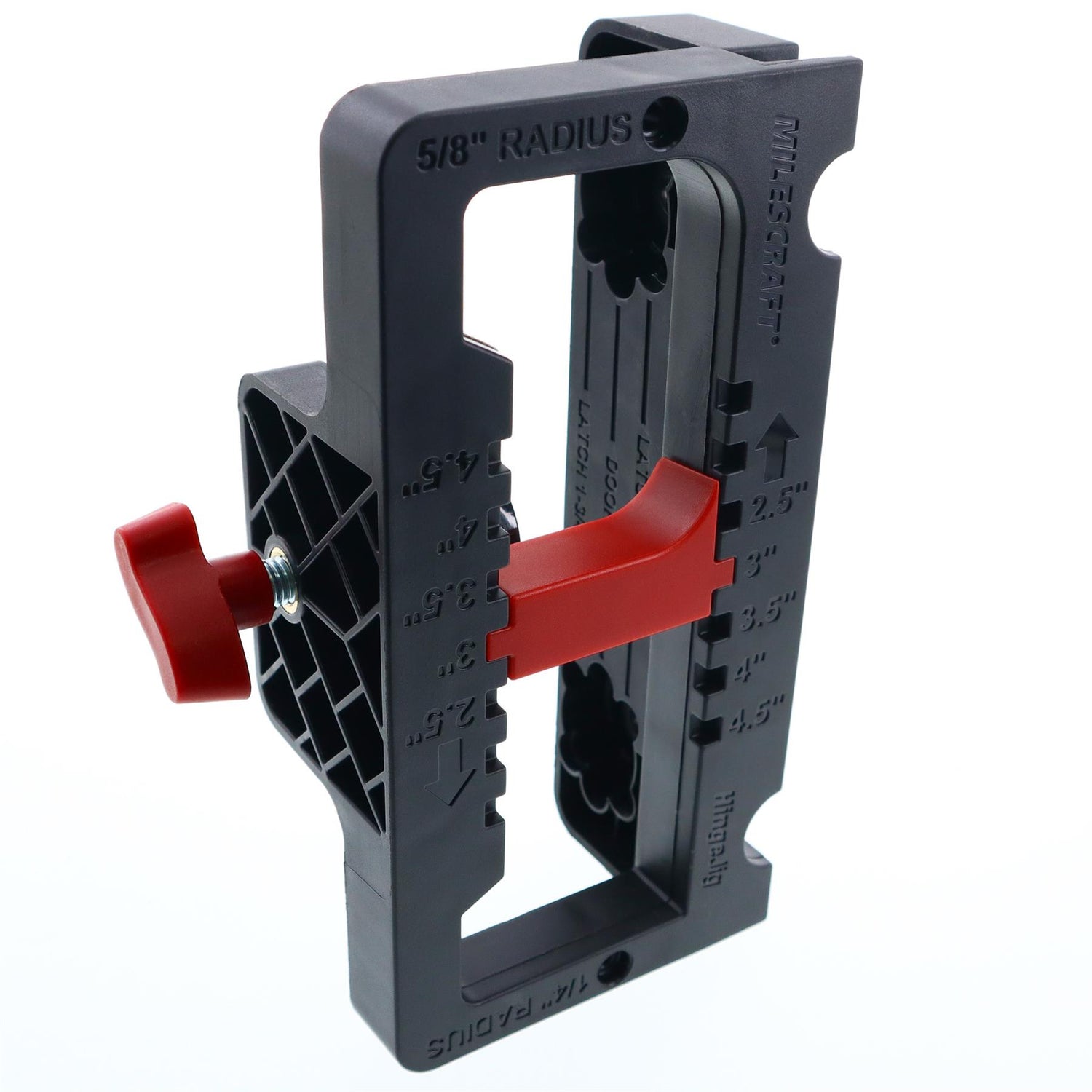

Milescraft HingeJig

Regular price £26.95
Tax included
  • Warranty: 1 Year & Lifetime Customer Support
  • Price Match Promise
  • Order by 2pm for Same Day Dispatch – Mon to Fri
  • UK Delivery from £4.50 | FREE over £85
  • UK Next Day Delivery Available
  • Click & Collect Available
  • 45 Day Hassle-free Returns
  • Worldwide Shipping | No Hidden Costs

Description

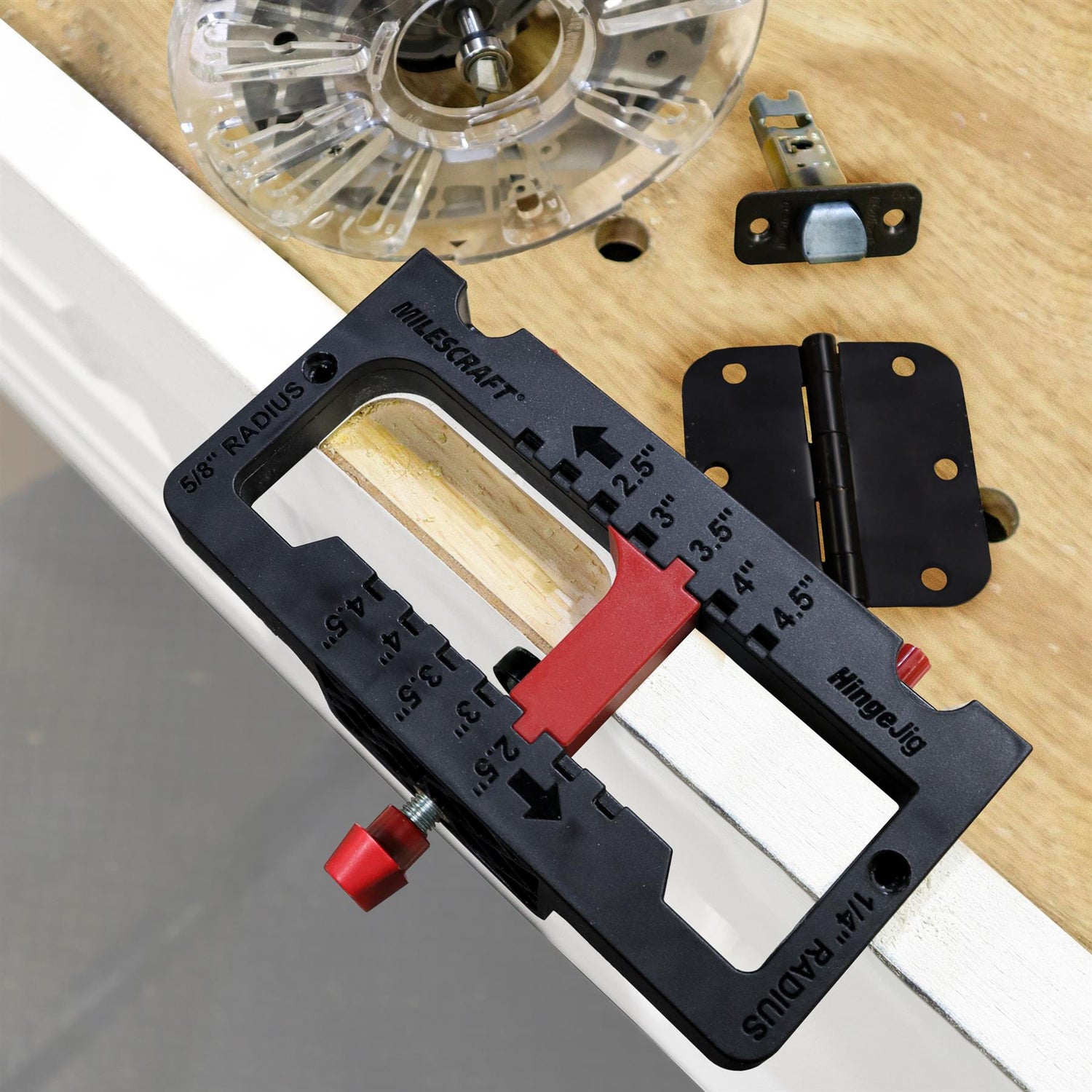

The Milescraft HingeJig saves time and removes the guesswork when installing new doors into existing frames. This self-clamping jig includes everything needed to rout hinges and latch mortises onto new doors. The self-clamping feature holds the HingeJig in place while routing without the use of screws or nails that can leave holes in a finished door.

Features

  • Padded clamp design sets up quickly and prevents damage to doors caused by mounting screws or nails
  • Adjustable settings allow the HingeJig to be used on doors sized 34.9mm (1-3/8") and 44.5mm (1-3/4") thick
  • The HingeJig can rout hinge mortises for 5 common hinge sizes from 2-1/2" (63.5mm) up to 4-1/2" (114.3mm)
  • Cut professional hinge mortises with 6.35mm (1/4"), 15.9mm (5/8"), or square corners (chisel or corner chisel required)

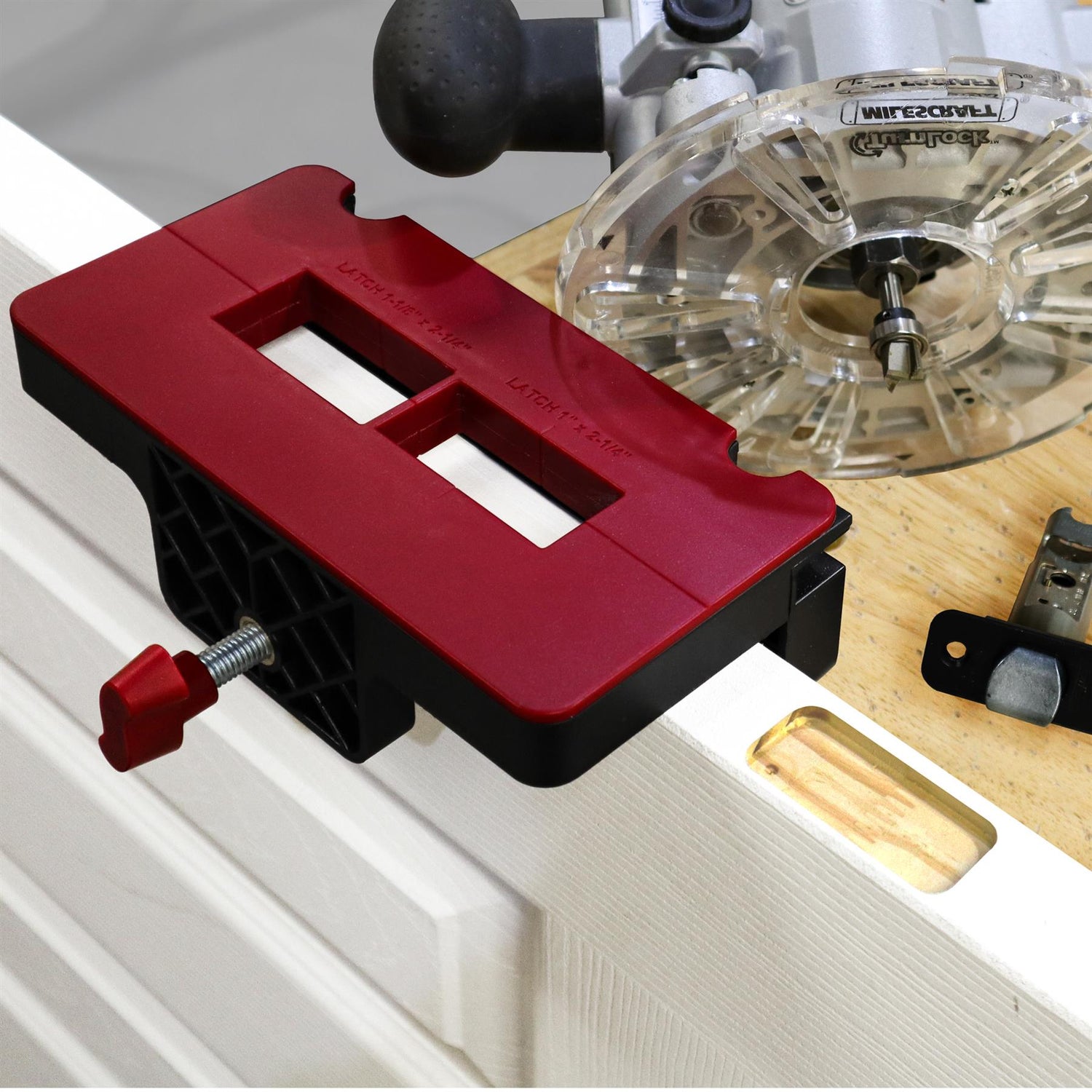

  • The HingeJig kit also includes three templates to rout door latch mortises (sizes below)
  • Set router bit depth with built-in depth setting gauge for smaller or larger size door hinges
  • Includes a self-guided router bit with bearing to cut clean and smooth door hinge mortises
  • Contains built-in storage compartments for the included router bit and self-centring hinge bit (sold separately)

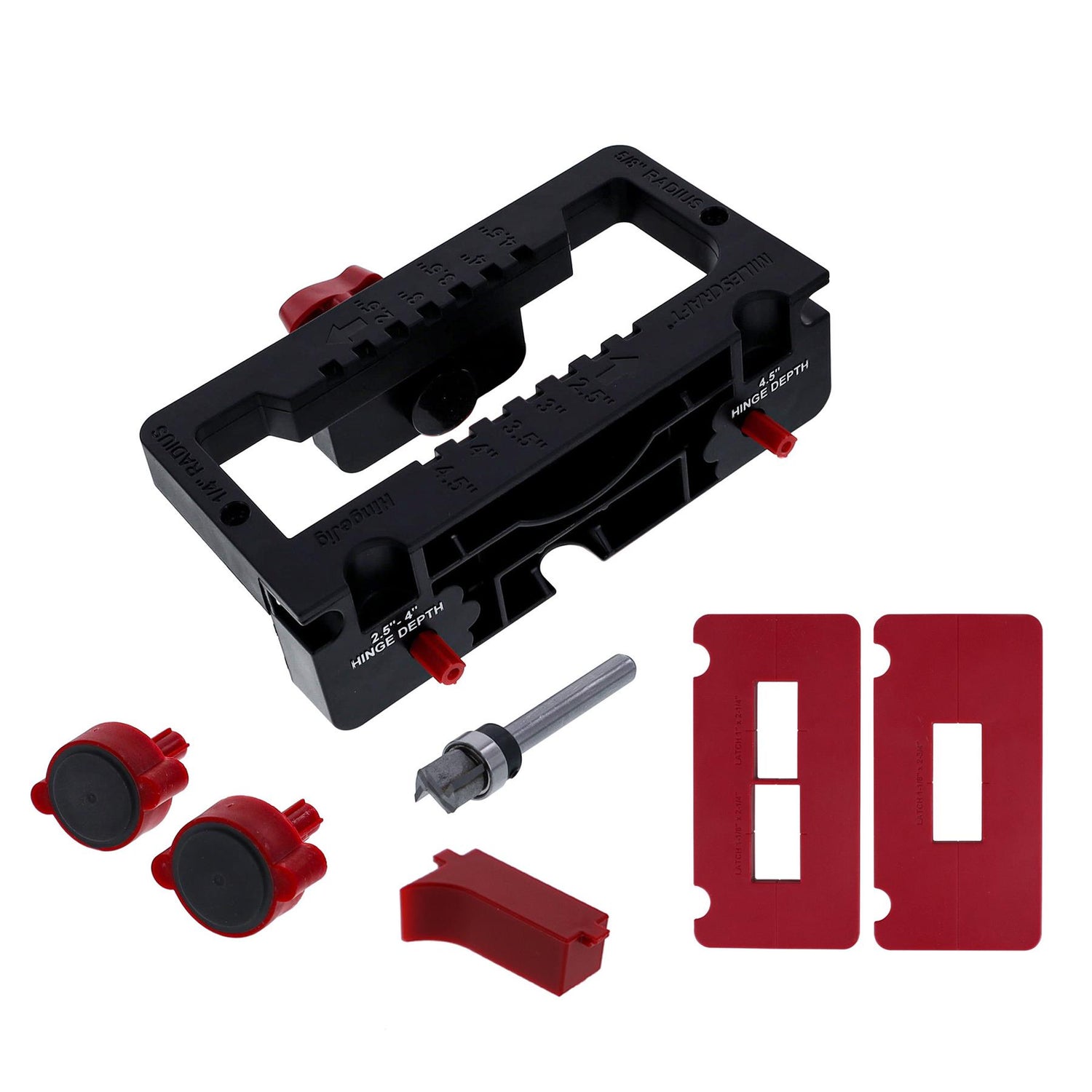

Includes

  • 1 x Jig Main Body,
  • 1 x Built-in Clamp

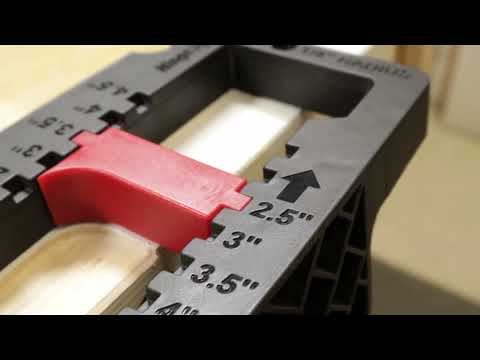

  • 1 x Adjustable Hinge Spacer
  • 1 x 12mm Router bit with Bearing
  • 2 x Adjustable Backset Plugs
  • 2 x Latch Templates

Specification

  • Door Hinge Sizes: 63.5mm (2-1/2"), 76.2mm (3"), 88.9mm (3-1/2"), 101.6mm (4") and 114.3mm (4-1/2")
  • Latch Sizes: 25.4mm x 57.15mm (1" x 2-1/4"), 28.57mm x 57.15mm (1-1/8" x 2-1/4") and 28.57mm x 69.85mm (1-1/8" x 2-3/4")
  • Compatible Door Thickness: 34.9mm (1-3/8") and 44.5mm (1-3/4") Doors

Please Note: this product is only for use with doors, do not for use when routing door hinges on jamb/frames.
