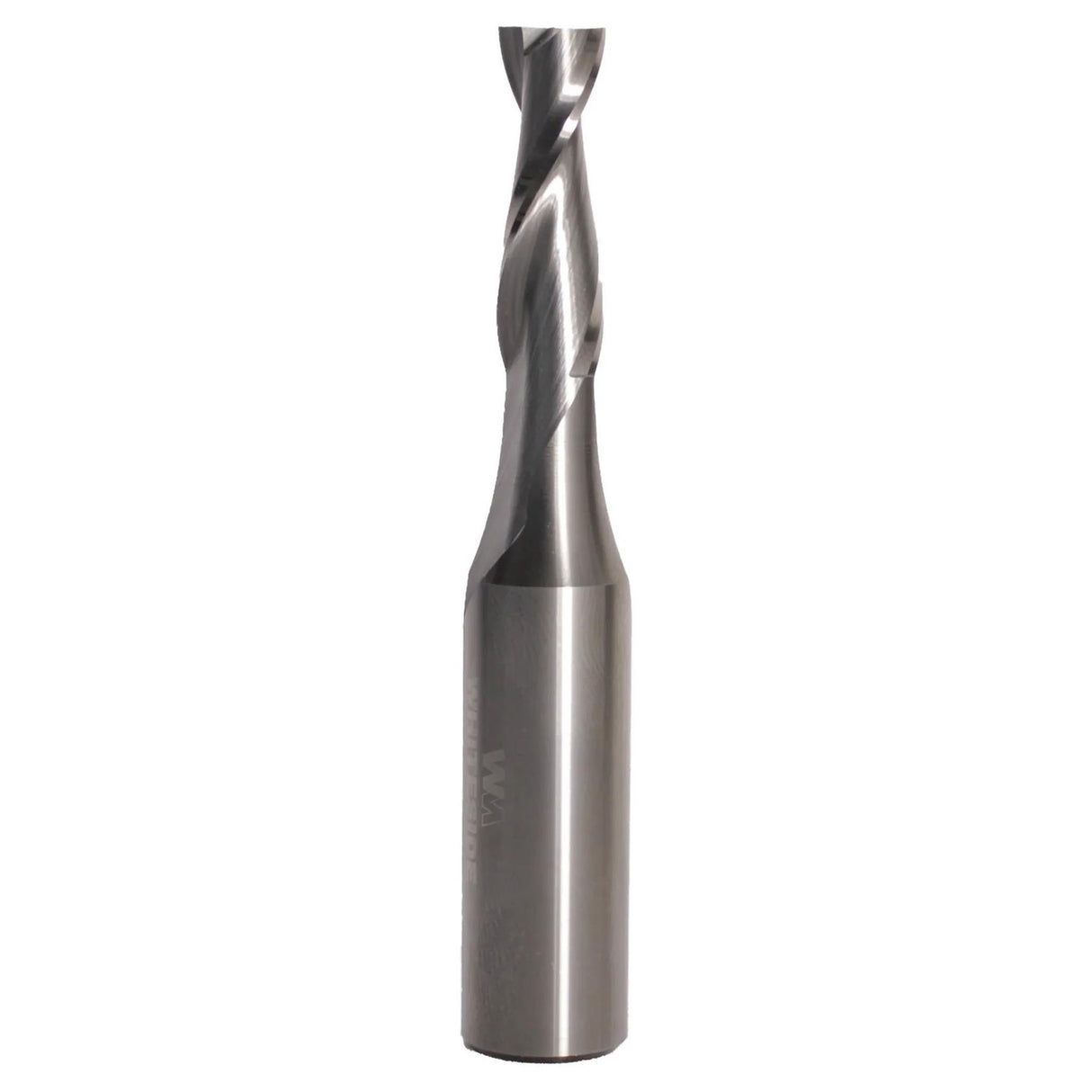

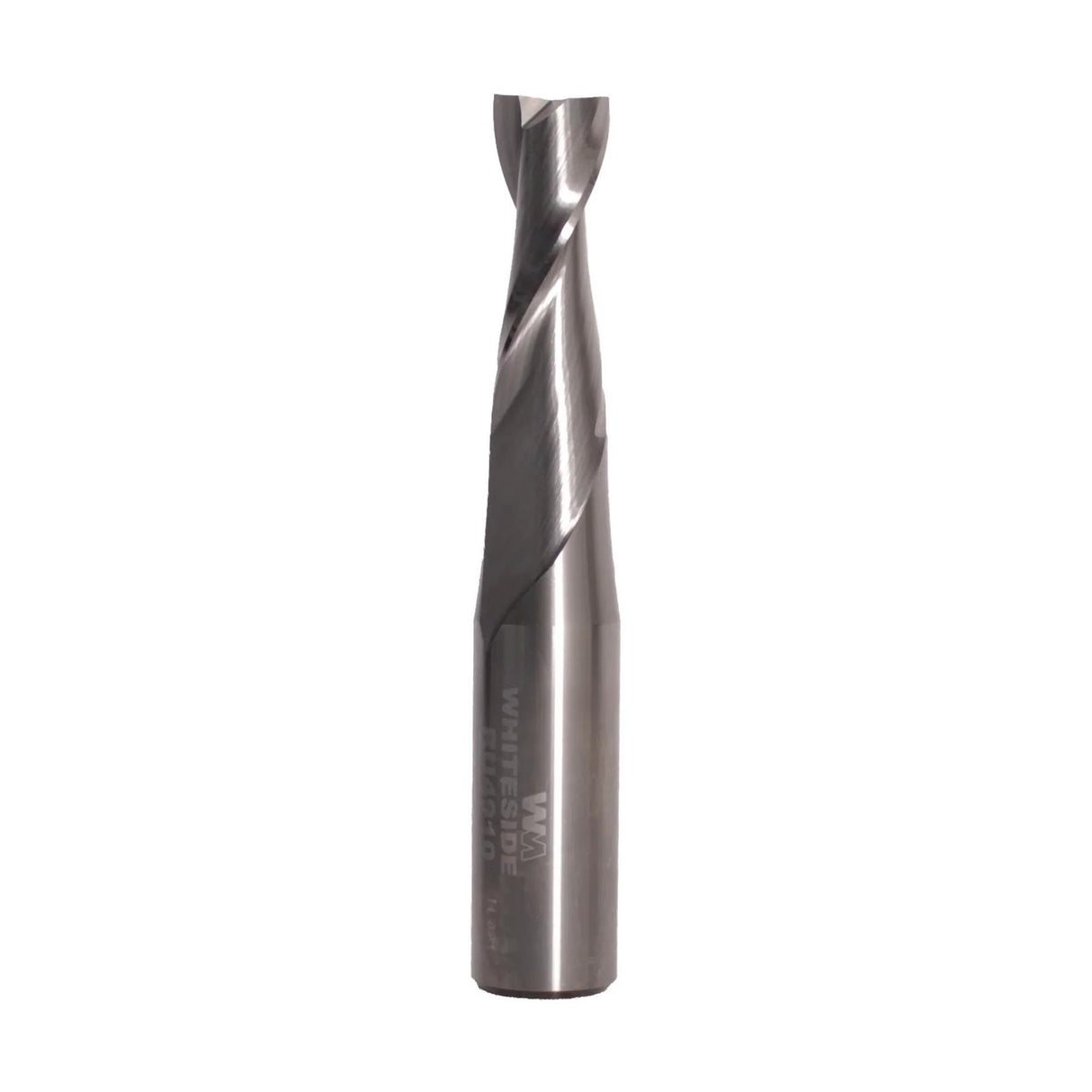

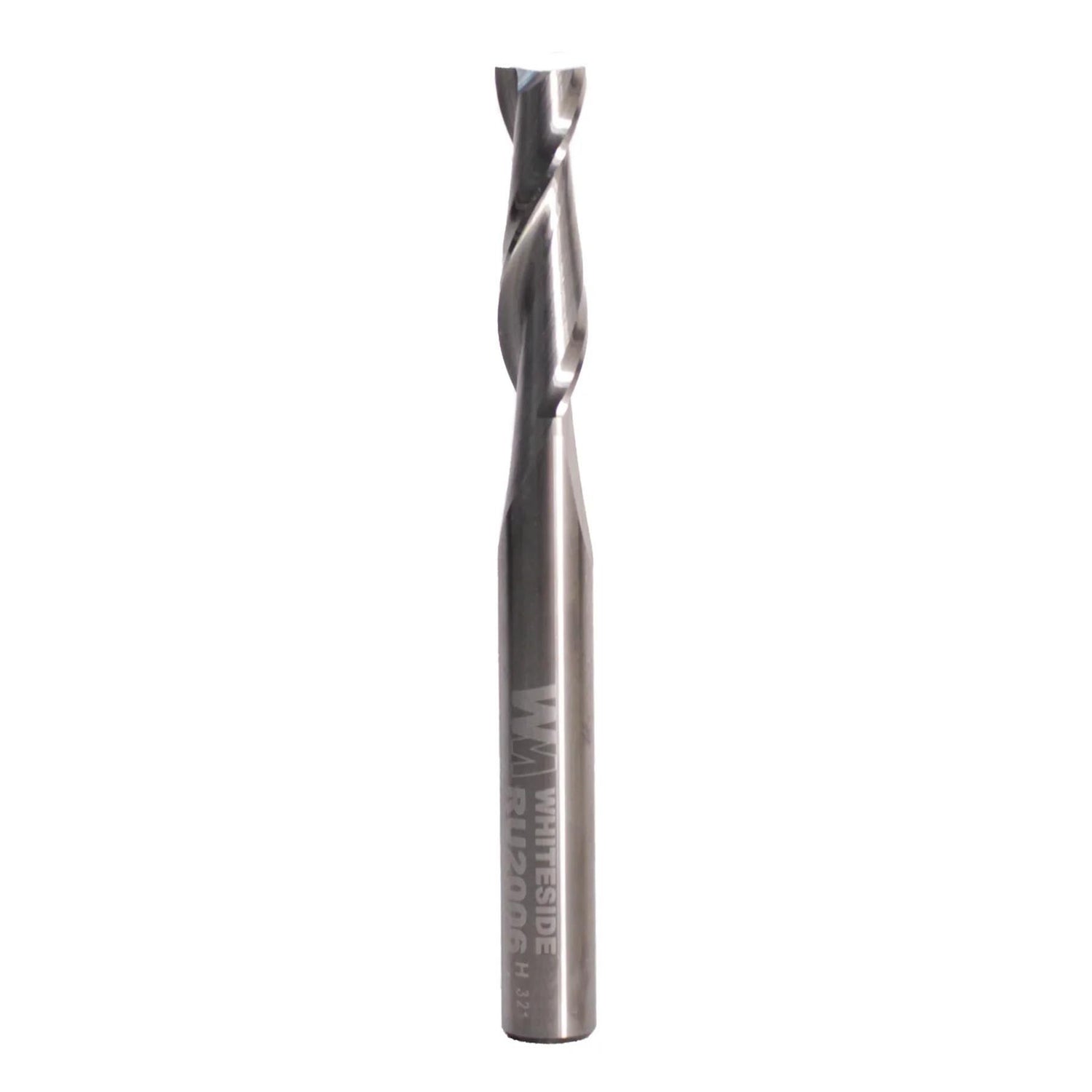

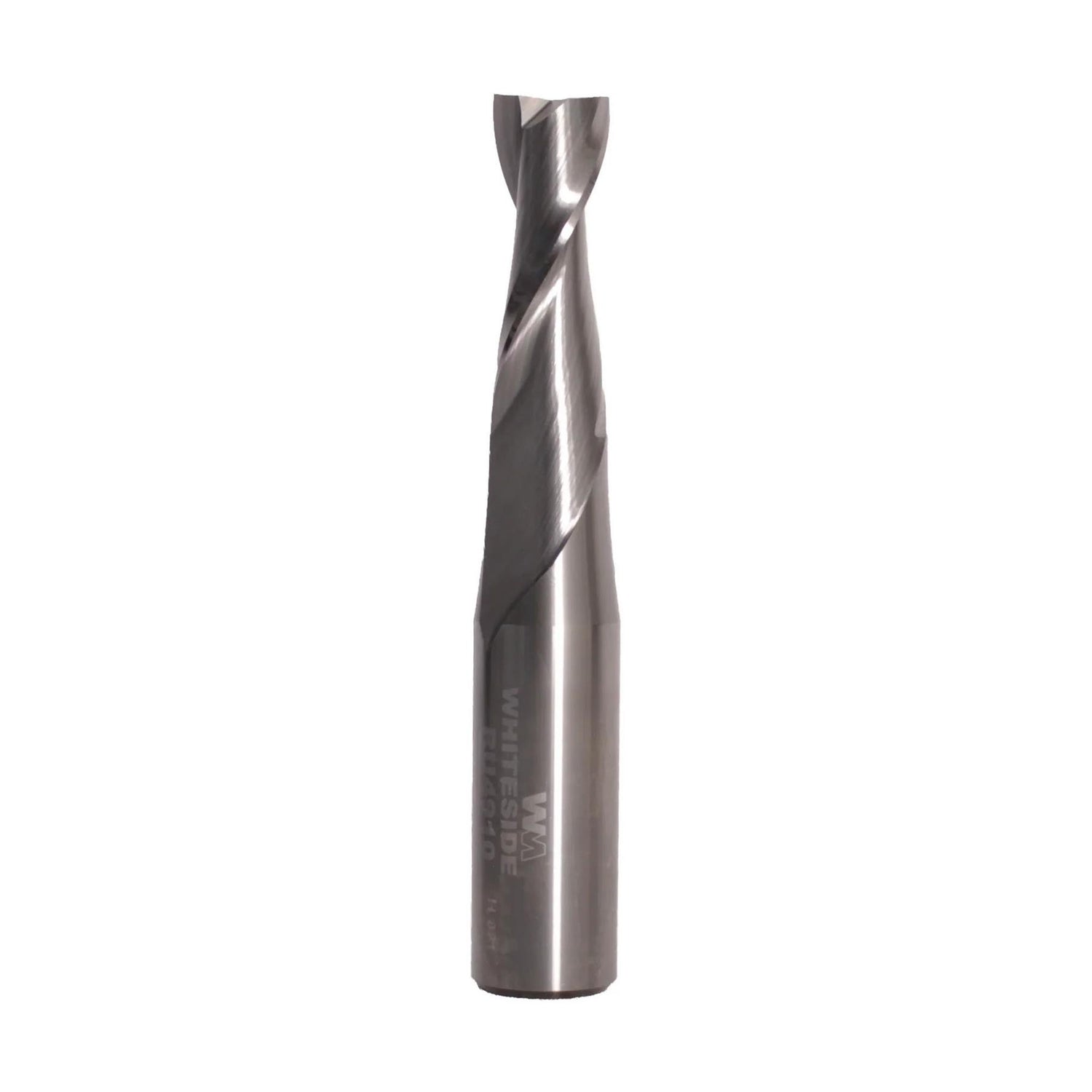

Whiteside Up-Cut Spiral Router Bit Set
Achieve quality, accurate routing with excellent chip evacuation, improved control, and professional- clean cuts across multiple materials, perfect for box joints.
- Warranty: 1 Year & Lifetime Customer Support
- Price Match Promise
- Order by 2pm for Same Day Dispatch – Mon to Fri
- 45 Day Hassle-free Returns
- Worldwide Shipping | No Hidden Costs
Whiteside Up-Cut Spiral Router Bit Set is backordered and will ship as soon as it is back in stock.
Whiteside Up-Cut Spiral Router Bit Set
Product Highlights
Product Highlights

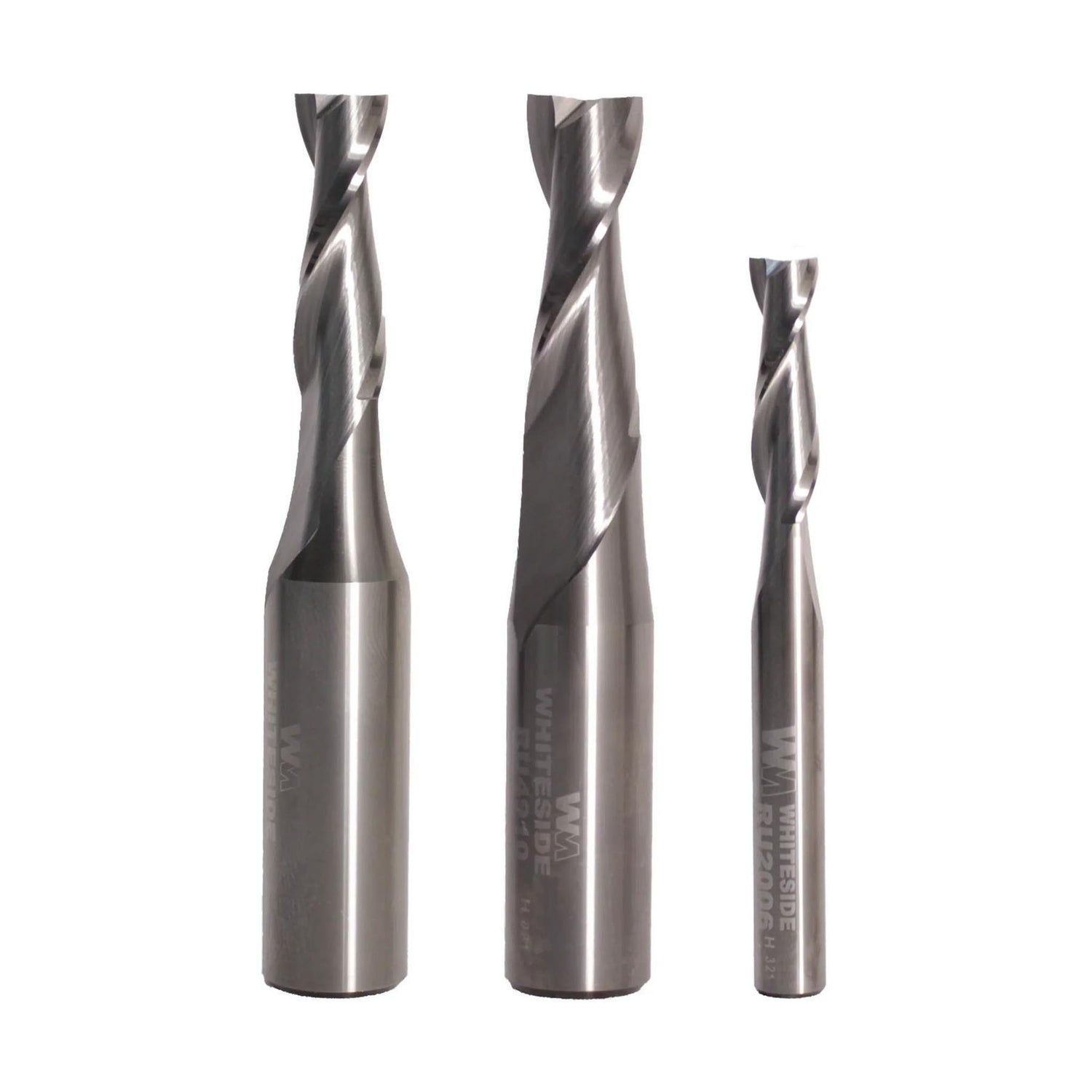

- 6mm, 8mm and 10mm Set
- Solid carbide construction for long life and consistent performance
- Up-cut spiral design promotes efficient chip evacuation
- Produces smooth, accurate cuts with minimal tear-out
- Suitable for hand-held routers, router tables and CNC machines
- Ideal for grooves, dados, slots, pockets, comb or finger joints and plunge routing operations
Description
Description
Whiteside Up-Cut Spiral Router Bits are engineered for woodworkers who demand precision, reliability, and an exceptional surface finish. Manufactured from premium solid carbide, these bits feature a precision-ground up-cut spiral that shears material cleanly while drawing chips away from the cut.
This cutting geometry provides excellent control during hand routing and consistent chip removal when machining grooves, dados, slots, pockets and box joints. By efficiently clearing waste from the cut, heat build-up is reduced and tool life is extended. These router bits perform reliably across hardwoods, softwoods, plywood, MDF, and hard plastics, making them a versatile solution for both workshop and CNC applications.
Specification
Specification
| Cutting Diameter | 6mm, 8mm and 10mm |
| Shank Diameter | 6mm - 1/4" Shank 8mm - 1/2" Shank 10mm - 1/2" Shank |
| Cutting Length | 6mm - 22.2mm (7/8") 8mm - 25.4mm (1") 10mm - 28.6mm (1-1/8") |
| Overall Length | 6mm - 63.5mm (2-1/2") 8mm - 75mm (3") 10mm - 75mm (3") |
| Recommended Speed | 6mm - 18,000–20,000 RPM (maximum 24,000 RPM) 8mm - 18,000–20,000 RPM (maximum 24,000 RPM) 10mm -16,000–18,000 RPM (maximum 24,000 RPM) |
