Harvey Compass Router Table with JessEm Mast-R-Lift II and AUKTools Router Motor 2400W with NVR Switch

The Harvey Compass Router Table system is made up of four separate components, which have then been paired with our own AUKTools Router Motor 2400W with NVR Switch and the JessEm Mast-R-Lift II Router Lift:

Includes

• Harvey Compass RT-800 Cast Iron Router Table Top
• Harvey Compass RF-36 Router Table Fence (Metric)
• Harvey Dust Collector Cabinet for Compass Router Table
• Harvey Compass RT-S Router Table Floor Stand
• JessEm Mast-R-Lift II
• AUKTools Router Motor 2400W with Speed Control NVR Switch

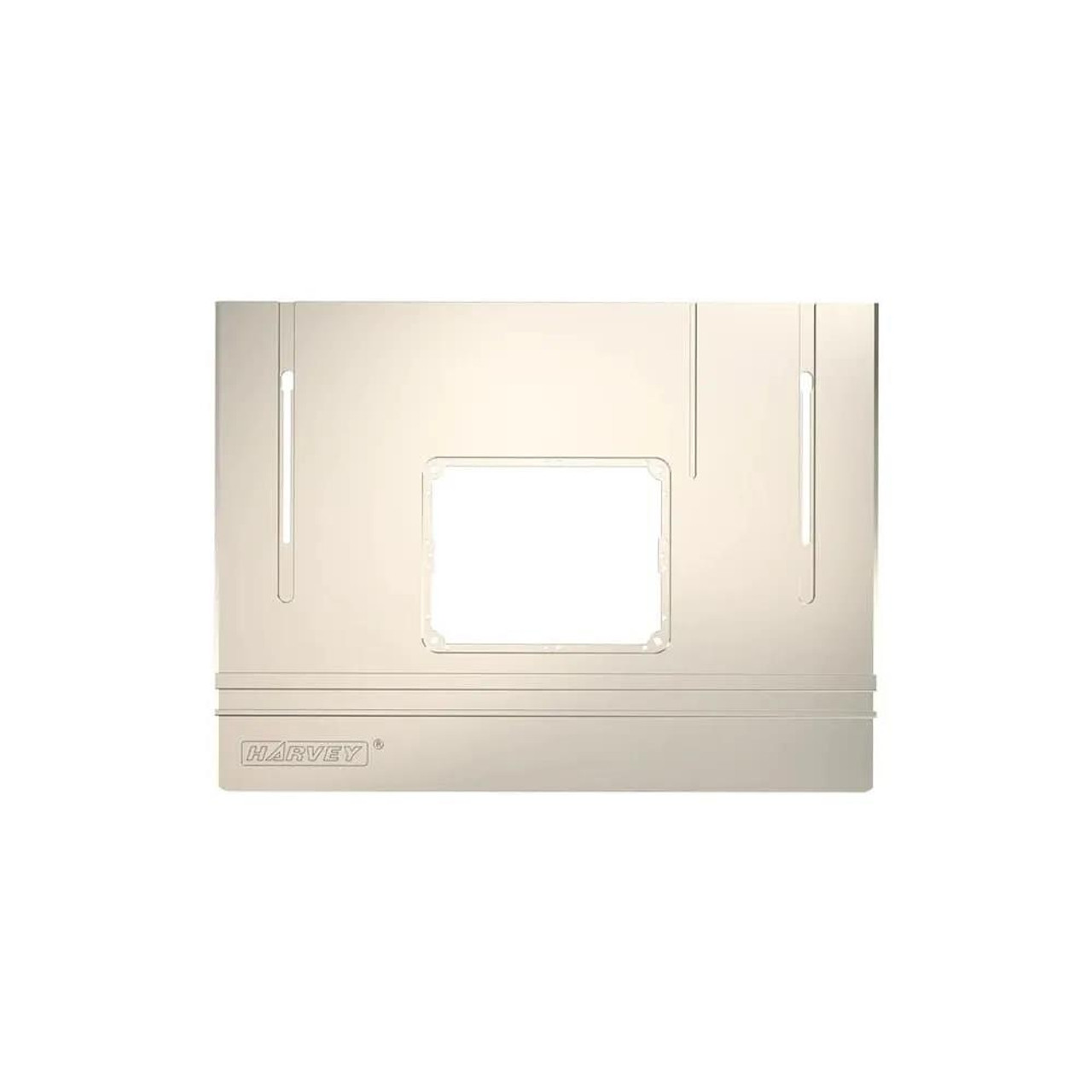

Harvey Compass RT-800 Cast Iron Router Table Top

This robust table combines the enduring reliability of cast iron with the advanced technique of nickel-plating, ensuring a workshop essential that stands the test of time and use.

The hardened nickel-plated table surface considerably improves the wear resistance. Extensive friction tests, using wooden blocks, consistently demonstrated that the nickel layer was extremely effective at protecting the table surface.

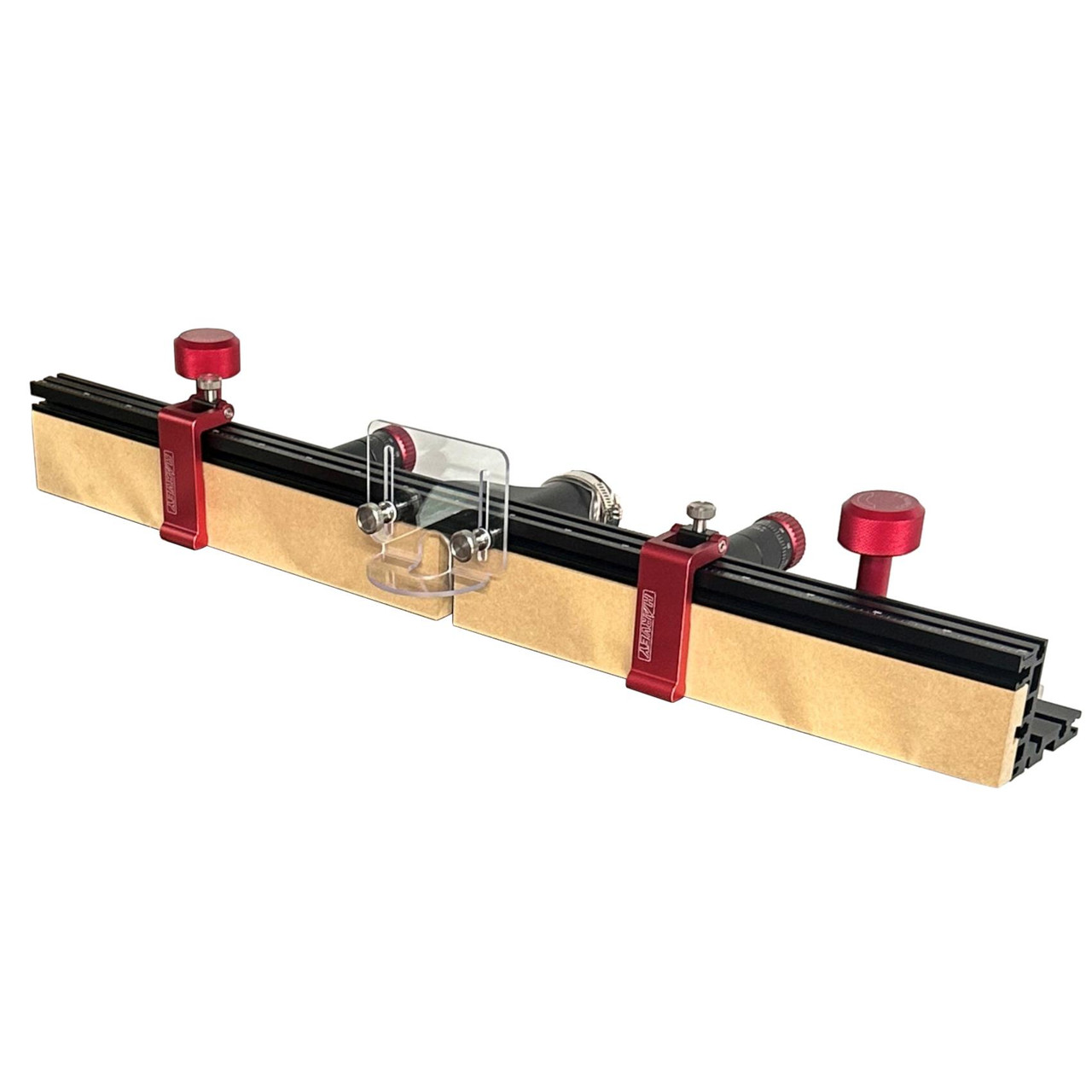

Harvey Compass RF-36 Router Table Fence (Metric)

The RF-36 fence is built with a special “Dual Fine-Tuning” Mechanism. This allows for fine adjustments of both the Fence In-line Position and outfeed Fence offset position. With very high accuracy and ease of use, these design features increase the ability to tune the router table to suit your project.

In addition, the RF-36 fence is equipped with two flip over stops for cutting length control. The dust port is aerodynamically optimized ensuring the best dust collection efficiency.

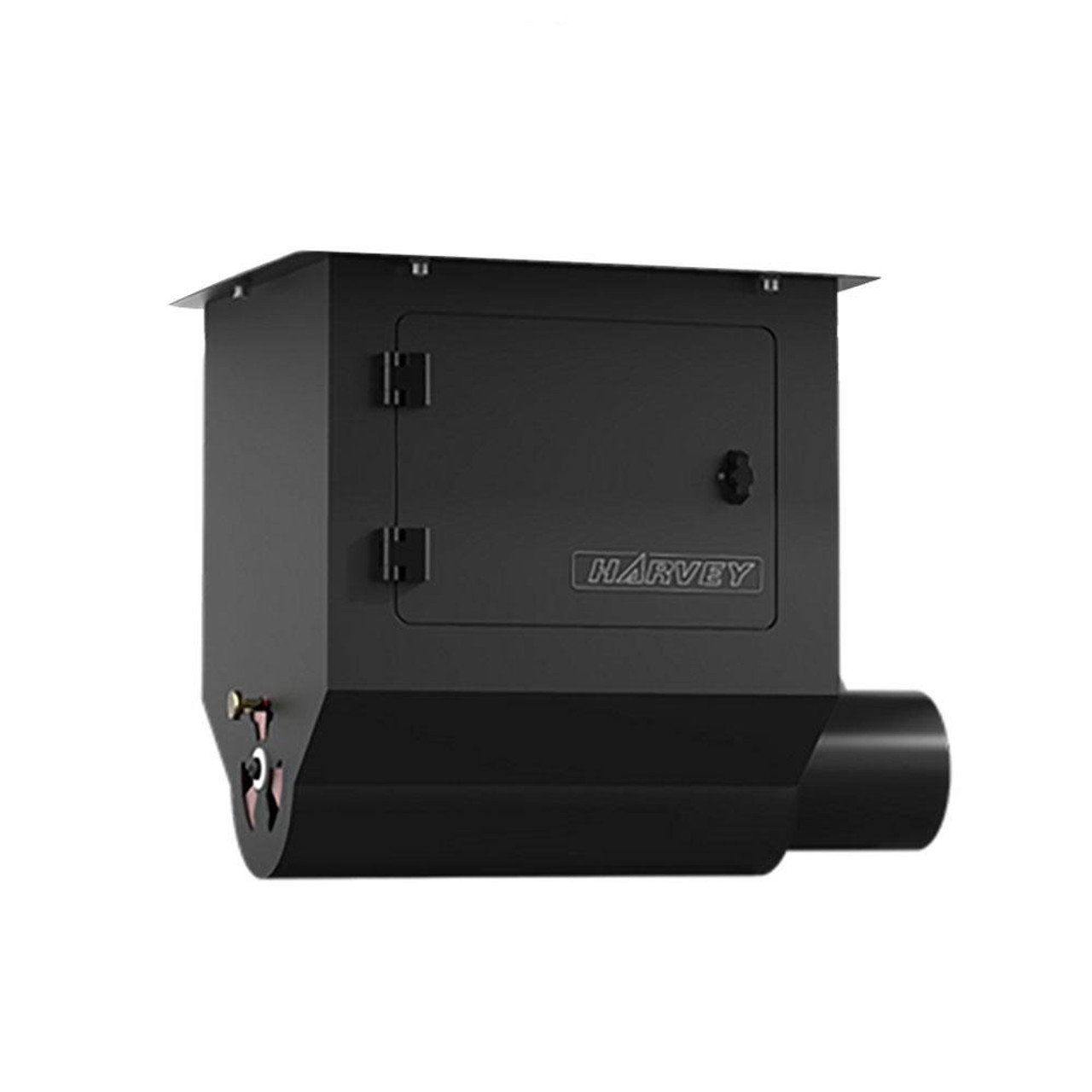

Harvey Dust Collector Cabinet for Compass Router Table

The Harvey Dust Collector Cabinet is equipped with a 100mm (4″) diameter dust port with a T-piece branching to a 63mm Inlet. When using as part of the complete router table package it will work in conjunction with the 63mm (2.5″) outlet on the Harvey Compass RF-36 Router Table Fence (Metric), combining them into a single collection point.

Harvey Compass RT-S Router Table Floor Stand

Designed to provide exceptional convenience and stability, this stand takes routing to a new level of efficiency. With its sleek design and reliable performance, the Harvey Compass RT-S Router Table Floor Stand is the perfect companion Harvey router table system.

Crafted from specially designed aluminium profiles, the stand strikes a balance between lightweight construction and exceptional strength. The stand has a load capacity of 150kg, so stability under heavy loads is guaranteed.

A press of the single foot pedal lowers the wheels and lifts the stand. The linkage mechanism raises the stand in a horizontal manner without any tipping. Another press of the pedal lowers the stand again.

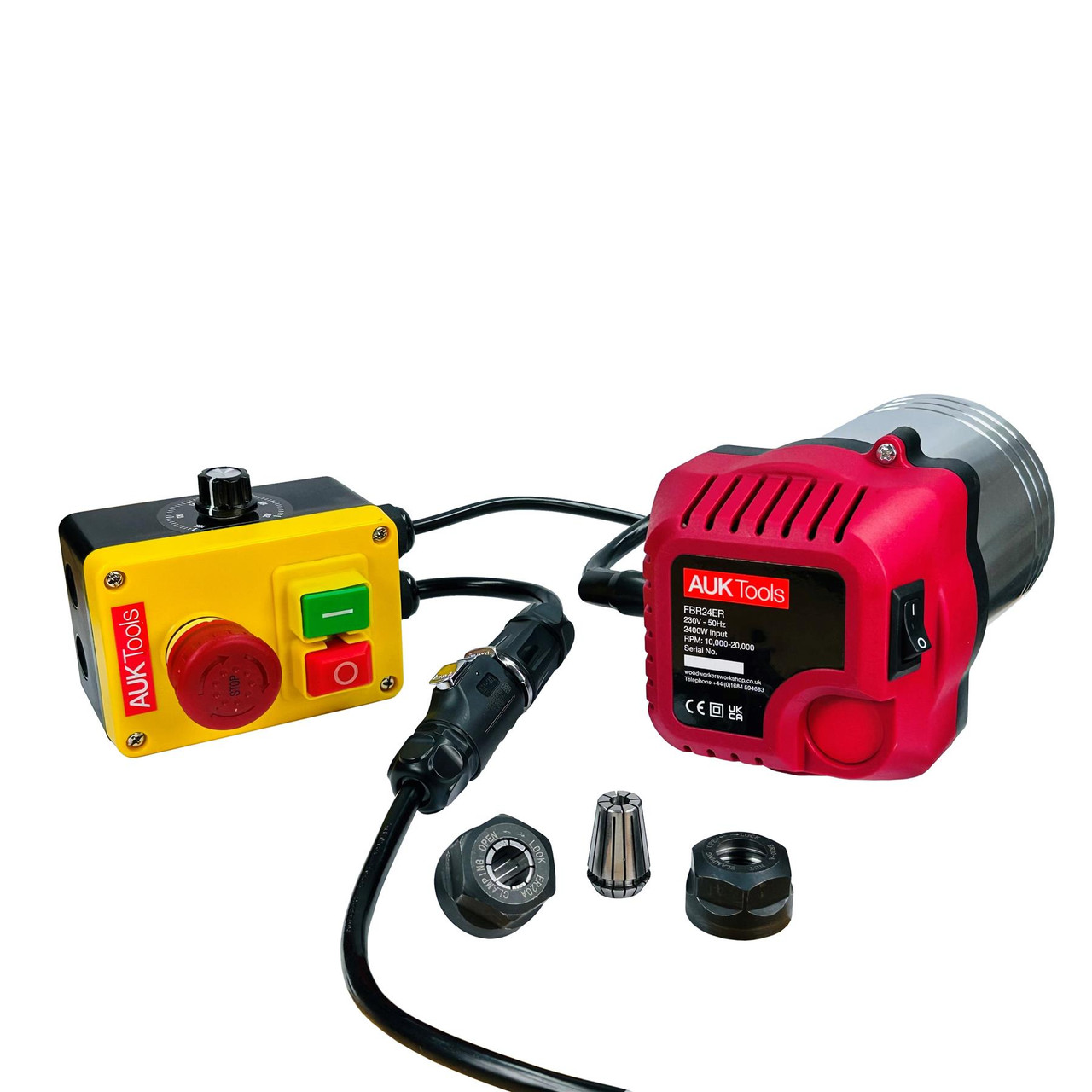

AUKTools Router Motor 2400W with Speed Control NVR Switch

This high quality 2400W motor, designed to run on 230V power offers variable speed control between 10,000 to 20,000 RPM with premium ER20 collets for increased cutter grip with reduced runout, extending cutter and bearing life. The quiet running high torque motor features two of the best bearings in its class and tackles the most demanding of timbers with ease for safe and reliable router table work. With a unique pre-wired variable speed remote control unit, isolator and NVR (No Volt Release) switch.

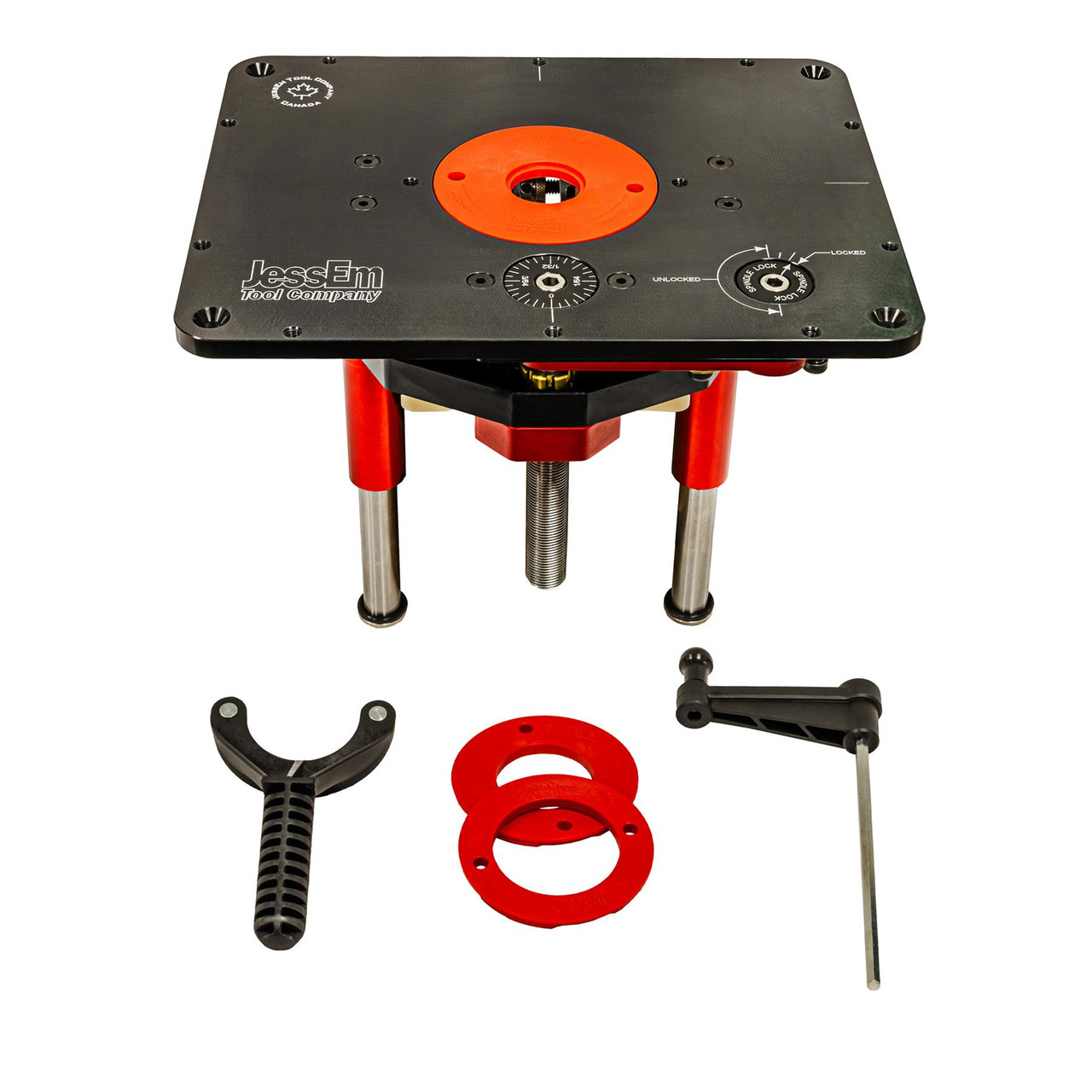

JessEm Mast-R-Lift II

JessEm Mast-R-Lift II is a premium metric router lift, set within a 9.5mm aluminium plate that fits our AUKTools fixed based router as part of a separate package.

The direct-drive rise and fall mechanism works via a metric screw and gives endless years of accurate and reliable service, without the issues associated with a poorer quality belt or chain-driven drives that tend to clog, work loose and snap over time.

Make life easier! No more scrambling under the table trying to push your router up - all our American-style router lifts allow for height adjustment of the router and cutter changing from above the table.
