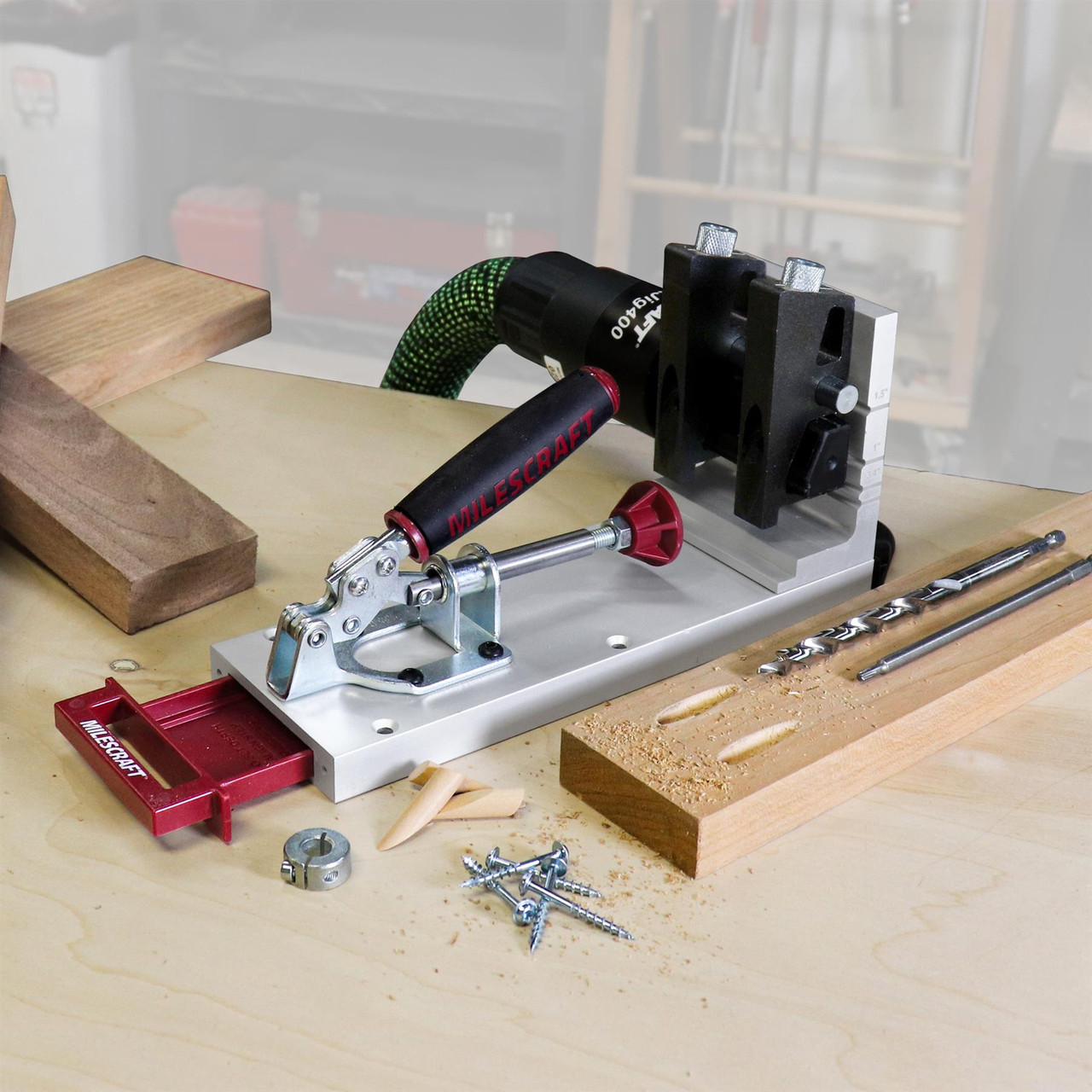

Milescraft PocketJig400

£95.95 Inc. VAT
£79.96 Excl. VAT
SKU:
MC1327
View Product Description
scroll

Solid aluminium construction ensures accurate pocket holes and a long product life. The hardened steel bushings, dust extraction, and sleek design will make this your go-to for pocket hole joints going forward.

Features

  • Height adjustable bushing blocks contain two 3/8" steel drill guides that can be repositioned for drilling boards from 1/2” up to 1-1/2” thick
  • Drill guides adjust horizontally to position holes between 3/4” and 3” apart
  • Removable dust extraction works with common 2-1/2” and 27/32mm hoses
  • All-steel toggle clamp with micro-adjust non-marring clamp-head dials in perfect clamping pressure for different board thicknesses
  • Convenient storage drawer holds bit, driver, depth stops, and more
  • L-Base can be removed from the main body and used for mobile pocket hole projects and repairs

Includes

  • 1 x Main Jig Body with Toggle Clamp
  • 1 x Removeable L-shaped Clamping Wall
  • 2 x Solid Steel Drill Guides
  • 1 x Removeable Dust Port
  • 1 x 3/8” (9.5mm) PocketBit™
  • 1 x 6” (150mm) Magnetic T20 Torx® Driver
  • 1 x 3mm Allen Key
  • 1 x 3/8” (9.5mm) Split-Design Depth Stop
  • 10 x Pocket Hole Plugs
  • 4 x Mounting Screws
  • 60 x T20 Pocket Hole Screws
    • 10 x 1” (25mm) Course Thread
    • 10 x 1-1/4” (32mm) Course Thread
    • 10 x 1-1/2” (38mm) Course Thread
    • 10 x 2” (50mm) Course Thread
    • 10 x 2-1/2” (63mm) Course Thread
    • 10 x 1-1/4” (32mm) Fine Thread
