AUKTools Pure Air System Dust Box

The AUKTools Pure Air System Dust Box is the ultimate dust collection system for router tables, removing dust simultaneously at the source above and below the cutter. Simply fix to the underneath of your router table, connect it to your router fence and dust extractor for a cleaner workshop and healthier, purified air.

The rear extraction port comes with a 63mm (2.5") connector on the upper section for convenient fence extraction, leading to a lower 100mm (4") dust port connector for optimal dust collection.

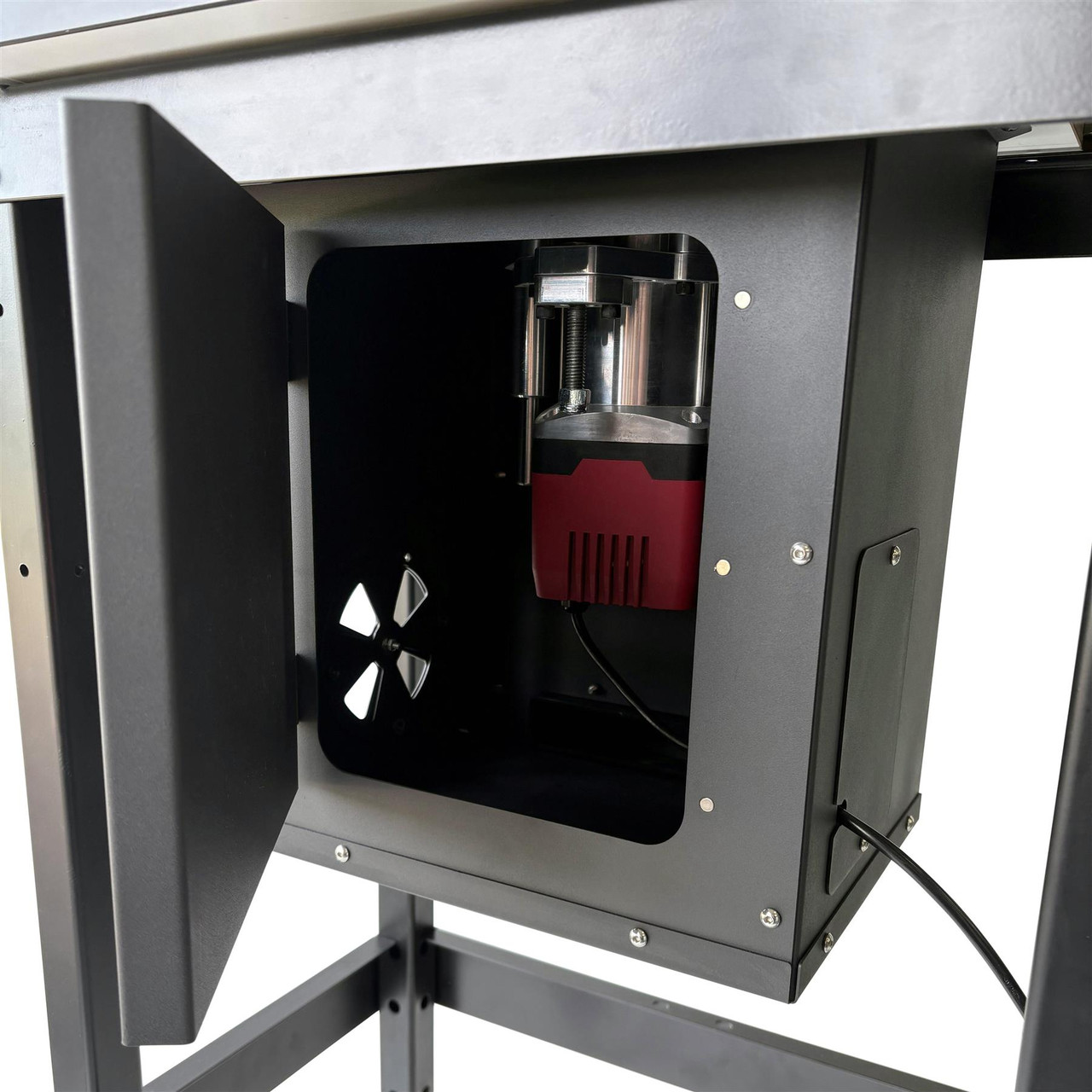

Easy access to your router via the hinged front door, which is held closed by magnets to the heavy-duty, powder-coated steel cabinet. The right side of the box has a removable opening to allow cables and NVR switches to be fed through, and the left side has an external vent to regulate the balance of air intake for controlled dust extraction. Fits all common lifts, routers and tables for improved air quality and a quieter workshop.

The AUKTools Pure Air System Dust Box has been designed for optimal use with the AUKTools Router Motor 2400W. A unique, removable built-in air cover in the base of the unit allows pure air intake to the router. The addition of the AUKTools Pure Air System Dust Hood and Hose create the 'AUKTools Pure Air System', allowing the AUKTools Router Motor to intake clean, fresh air, improving the cooling and longevity of the motor when used within a dust enclosure.

Technical Note

The AUKTools Pure Air Syste Dust Box is intended for use with conventional woodworking dust/chip collectors rated at approximately 350 CFM (165 litres/sec) or greater, with a minimum 100mm (4") inlet diameter.

Note: Router dust boxes are not compatible with standard 63mm (2-1/2”) wet/dry shop vacuums.

Features

• Dust control above and below the table
• Improved workshop air quality
• Fits common lifts, routers and tables
• Noise reduction
• Regulated air intake

Specifications

• Heavy-duty powder-coated steel cabinet
• Cabinet weight: 6 kg
• Hinged door: 252mm (H) x 205mm (W) with magnetic latch
• Extraction port: 63mm (2.5") in / 100mm (4") out
• NVR switch and cable access panel
• Overall size: 380mm (H) x 320mm (W) x 400mm (D)
