Cabinetry Jigs  |  Woodpeckers  |  SKU: WPSPT2

Woodpeckers Shelf Pin and Drawer Slide Template - Standard

£149.95
EMPTY DOM REMOVE PROTECTOR

Pre-order now — contact us for current lead time

EMPTY DOM REMOVE PROTECTOR
4.9/5 based on 6235

Woodpeckers Shelf Pin and Drawer Slide Template - Standard is backordered and will ship as soon as it is back in stock.

Description

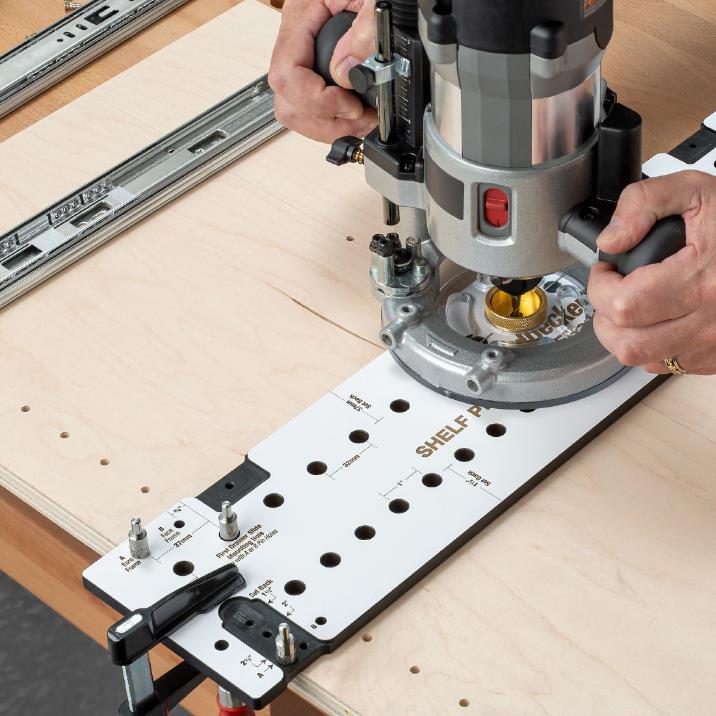

Woodpeckers Shelf Pin and Drawer Slide Template is the ultimate tool for setting out shelf and drawer spacing. If you are making a face frame cabinet by simply repositioning a pair of spacers you can offset the shelf pins 1-1/2", 2" or 2-1/2" from the edge of your material. If your row of holes extends further than the length of the template, just move the template up, slip a couple of indexing pins in completed holes and keep on drilling.

The same 1-1/2", 2" and 2-1/2" offsets can be achieved in installed cabinets, too. The offset spacers for finished cabinets butt up to the inside of your face frame and the back of the cabinet. Everything is mirror imaged, so right, left, top and bottom all line up perfectly, every time.

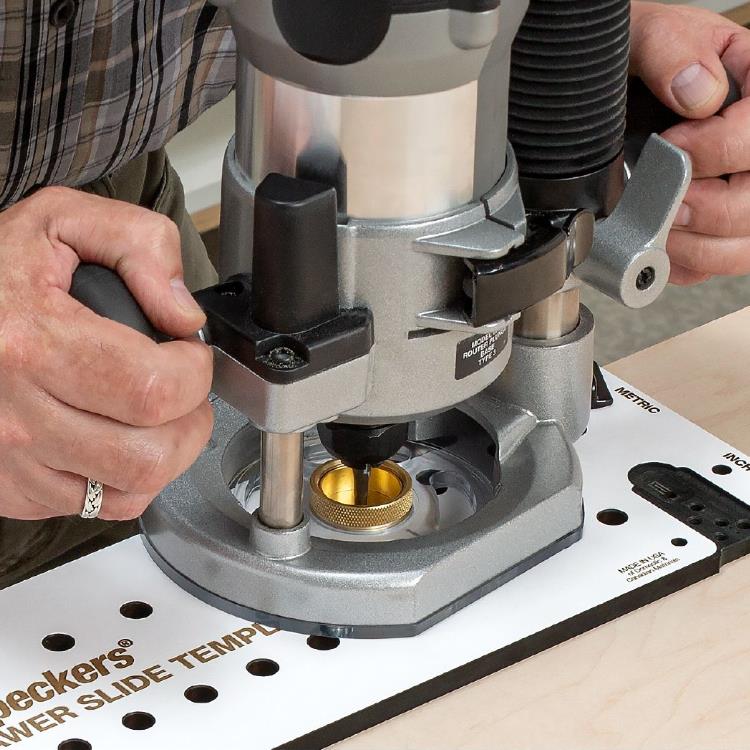

If you're working on frameless Euro-style cabinets, the 37mm offset from the front and bottom of the cabinet is built into the jig. The 5mm holes on 32mm centres work with hundreds of different shelf pin styles from around the world and are perfect for a combination of shelves and drawers when using 5mm Euro mounting screws.

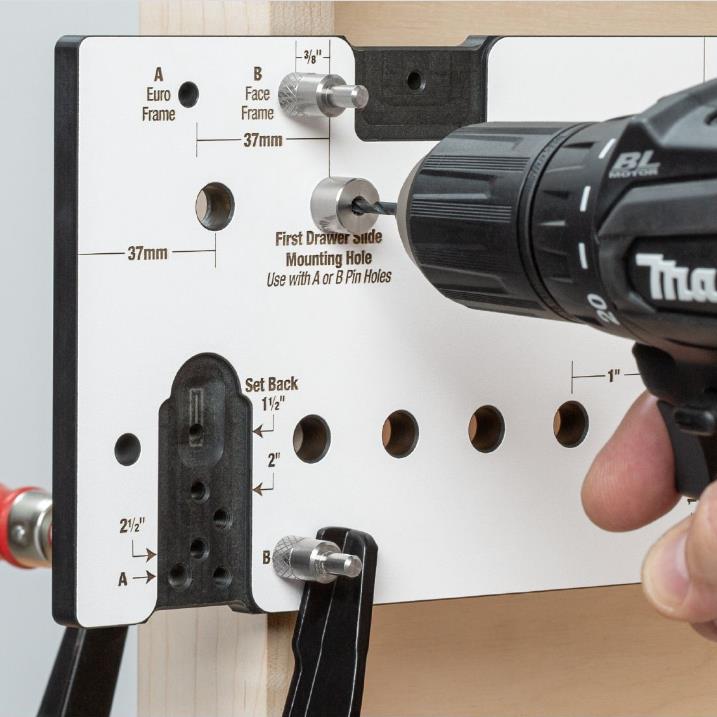

Speaking of drawers, the template can be used to drill holes for ball-bearing extension slides used in frameless cabinets. You can use Euro mounting screws in 5mm holes or use the included guide bushing to drill pilot holes for standard wood screws.

Drawer slides that mount to the face frame are just as easy. Just move the edge guide pins, pop in the drill guide bushing and you’re perfectly positioned on the edge of your frame stock for the front of the drawer slide.

The Shelf Pin and Drawer Slide Template is machined from solid phenolic with a layer of easy-reading white bonded to the top and bottom. Each setting and spacing is clearly marked on the face of the template to keep you on the right track. The set-back spacers and index pins are made from stainless steel and only fit in their appropriate positions. The overall dimensions of the Shelf Pin and Drawer Slide Template are 584mm x 127mm x 9.5mm (23" x 5" x 3/8").

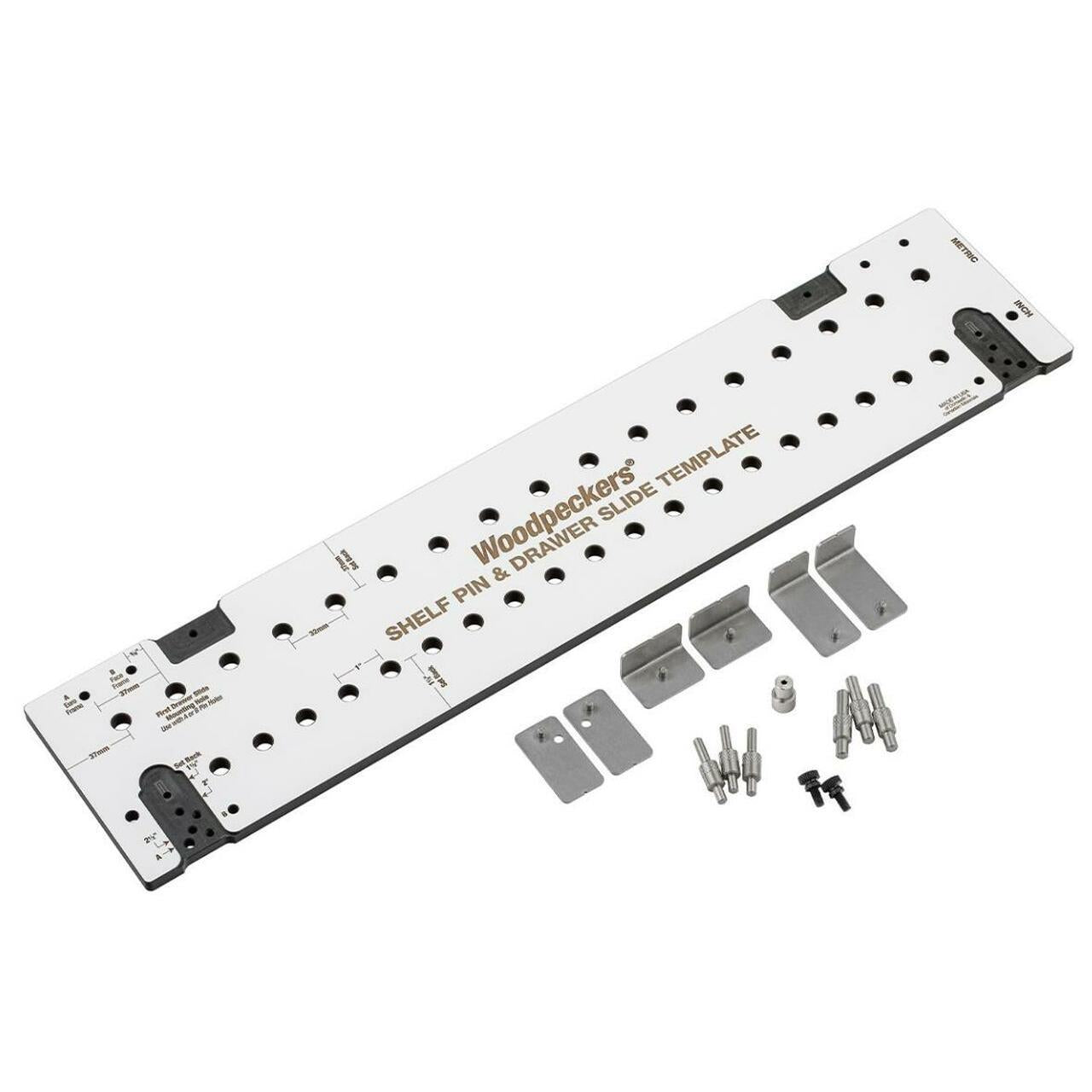

The Shelf Pin & Drawer Slide Template Standard includes the template, inside face frame spacers, outside face frame spacers, frameless spacers, 1/4" index pins, 5mm index pins, nylon spacer locking screws and a 7/64" drill guide bushing.

Please note: Images for illustrative purposes only.

Delivery & Returns

Same-Day Dispatch

Orders placed before 2pm (Monday–Friday) are usually dispatched the same day. All deliveries are fully trackable.

UK Mainland Delivery Options

Service Delivery Time / Notes Price
FREE UK Delivery 2–3 days – orders over £90 FREE
Economy Delivery 2–3 days £4.50
Standard Delivery 1–2 days £5.95
Express Next Day Next working day (order before 2pm, Mon–Thu) £7.99
Express Pre-1pm Next working day before 1pm (order before 2pm, Mon–Thu) £15.95
Saturday Delivery Saturday (order before 2pm, Fri) £19.95
Click & Collect Collection available: 9am–4:30pm, Mon–Fri FREE

Important information

  • Express Pre-1pm and Saturday services aren’t available to Northern Ireland, Scottish Highlands, Islands or remote postcodes — Express Next Day takes 2 days and other services may be slower.
  • Large or heavy items may not qualify for Express Pre-1pm or Saturday delivery to your area — we’ll contact you if this applies.
  • Click & Collect – Collection available after you receive “Ready for Pickup” email — most orders before 2pm are same day.

International Delivery

We ship worldwide to over 200 countries. No hidden costs — all duties and taxes are calculated at checkout.

Harvey Machines & SawStop Delivery

Harvey Machines and SawStop products are shipped directly. Once your order has been placed, delivery confirmation and tracking details will be provided by the manufacturer.

View delivery information

Hassle-free Returns

All orders are covered by our 45-day Hassle-free Returns guarantee.

View returns information

More Tools in This Range

View all

We are Wood Workers Workshop

We are a family business, run by woodworkers for woodworkers, delivering 5-star customer service since 1999.

Stocking a wide range of woodworking tools from leading brands: AUKTools, Milescraft, INCRA, iGaging, JessEm, Woodpeckers, FastCap, Verum & more.

Find out more
  • 5 stars: 2 (100%)
  • 4 stars: 0 (0%)
  • 3 stars: 0 (0%)
  • 2 stars: 0 (0%)
  • 1 star: 0 (0%)
T
Terry Lindop
Woodpecker Self-pin jig. Good design, well made, easy to use and speeds the job up

I've used a couple of shelf pin guides over the years. I bought this one because the others broke. This one is extremely well-made and because of its design, using the 5mm centered drill piece there's no friction when drilling through the pre-drilled holes.
It's sturdy, unlike the others I've used, so easy to keep in position when drilling, and makes a neat job. It speeds up the process of making bespoke cabinets.
Very pleased with the jig

a
alistair mackenzie
Easy to use

Awesome bit of kit for building your own units , easy to set up as instructions supplied are very clear on how to use ,I was missing a part upon opening the box so I called and said what part , the fella I spoke with couldn't have been more helpful ... the missing part was sent out and received 24hrs later, 1st class service well impressed with jig and service
