Authorised Dealer  |  Milescraft  |  SKU: MC1219

Milescraft CircleGuideKit (Imperial)

Regular price £57.95
Tax included

Turn your existing router into a circle-cutting system with the Milescraft CircleGuideKit™, routing small inlays to large table tops with ease and accuracy.

No specialist tools needed — just your router and this complete kit, ready to use straight out of the box.

  • Warranty: 1 Year & Lifetime Customer Support
  • Price Match Promise
  • Order by 2pm for Same Day Dispatch – Mon to Fri
  • UK Delivery from £4.50 | FREE over £85
  • UK Next Day Delivery Available
  • Click & Collect Available
  • 45 Day Hassle-free Returns
  • Worldwide Shipping | No Hidden Costs

Product Highlights

  • Cut smooth, repeatable circles from 1-1/2" (38mm) up to 52" (1320mm) with confidence
  • Use the router you already own — universal TurnLock™ base plate fits most models
  • Set exact inside and outside diameters quickly with integrated imperial & metric scales
  • Rigid aluminium beam resists flex, keeping large cuts accurate and consistent
  • 13" (330mm) Offset Base improves balance and safety when edge routing
  • Ready to use with a 1/4" shanked router bit, guide bushing, centring pins - all included

Description

The Milescraft CircleGuideKit™ is designed for woodworkers who need smooth, repeatable results when cutting circles of all sizes. Using your own router, you can cut anything from small 1-1/2" (38mm) inlays right up to 52" (1320mm) table tops with accuracy and ease.

The rigid aluminium beam provides strength and stability, while built-in scales and a clear readout window let you dial in precise inside or outside diameters without guesswork. Setup is quick thanks to the TurnLock™ universal base plate, and the included 13" (330mm) Offset Base adds extra balance when trimming or routing along edges.

Precision & Control

Versatile Cutting Range

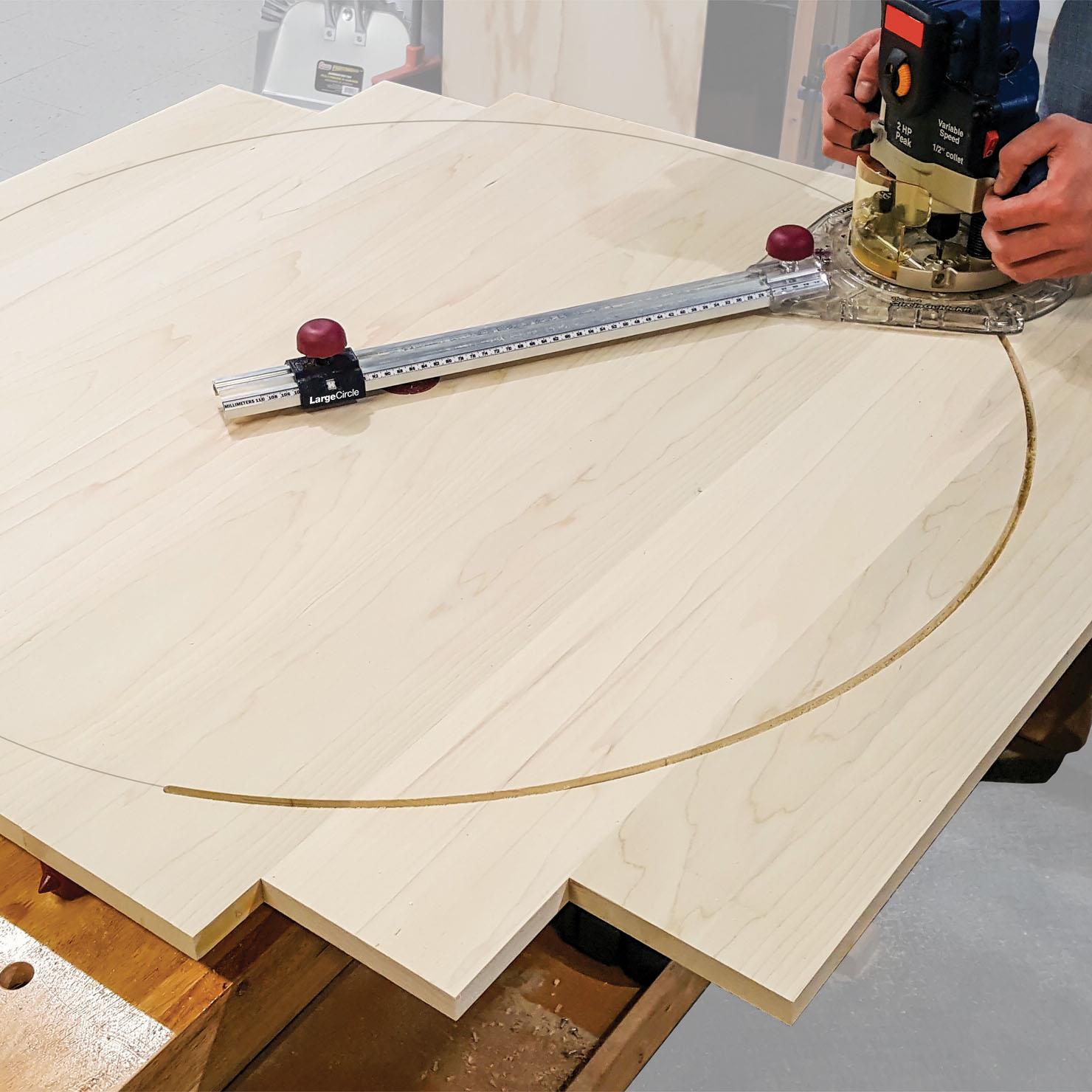

Two jigs included: a small jig for circles 1-1/2" to 12" (38–305mm), and a large jig for circles 10" to 52" (254–1320mm). Perfect for everything from decorative panels to full round tables.

Clear Scale & Readout
The integrated scales and readout window make it easy to set exact diameters for both inside and outside cuts — no trial and error required.

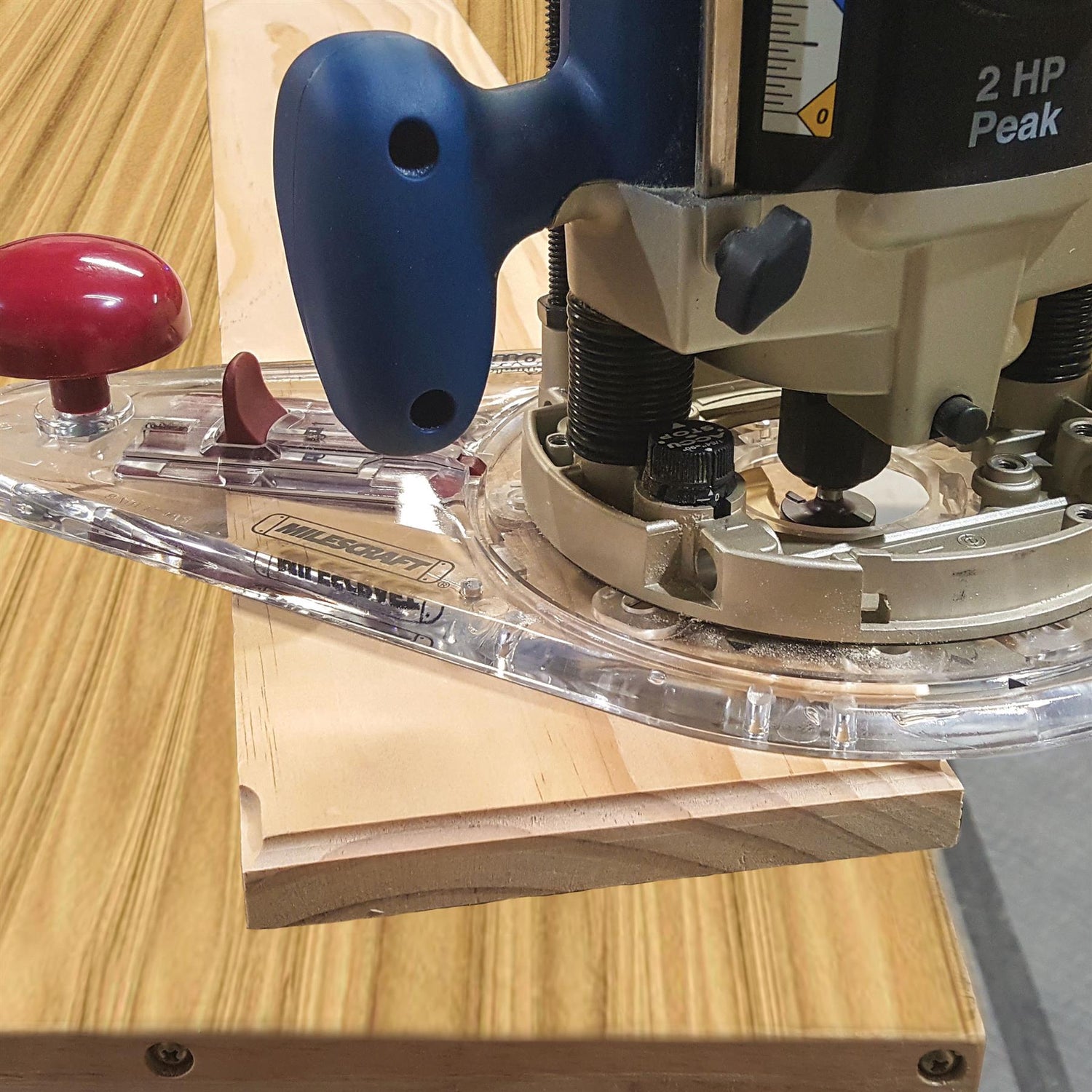

Edge Routing Stability
When working along edges, the 13" (330mm) Offset Base helps keep the router stable and under control.

Build Quality & Design

Aluminium Beam Strength
The robust aluminium beam prevents flex, delivering clean arcs and true circles even at maximum diameter.

TurnLock™ Convenience
The 7" (178mm) TurnLock™ polycarbonate base plate accepts all Milescraft bushings and allows for fast, tool-free changes.

Quick Attachment Changes
A thumb-activated lock/release mechanism makes bushing swaps safe, secure, and effortless.

Compatibility & Ease of Use

Router Compatibility
Designed to work with most popular routers; for best results, a plunge router is recommended.

Ready Out of the Box
Kit includes a 1/4" (6.35mm) shank carbide bit, guide bushing, centring pins, drill bit, and mounting screws so you can get started immediately.

Specification

Circle Range (Small Jig) 1-1/2" to 12" (38–305mm) diameter
Circle Range (Large Jig) 10" to 52" (254–1320mm) diameter
Beam Rigid aluminium with built-in imperial & metric scales
Base Plate 7" (178mm) TurnLock™ polycarbonate base — accepts all Milescraft bushings
Offset Base 13" (330mm) for edge stability
Guide Bushing 5/8" (15.9mm) long metal nose
Router Bit 1/4" (6.35mm) straight carbide-tipped bit with 1/4" (6.35mm) shank
Drill Bit 3/32" (2.4mm) brad point
Centring Pins 1/4" (6.35mm) and 1/2" (12.7mm)
Mounting Hardware 6 × mounting screws

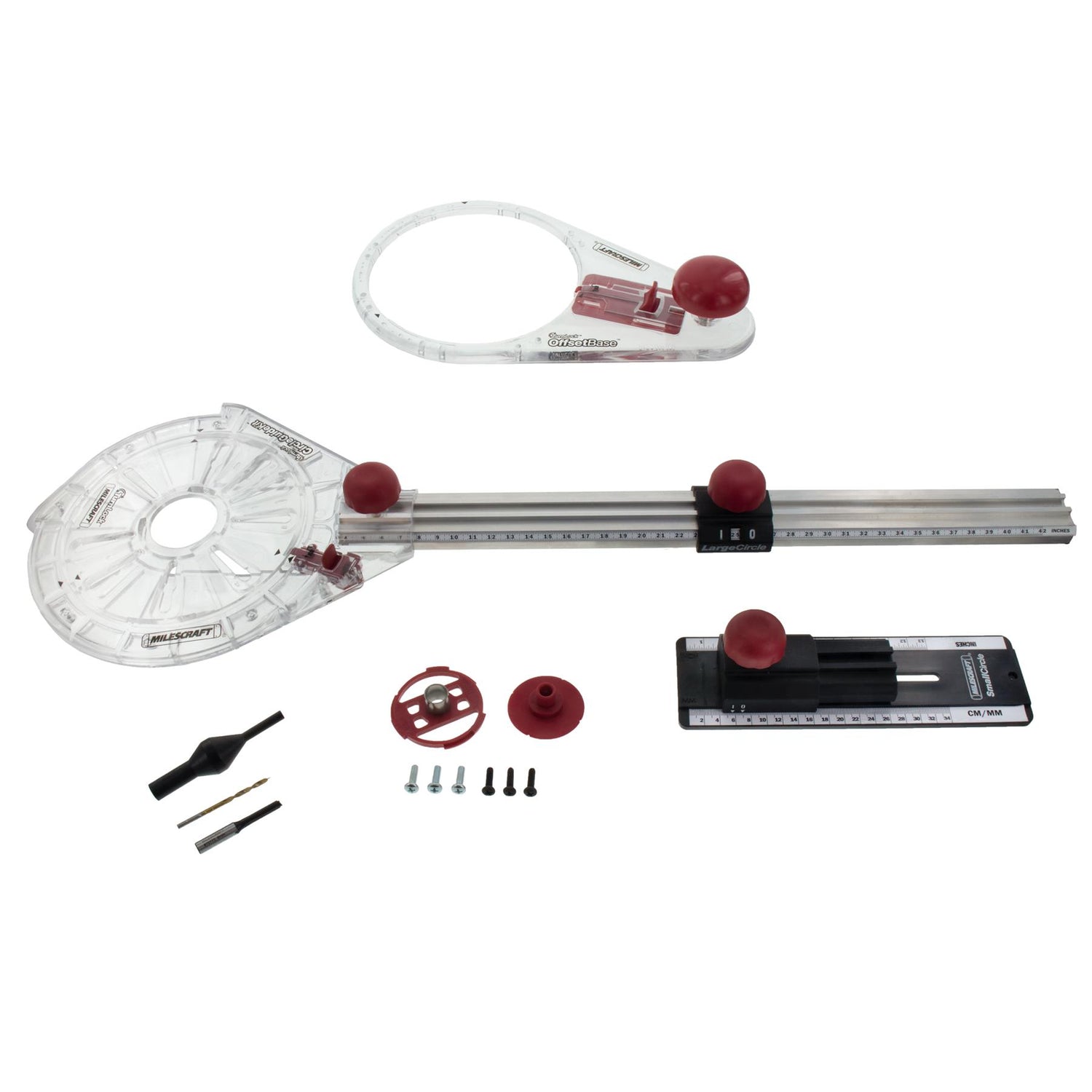

What's in the Box

  • 1 × Small Circle Jig
  • 1 × Large Circle Jig
  • 1 × 13" (330mm) Offset Base
  • 1 × 7"(178mm) TurnLock Base Plate
  • 1 × 1/4" (6.35mm) Straight Carbide-Tipped Router Bit with 1/4"" (6.35mm) Shank
  • 1 × 3/32" (2.4mm) Brad Point Drill Bit
  • 1 × 5/8" (15.9mm) Long Metal Nose Bushing
  • 1 × Bushing and Mounting Hardware
  • 1 × 1/4" (6.35mm) Centering Pin
  • 1 × 1/2" (12.7mm) Centering Pin
  • 6 × Mounting Screws
