Smoothing Planes  |  Clifton  |  SKU: CLIPLASMO4

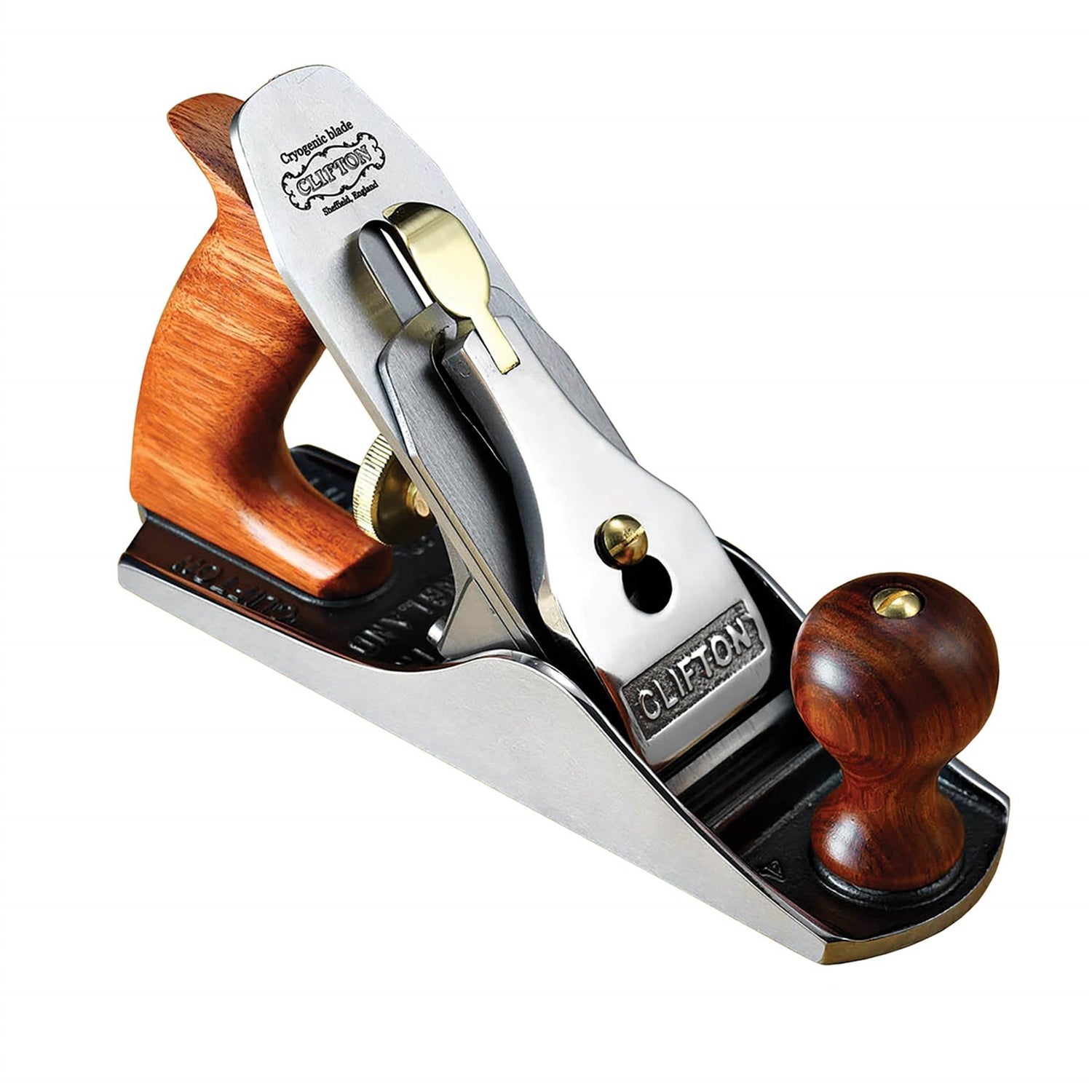

Clifton No 4 Smoothing Plane

Regular price £385.40
EMPTY DOM REMOVE PROTECTOR

Pre-order now — contact us for current lead time

EMPTY DOM REMOVE PROTECTOR

Clifton No 4 Smoothing Plane is backordered and will ship as soon as it is back in stock.

Description

Clifton No 4 Smoothing Plane is an excellent classic medium-sized Smoothing Plane for final finishing and tasks such as drawer fitting.  Clifton Bench Planes are crafted from the finest materials and hand finished in Sheffield - the body and frog are made from accurately machined grey cast iron with their sides and sole fully ground.

Clifton Plane cutting irons are made from O1 Steel. This bench plane's cutting iron is 2" wide and 3mm thick, increasing rigidity, with a hardness of 60-62 Rockwell C, and the cryogenic treatment means that these blades will hold their edge even longer. Clifton blades have a reputation as quick to hone whilst producing one of the finest sharp edges available.

The Frog and Frog Seating in the body of these bench planes is based on the Bedrock design, first seen on early Stanley planes, meaning the seating pad in the body is fully machined flat to mate with an equivalent full face and machined, underside of the Frog. This ensures absolute stability of the Frog, providing a firm and solid surface for the cutting iron, which again rests on a fully machined upper side of the Frog. When used with the extra thick Clifton Cutting Iron and Clifton Two Piece Cap Iron, this design has probably the most rigid and effective clamping mechanism of any Bench plane available.

The accuracy of this mechanism allows for the Cutting Iron to be advanced to give a virtually "Zero" mouth opening, allowing the finest shavings to be taken even on the most difficult of timbers. The Bedrock design uniquely allows the mouth width to be adjusted without dismantling the Frog and Iron assembly.

To adjust the mouth width, the Frog should be moved backwards or forwards by loosening the outside two of the three screws located at the back of the Frog seating pad (underneath the adjusting wheel), then turning the central screw either clockwise to close the mouth or anti-clockwise to open.

The Cap Iron has a two piece design giving rigid clamping and the Frog locating pins and screws are made from polished and ground stainless steel. The Lever Cap is made from grey polished Cast Iron with the Screws and Adjusting Wheel from polished brass. The Y Lever is a solid one-piece casting and the Adjusting Lever and most other components are made from polished stainless steel.

The knob and handle are carefully shaped from Bubinga hardwood sanded to fit your hand perfectly and sealed giving a very tactile and comfortable plane.

Peter Sefton, the owner of Wood Workers Workshop, is very proud to have been part of the development team when the new cryogenically treated high carbon steel blades used in Clifton Planes were developed.  His working knowledge and experience of sharpening and woodworking helped develop the improved plane blades that are presently in production and made entirely in Sheffield.

Blade: Carbon Steel O1 - 3mm (0.120") thick cryogenically hardened to 60-62 Rockwell C

Delivery & Returns

Same-Day Dispatch

Orders placed before 2pm (Monday–Friday) are usually dispatched the same day. All deliveries are fully trackable.

UK Mainland Delivery Options

Service Delivery Time / Notes Price
FREE UK Delivery 2–3 days – orders over £90 FREE
Economy Delivery 2–3 days £4.50
Standard Delivery 1–2 days £5.95
Express Next Day Next working day (order before 2pm, Mon–Thu) £7.99
Express Pre-1pm Next working day before 1pm (order before 2pm, Mon–Thu) £15.95
Saturday Delivery Saturday (order before 2pm, Fri) £19.95
Click & Collect Collection available: 9am–4:30pm, Mon–Fri FREE

Important information

  • Express Pre-1pm and Saturday services aren’t available to Northern Ireland, Scottish Highlands, Islands or remote postcodes — Express Next Day takes 2 days and other services may be slower.
  • Large or heavy items may not qualify for Express Pre-1pm or Saturday delivery to your area — we’ll contact you if this applies.
  • Click & Collect – Collection available after you receive “Ready for Pickup” email — most orders before 2pm are same day.

International Delivery

We ship worldwide to over 200 countries. No hidden costs — all duties and taxes are calculated at checkout.

Harvey Machines & SawStop Delivery

Harvey Machines and SawStop products are shipped directly. Once your order has been placed, delivery confirmation and tracking details will be provided by the manufacturer.

View delivery information

Hassle-free Returns

All orders are covered by our 45-day Hassle-free Returns guarantee.

View returns information

We are Wood Workers Workshop

We are a family business, run by woodworkers for woodworkers, delivering 5-star customer service since 1999.

Stocking a wide range of woodworking tools from leading brands: AUKTools, Milescraft, INCRA, iGaging, JessEm, Woodpeckers, FastCap, Verum & more.

  • 5 stars: 4 (100%)
  • 4 stars: 0 (0%)
  • 3 stars: 0 (0%)
  • 2 stars: 0 (0%)
  • 1 star: 0 (0%)
Some of the reviews shown are from related products the merchant grouped with this one.
A
Anonymous
I ordered from South Korea

I ordered from South Korea. I paid for the order on August 8th and received it on August 26th. The shipment took 19 days by sea freight.
Since the order value exceeded the duty-free threshold in Korea, I was expecting to pay import duties and VAT. However, thanks to the FTA between Korea and the UK, tools manufactured in the UK are eligible for duty-free treatment.
Among the online stores selling Clifton products, this store had the lowest product price and shipping cost, and I was also able to get a discount. On top of that, I was exempt from import duties and VAT, so I was able to purchase everything at a very good price.
I purchased a Clifton No. 4 Bench Plane, a scraper, and a Verum marking gauge blade.
Everything arrived safely, but unfortunately, the lever cap on the bench plane was damaged. I contacted the seller by email, and Jim, the person in charge, responded quickly and kindly and took care of the issue without causing me any inconvenience. A replacement is scheduled to be shipped.
Thank you, Jim.
Now, regarding the products themselves:
The Clifton Bench Plane had some rather rough areas, and there was a small amount of rust and some scratches on the blade, so I would not say that the overall finish was particularly good.
However, the flatness of the back of the blade and the sole of the plane was very good, to the point that it was ready to use right out of the box. The blade was also reasonably sharp, above average in my opinion.
After applying some oil and sharpening the blade a little more, no significant setup was necessary.
The Clifton scraper and Verum marking gauge blade arrived in excellent condition without any defects.
Overall, I was very satisfied with the purchase thanks to the Korea-friendly ordering system, good pricing, and friendly customer service.
Thank you.
한국에서 주문했어요. 8월 8일에 결제했고 8월 26일에 수령했습니다. 선박배송으로 19일 걸렸습니다.
한국 기준 면세 초과 기준이라 관세와 부가세를 예상했었는데, 한국은 영국과 FTA 협정으로 영국 원산지인 공구는 면세 혜택을 받게 되네요.
클리프턴 제품 판매 사이트 중 제품가와 배송비가 제일 저렴했고 할인까지 되었는데, 관부가세까지 면제되어 좋은 가격으로 구매했어요.
클리프턴 4번 벤치 플레인, 스크래퍼, 베룸 마킹 게이지 블레이드를 구매했구요.
제품은 잘 수령했으나 벤치 플레인의 레버 캡이 손상되어 있었습니다. 교환 문의 메일을 보냈고, 판매처 담당자 JIM의 친절하고 빠른 응대로 불편하지 않게 처리되었습니다. 교환품은 발송 예정이구요.
감사합니다 JIM.
제품 후기입니다.
클리프턴 벤치 플레인은 다소 거친 면이 있고, 약간의 녹과 날에 스크래치가 있어서 제품 마감 상태가 좋다고 볼 수는 없었습니다.
그러나 바로 사용 가능할 정도로 뒷날과 대패집 바닥면의 평활도는 매우 좋았구요, 날도 중간 이상의 날카로움은 있었습니다.
기름칠하고 날만 조금 더 예리하게 연마하면 별다른 세팅은 필요 없습니다.
클리프턴 스크래퍼와 베룸 마킹 게이지 블레이드는 하자 없이 좋은 제품을 수령했습니다.
한국 고객에게 친화적인 시스템과 좋은 가격, 그리고 친절한 응대로 만족스럽게 구매했습니다. 감사합니다.

R
Richard bowdler
clifton no.4

excellent bit of kit, highly recommended, now offer me a discount on a no.6

C
Christine Hunt
Clifton No.4 Smoother

I have recently been lucky enough to be able to replace my bench planes with Cliftons, well the ones that needed it anyway. Overall the quality and performance of these planes justifies the cost, in my opinion. The feeling, in your hand, and the performance I have been blown away with. The No.4 is the final plane that I have replaced and it will be a dedicated smoother. I have produced the very thin shavings, that are required, and that was before I sharpened it. So far I have not been disappointed at all and it performs perfectly and much better than my refurbished Stanley No.4. I am proud to have found an heirloom tool that is still made in this country by craftsman and I'm sure these wont need replacing in my lifetime.

G
George Luck
Clifton No4 plane

Always excellent service from Peter and Jim , this is an outstanding plane , beautiful made and balanced , ordered it after buying the Clifton block plane , the quality is well worth the price .
