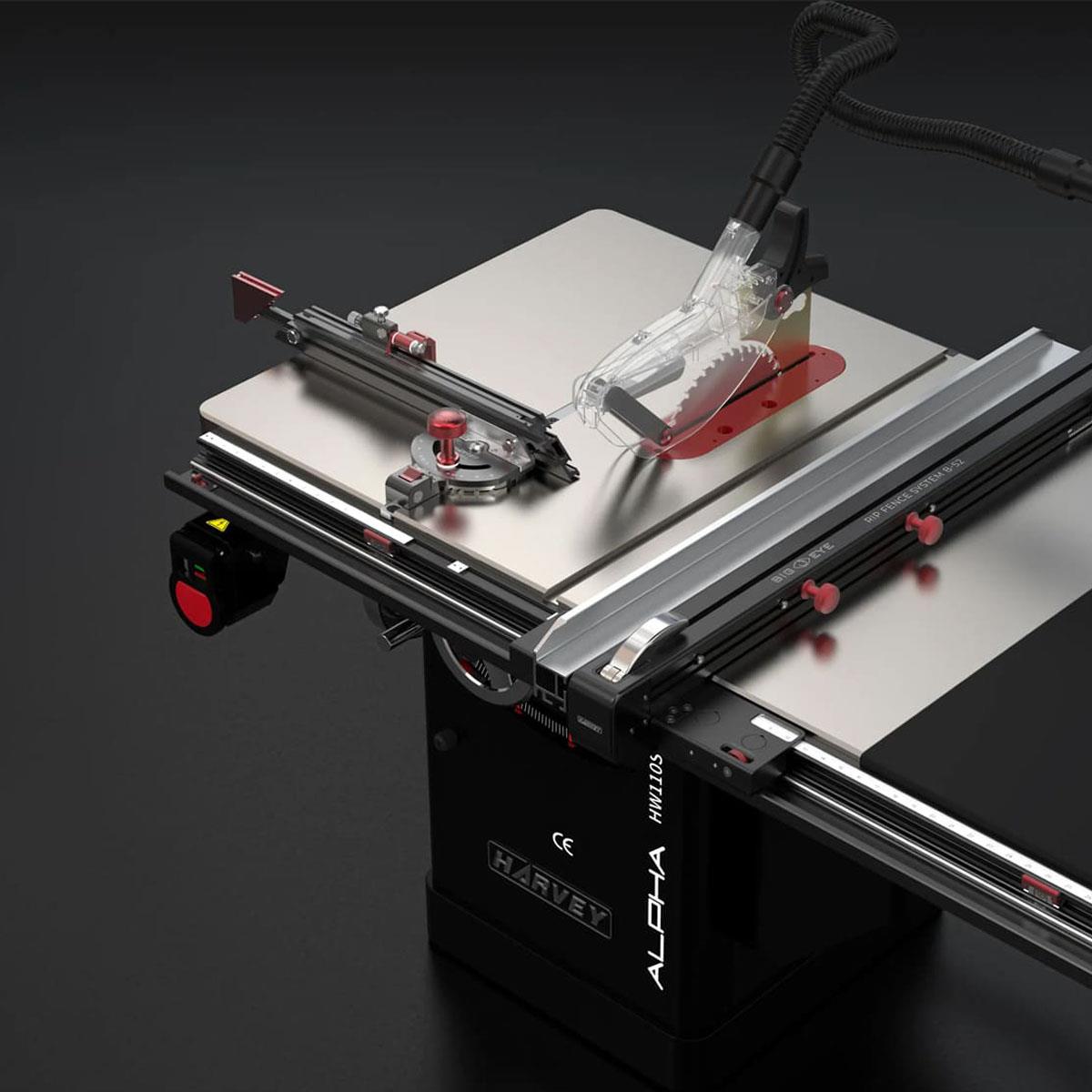

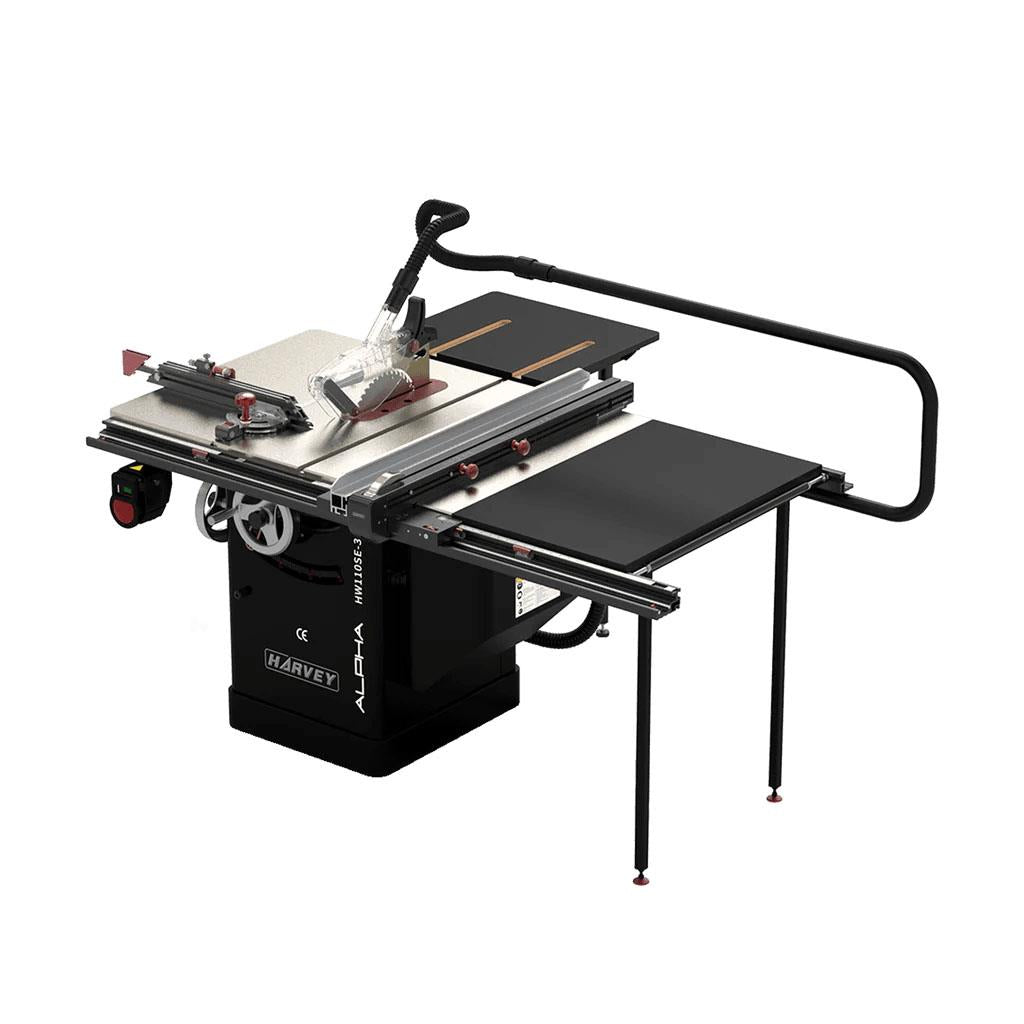

Harvey ALPHA HW110SE Table Saw

Working demo model available in-store from January 29th, contact us to book an appointment.

The ALPHA HW110SE-36 Table Saw is engineered and built to the highest quality standards, incorporating technological innovations that provide the highest level of performance, precision and reliability for both the professional and hobbyist woodworker.

With a powerful 2.2kW (3hp) braked single phase motor and industrial grade 10” (250mm) diameter saw blade running at 4000rpm, the HW110SE-36 provides effortless, accurate cuts every time.

Features

• Smooth ground ‘Stain-less’ nickel-plated cast-iron rust-proof table

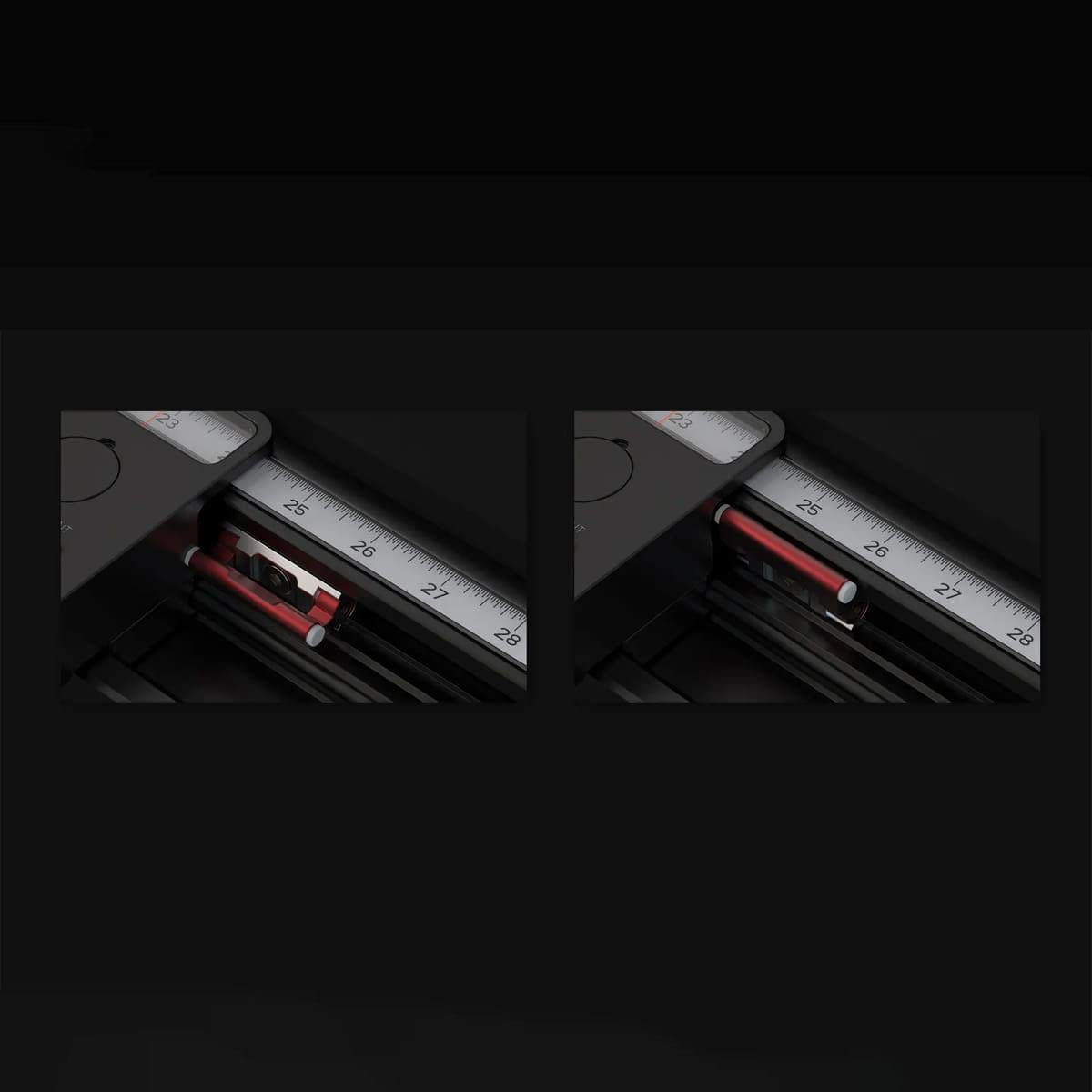

• Precision BIG EYE Dual Lock Rip Fence with micro adjustment and 4 flip position stops

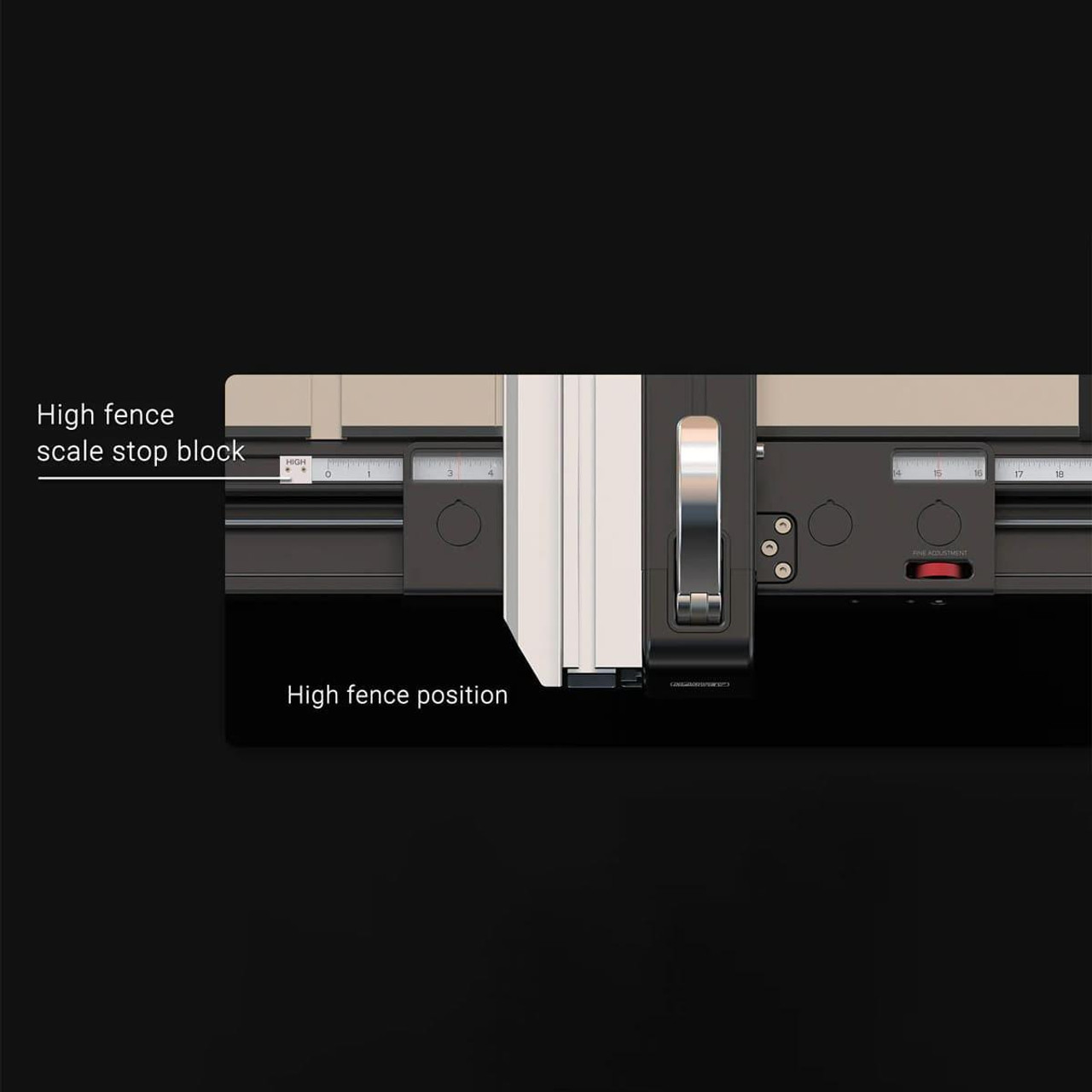

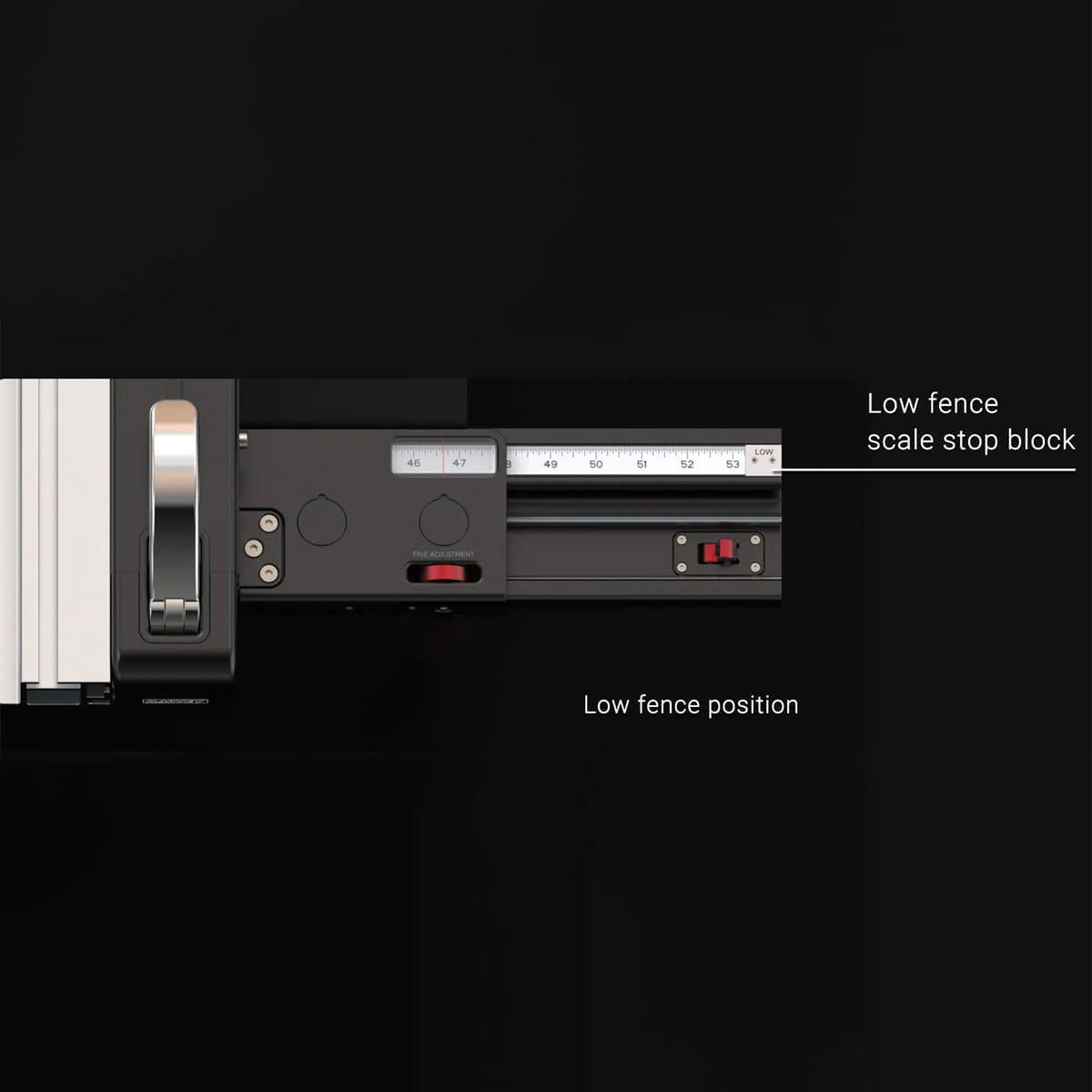

• Fully adjustable dual position high/low fence with preset measure for both settings
• K9 crystal glass window viewer to reduce parallax when reading the mm scale
• MG-36Pro COMPASS Sliding Mitre Gauge with 11 precision stops
• Unique dovetail structured trunnion system rust-proof (nickel-plated)
• 45 degrees tilt arbor tilting to the left
• Powerful 2.2kW output motor (16amp required)
• Quick release riving knife
• Industrial 10” (250mm) diameter ATB Leitz general-purpose blade
• Transparent blade guard with dust control
• Simultaneous above and below dust extraction
• NVR safety switch with thermal protection
• Dado ready

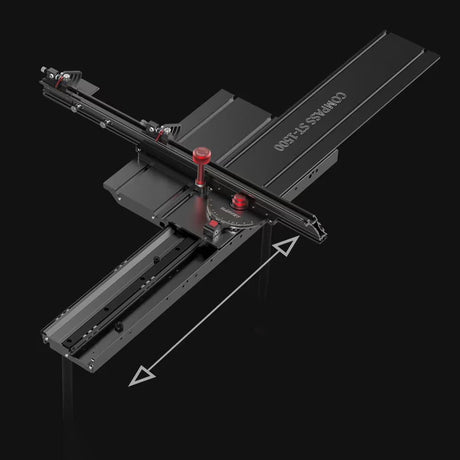

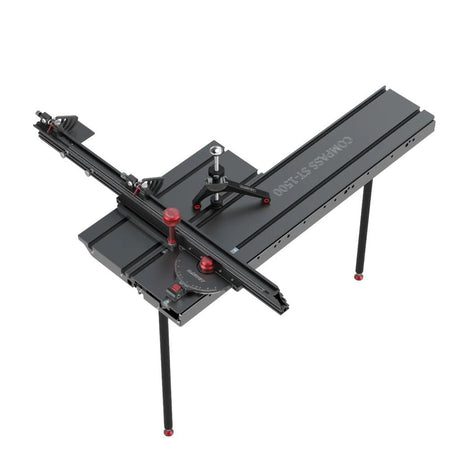

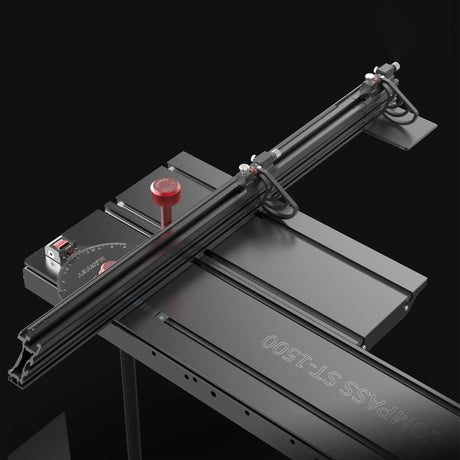

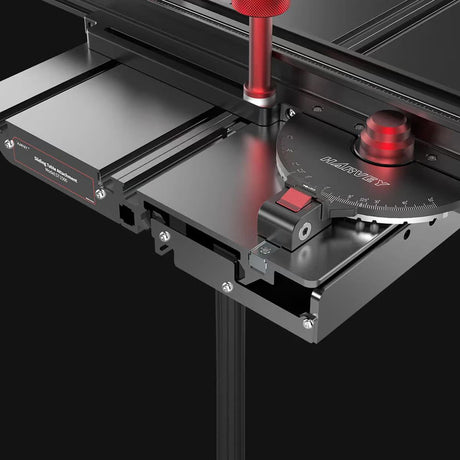

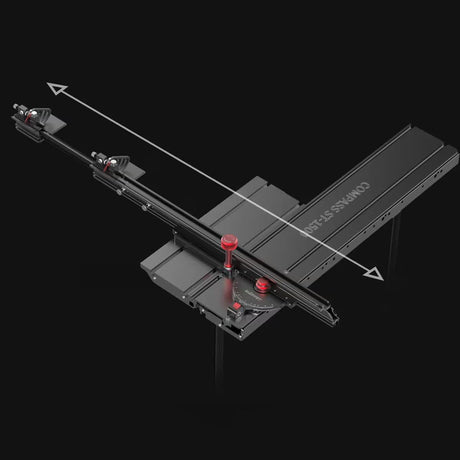

• Optional Sliding Table: COMPASS ST-1500
• 2-year warranty

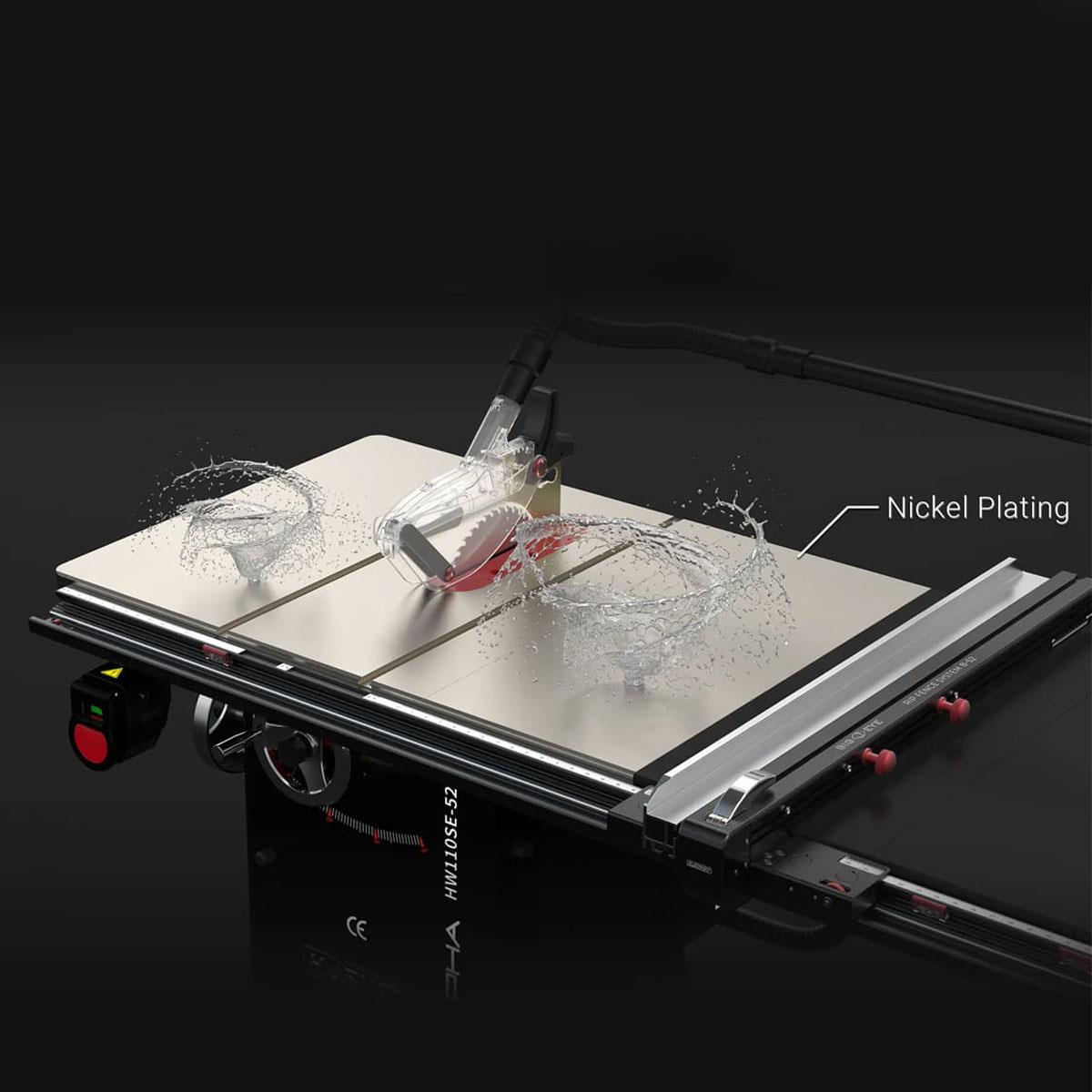

Nickel-Plated Cast Iron Table

The smooth ground 800 x 1120mm cast iron table and trunnion have undergone a chemical nickel-plating process bonding the nickel layer thickly to the base material, significantly enhancing its durability and resistance to corrosion and wear, keeping your investment in perfect condition inside and out. The tabletop also features two 19mm mitre tracks, one each side of the saw blade.

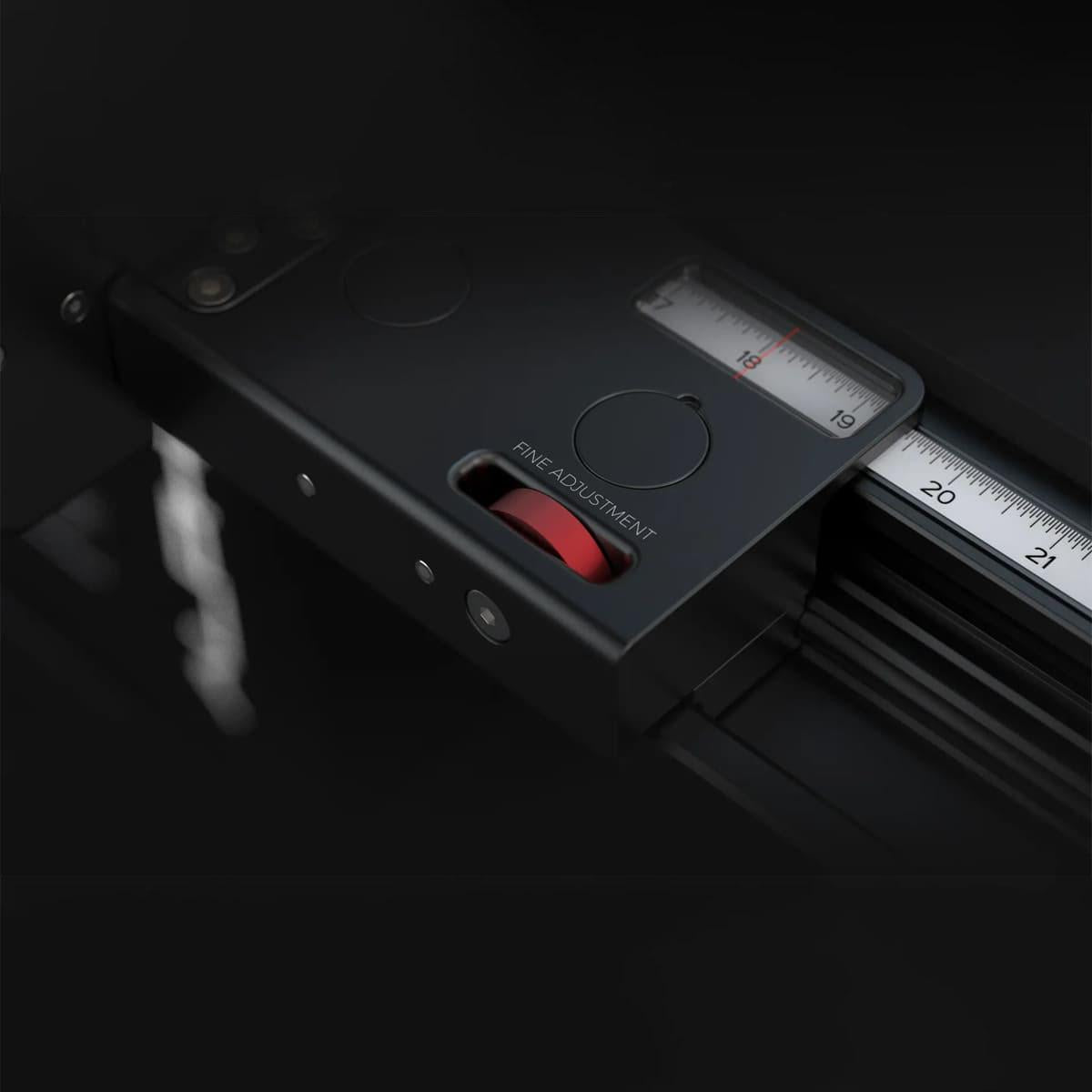

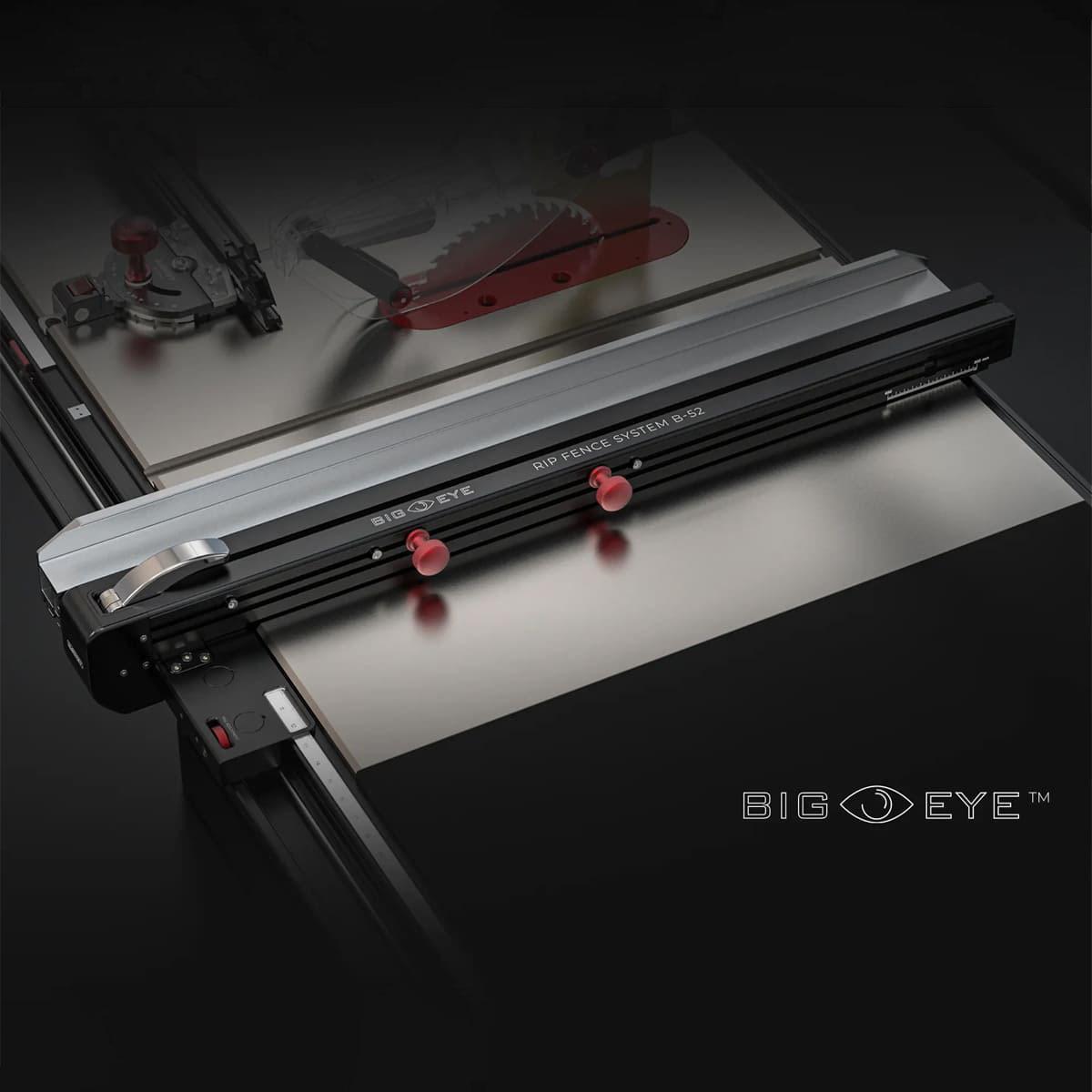

BIG EYE Rip Fence System

The best-in-class Big Eye Rip Fence System features eight rollers with bearings that effortlessly glide along the two hardened and ground steel rods with zero clearance, resulting in exceptional accurate fence movement (0.15mm in full length). The roller dial can be used for micro-adjusting the fence position into the desired setting. The ambidextrous fence can be used on the left or right side of the blade and features two K9 crystal glass window viewers. One on each side of the fence depending on which side of the blade you are cutting from. These exceptional quality viewers reduce parallax when reading the mm scale.

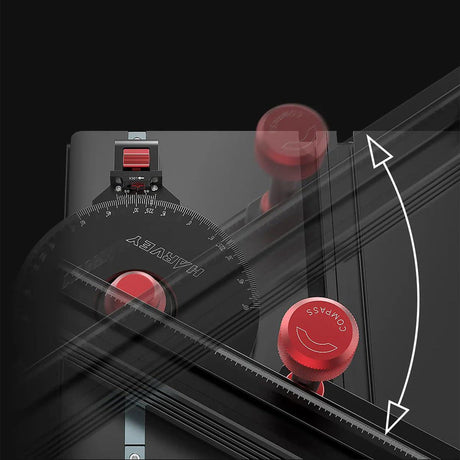

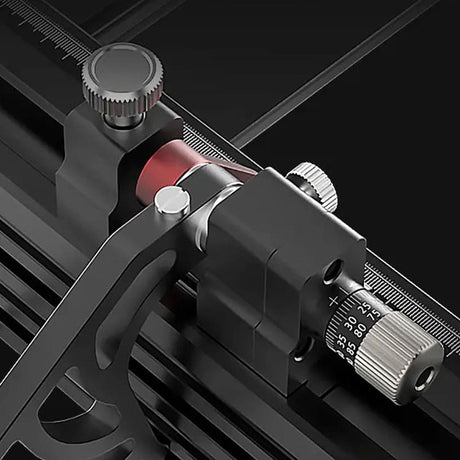

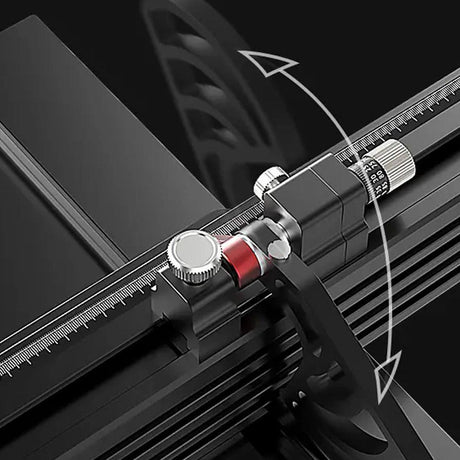

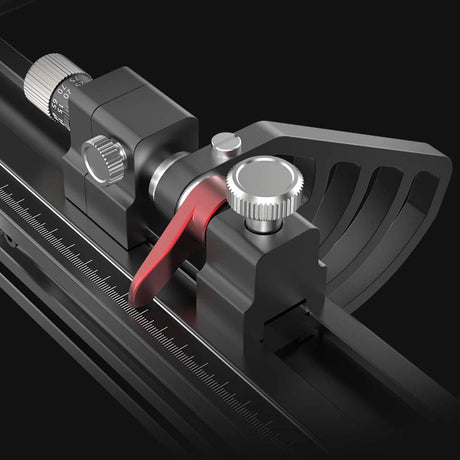

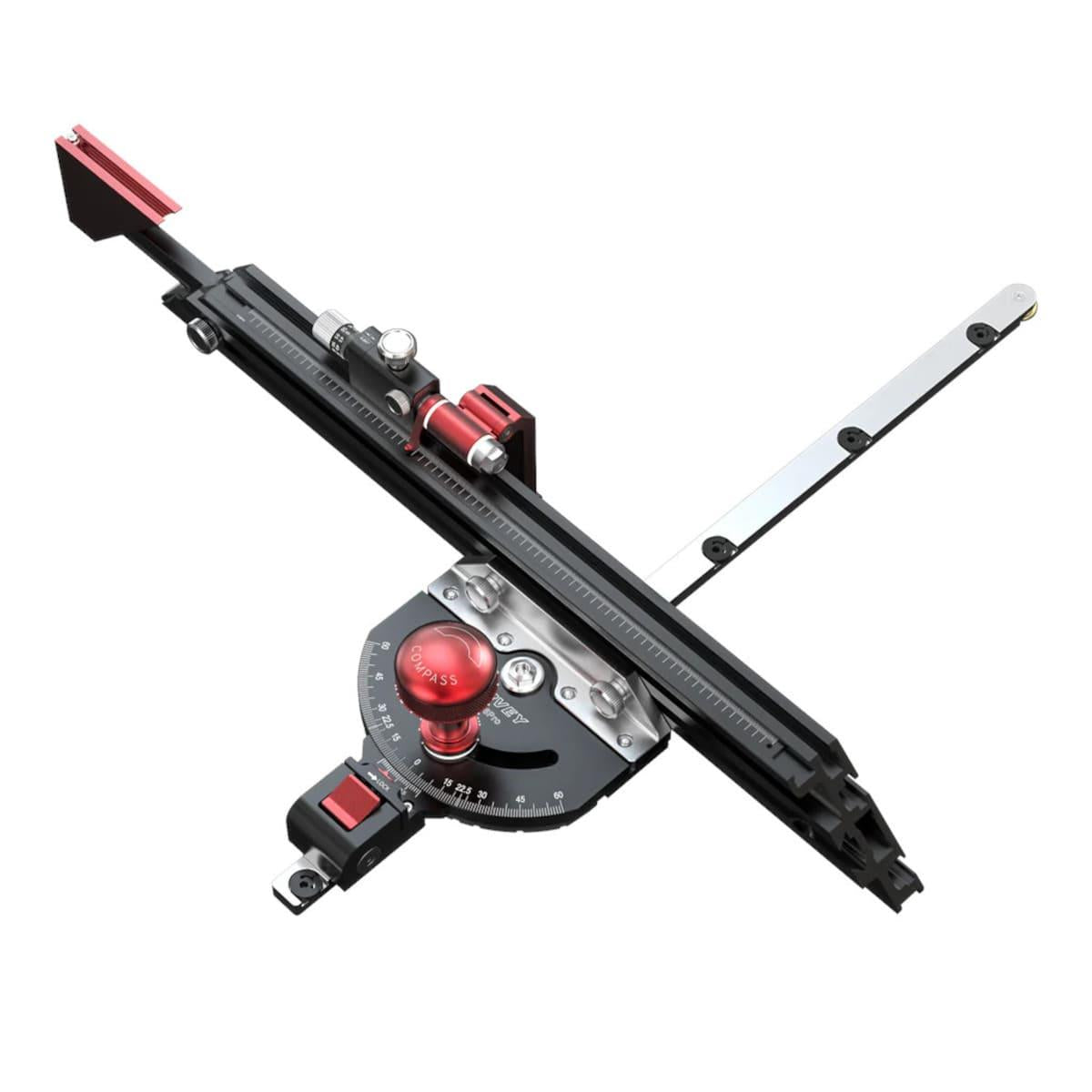

MG-36Pro COMPASS Mitre Gauge

Uniquely designed with a Quick-Action positive angle setting device which allows you to set commonly used angles of ±60°, ±45°, ±30°, ±22.5°, ±15°, and 0° with a simple click. Any other angle can also be set and locked. The crosscut fence extends from 570mm to 915mm and is equipped with an accurate flip stop. The mitre bar has 5 adjustable nylon guides along its length to ensure zero deflection in the two tracks, either side of the saw blade. The micro-adjustable flip fence can extend over a sacrificial fence for perfect results every cut.

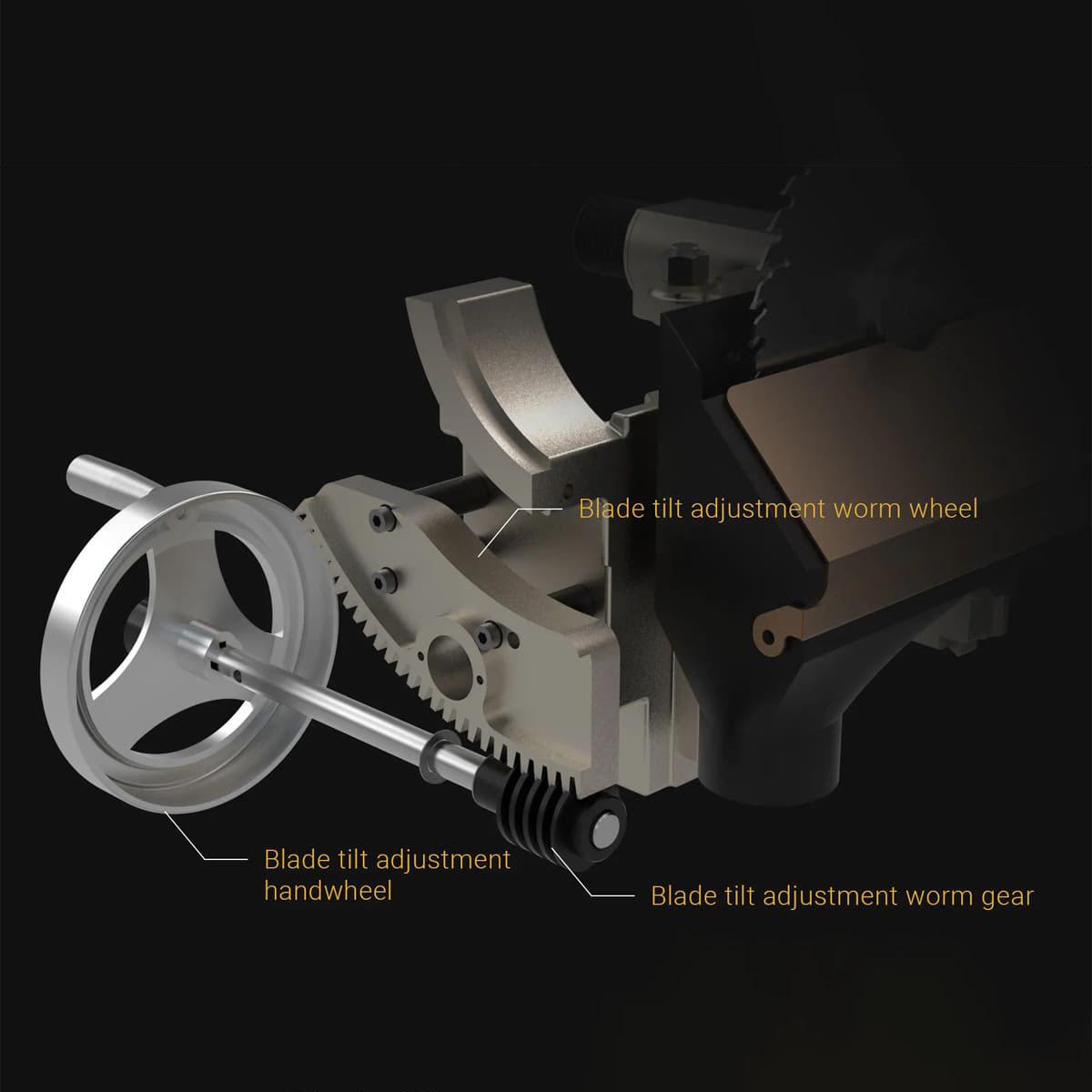

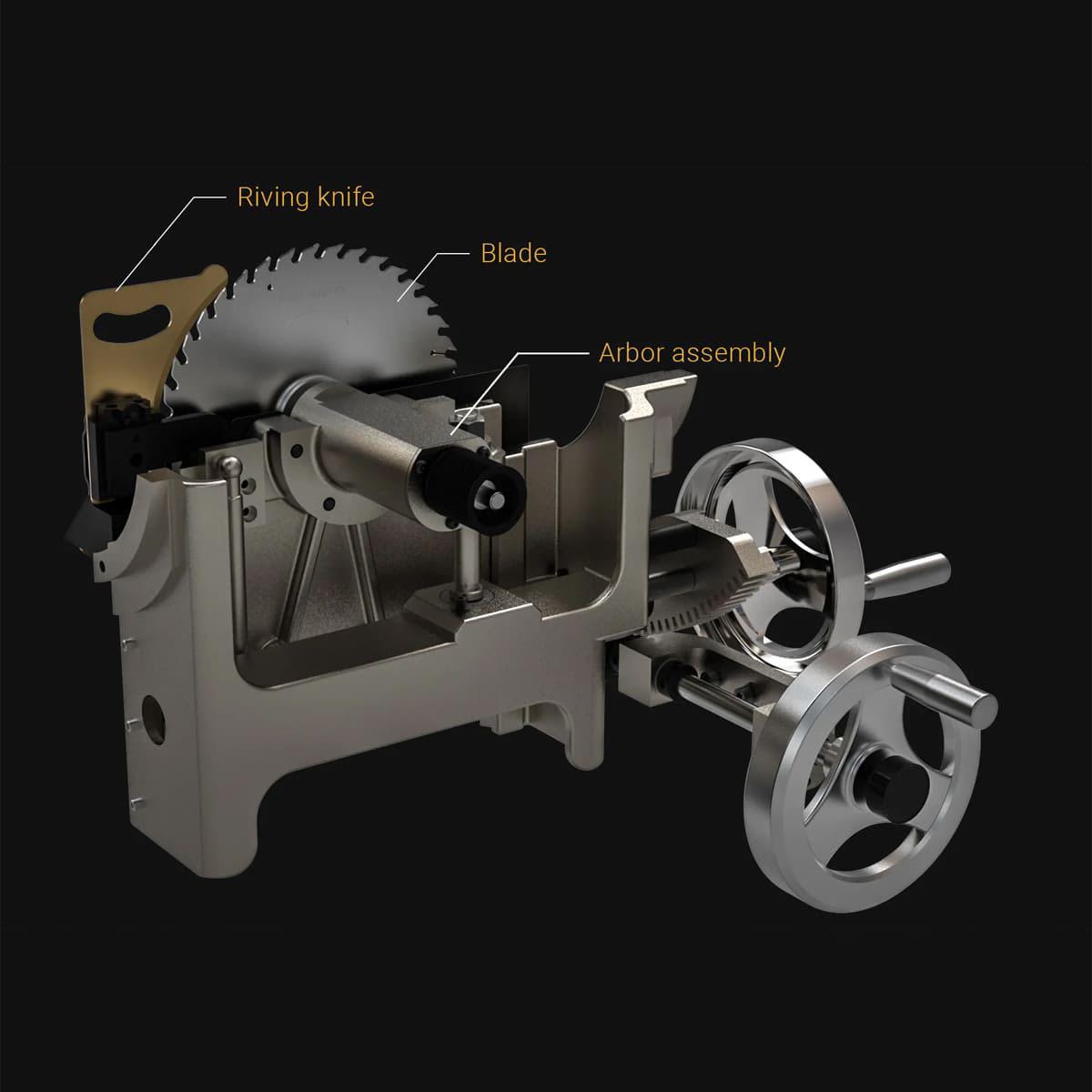

Unique Dovetail Structured & Nickle-Plated Trunnion

The blade is elevated by a heavy-duty dovetail trunnion system which provides smoothness and greater cutting accuracy, with less vibration. The 45-degree left-leaning blade tilt angle is adjusted by a worm gear trunnion system with massive cast iron block making the blade tilting smoother and more accurate.

Includes

• Industrial-Grade Leitz 10” (250mm) general-purpose saw blade
• Standard table insert
• Zero clearance table insert
• Stacked dado table insert
• Standard riving knife
• Riving knife for non-through cuts
• 5Mtr cable with 16amp industrial plug

A 16 amp, 240v electric supply is required to run this machine. We also recommend using a 16amp Type C breaker.
