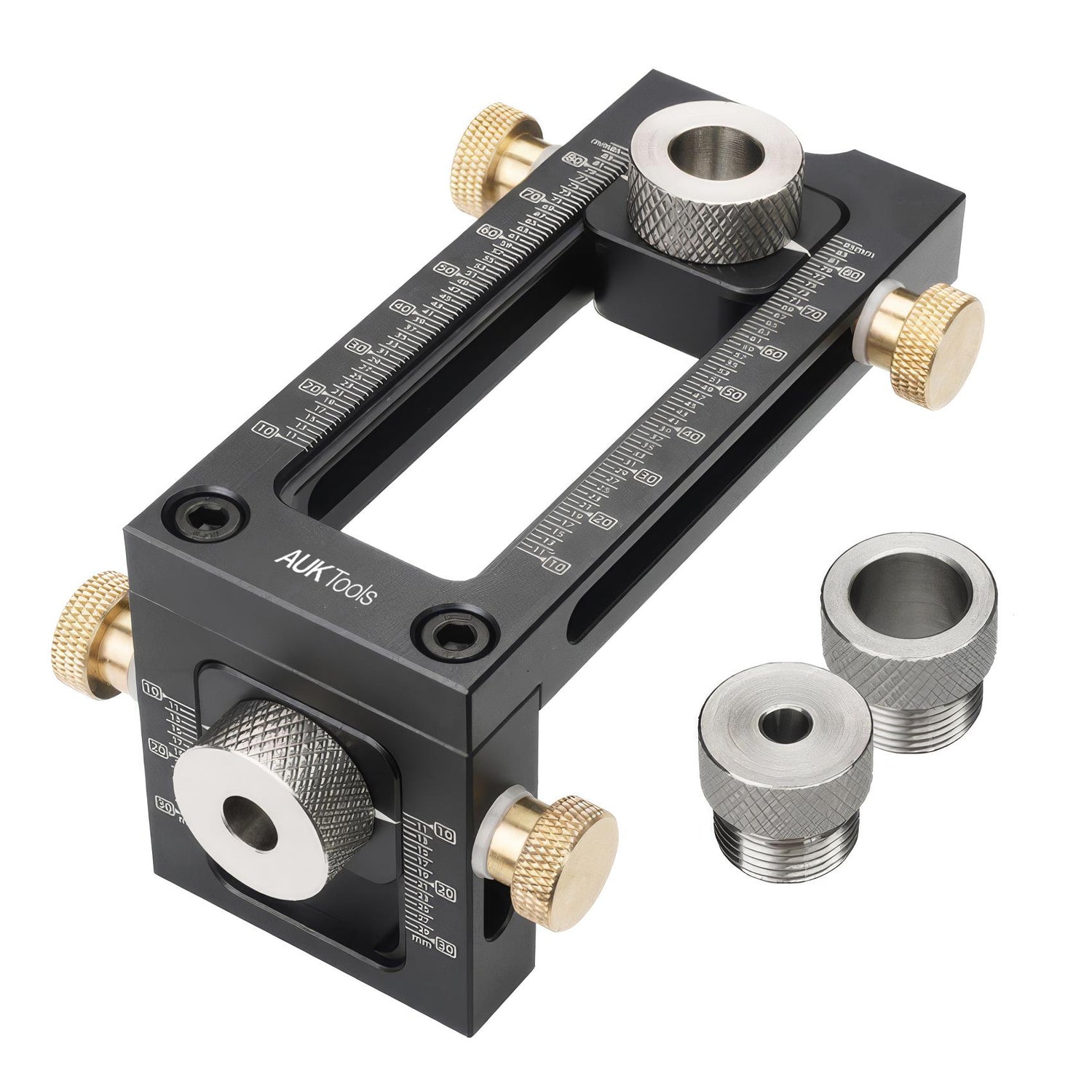

AUKTools Cross Dowel Jig (Metric)

• Produces accurate cross dowel and connector bolt holes for knock-down furniture
• Compact design is easy to position and operate with one hand
• Includes interchangeable drill guide sleeves in 6mm, 8mm, 10mm and 12mm sizes
• Precision metric scales provide fast, repeatable setup
• CNC-machined aluminium, steel and brass construction delivers long-lasting accuracy and durability

Accurate Cross Dowel Joinery Made Simple

The AUKTools Cross Dowel Jig (Metric) makes it quick and straightforward to produce accurately aligned cross dowel joints for furniture, workbenches and knock-down joinery. Designed to position both cross dowel and connector bolt holes precisely, it helps create strong joints that can be assembled and dismantled repeatedly without compromising alignment.

Fast, Accurate Drilling

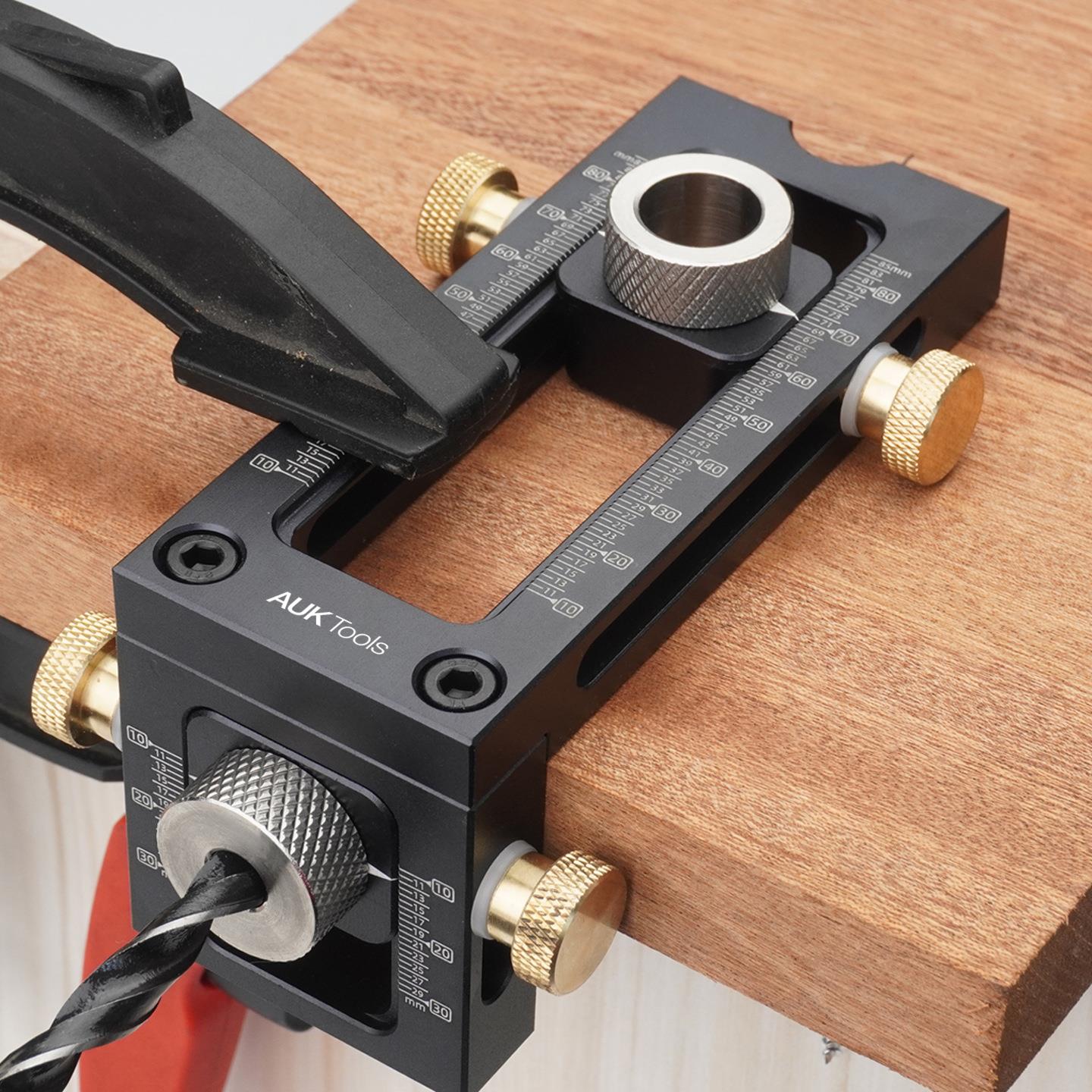

Compact and easy to hold with one hand, the jig allows rapid positioning before drilling. It is ideal for drilling vertical holes for concealed connector bolt fixings in wooden furniture, producing clean, consistent results with minimal setup.

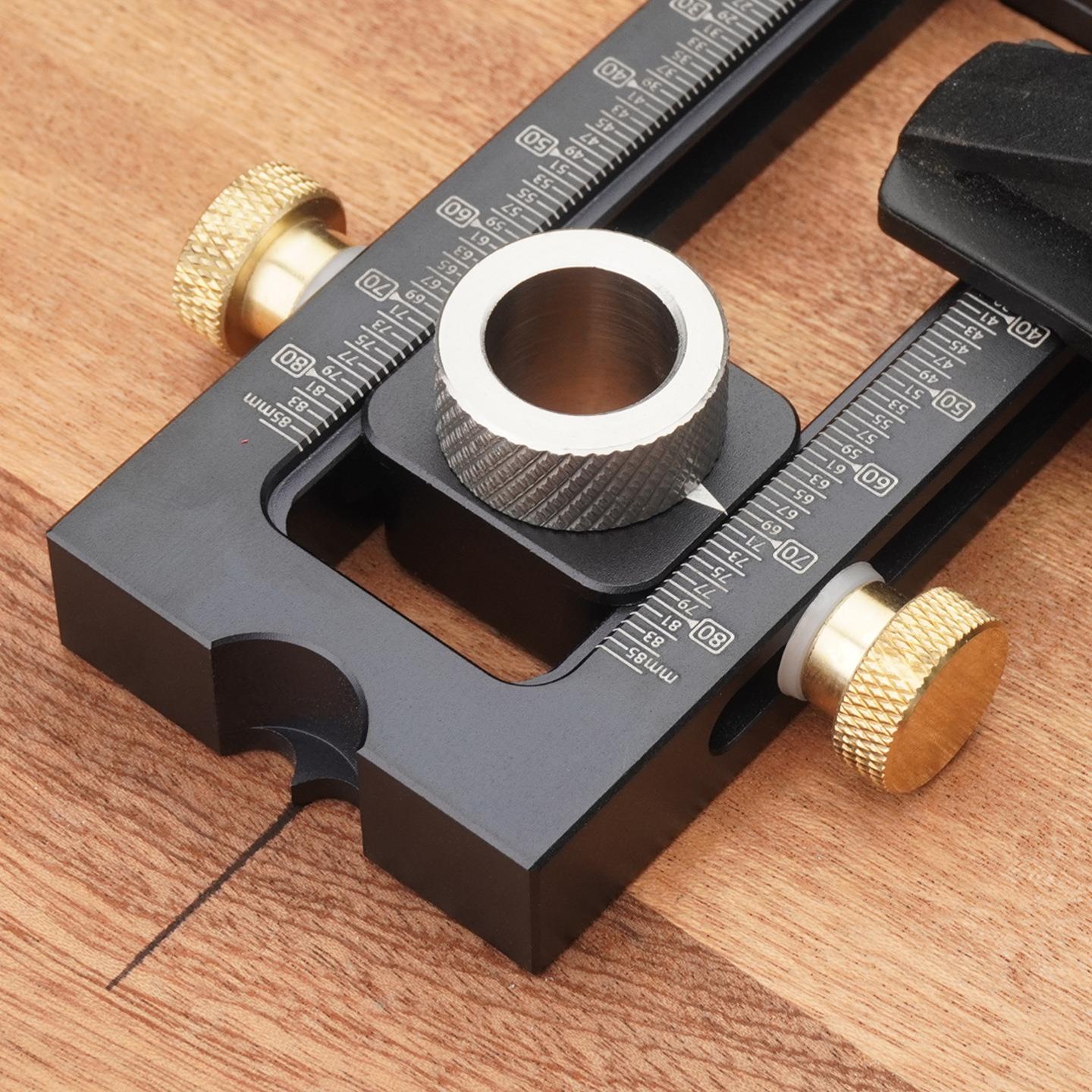

Clear metric graduations and alignment markers simplify positioning, allowing repeatable drilling across multiple components.

Versatile Drilling Capability

The jig is supplied with four precision drill guide sleeves in 6mm, 8mm, 10mm and 12mm, making it suitable for a wide range of cross dowel fittings and connector bolts. The hardened guide sleeves provide precise drill guidance while helping to minimise wear for long-term accuracy.

Built for Workshop Use

Precision CNC-machined from aluminium with a durable anodised finish, the jig is designed to withstand regular workshop use while resisting wear and corrosion. Its compact size makes it easy to carry between projects and convenient to store when not in use.
