JessEm Rout-R-Lift 3.5XT Router Lift (Imperial)

• Make accurate, repeatable cutter height adjustments for cleaner, more consistent routing results
• Change router bits from above the table to simplify setup and reduce interruptions
• Maintain a stable routing platform for demanding work and everyday workshop use
• Fine-tune cutter height to suit different materials, profiles and joinery operations
• Build a more versatile router table around a lift designed for popular fixed-base router motors

Precise cutter control for demanding router table work

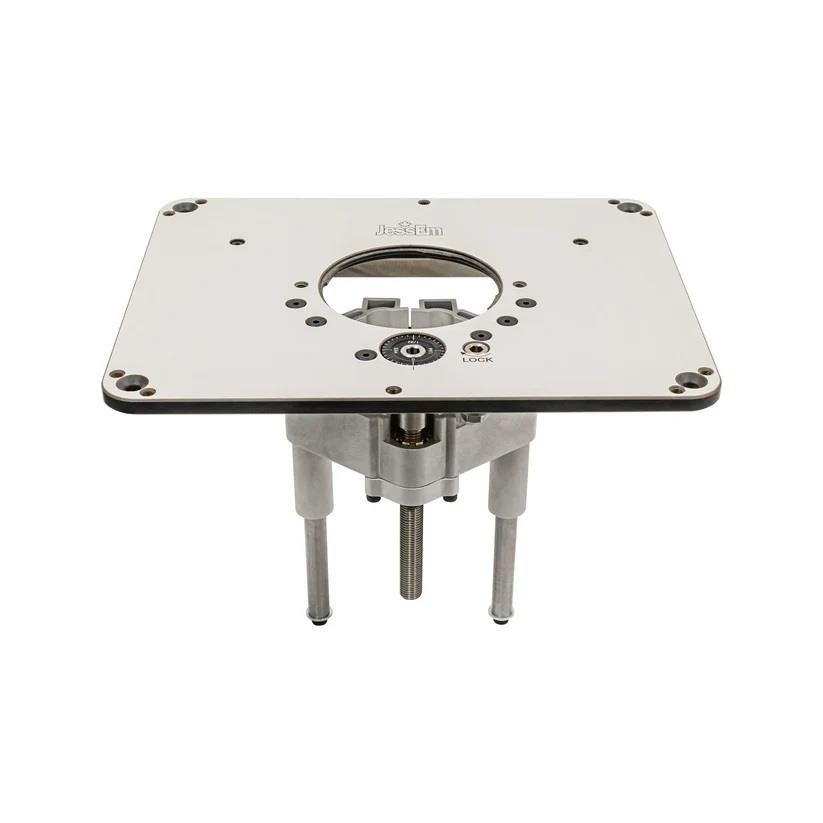

The JessEm Rout-R-Lift 3.5XT gives experienced woodworkers greater control over cutter height, helping achieve consistent results when machining joinery, profiling components and producing furniture parts. Designed for router tables use, in cabinetmaking, custom jointing and general fine woodworking, it combines a rigid aluminium lift mechanism with a precision-machined phenolic top plate. Its smooth height adjustment and above-table bit-changing facility help make routine setup quicker and more straightforward.

Smooth, repeatable height adjustment

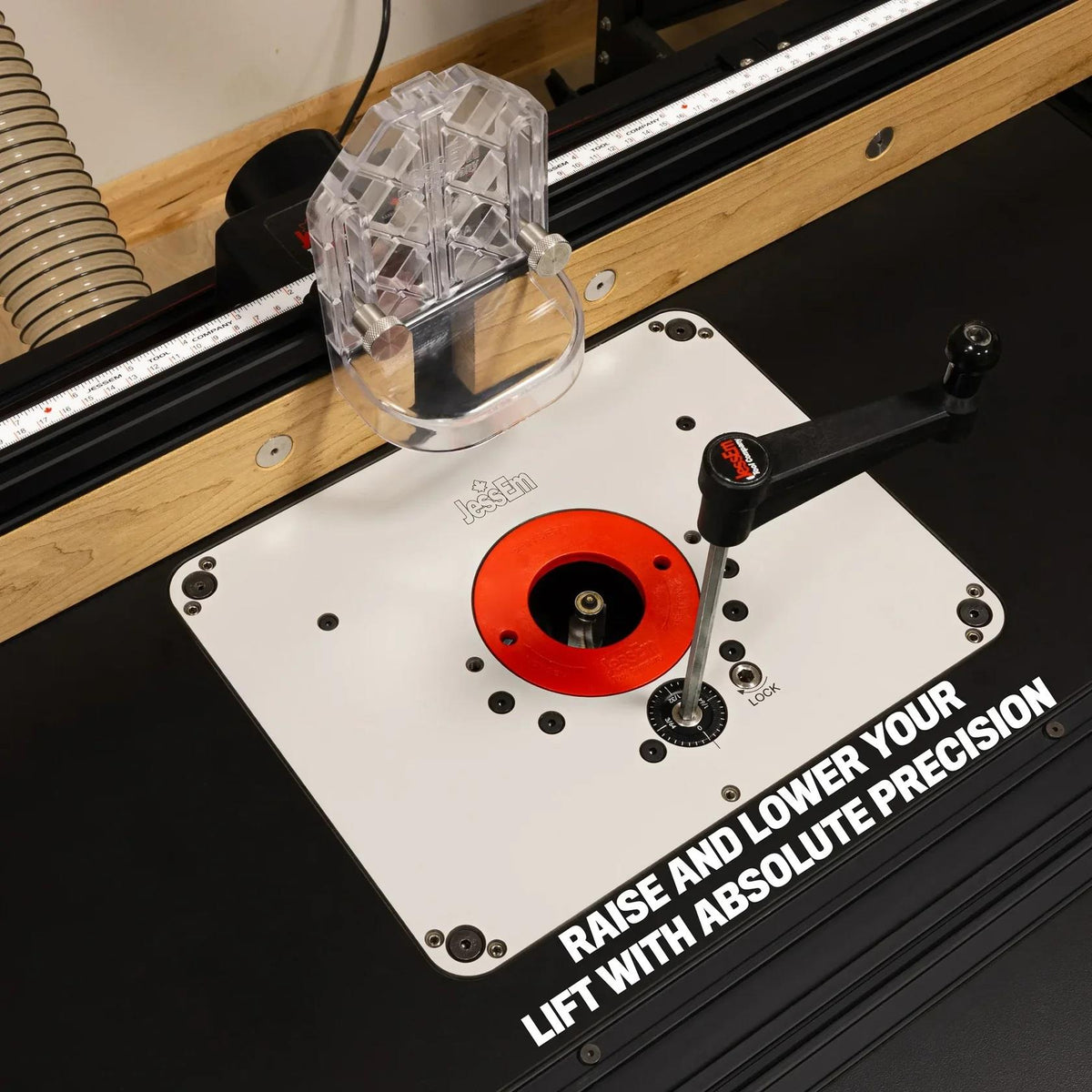

A precision-machined lift mechanism and double-sealed bearing spindle allow the router motor to be raised and lowered smoothly for accurate cutter-height setting. This makes it easier to establish repeatable settings for matching components, refining a profile or making fine adjustments during setup. The lift is operated using the supplied height adjustment handle.

Rigid construction for demanding routing

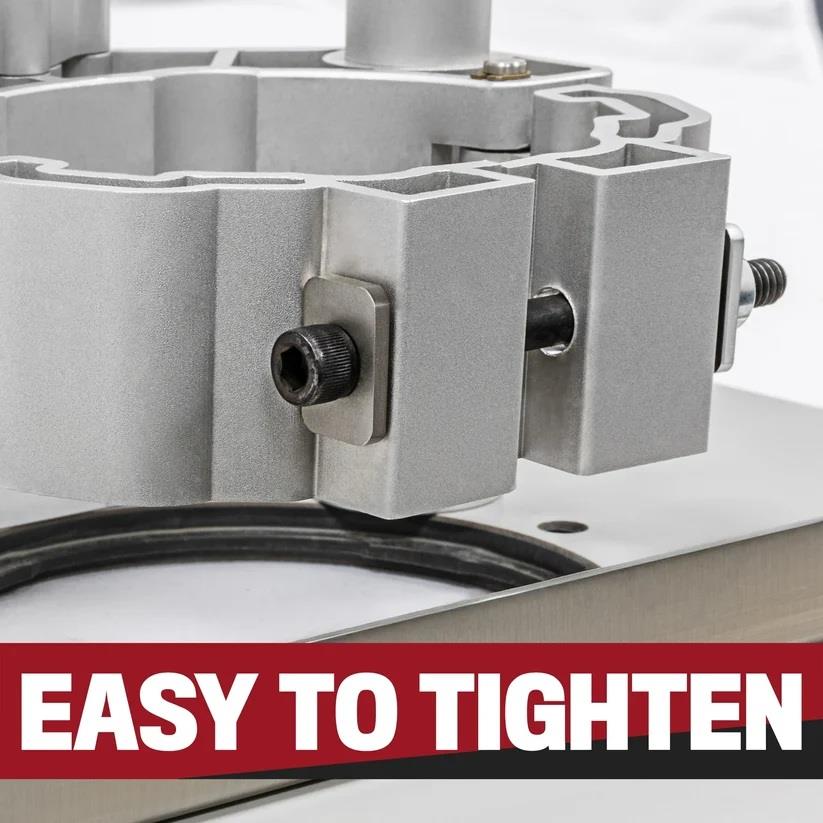

The lift mechanism is CNC-machined from aluminium, providing a rigid structure for regular workshop use. Its support shafts are hydraulically pressed into oversized mounting blocks and secured to the top plate with multiple fasteners, helping distribute lateral loads during demanding routing operations. This construction is designed to maintain stability and dependable adjustment under load.

A stable, accurately levelled table surface

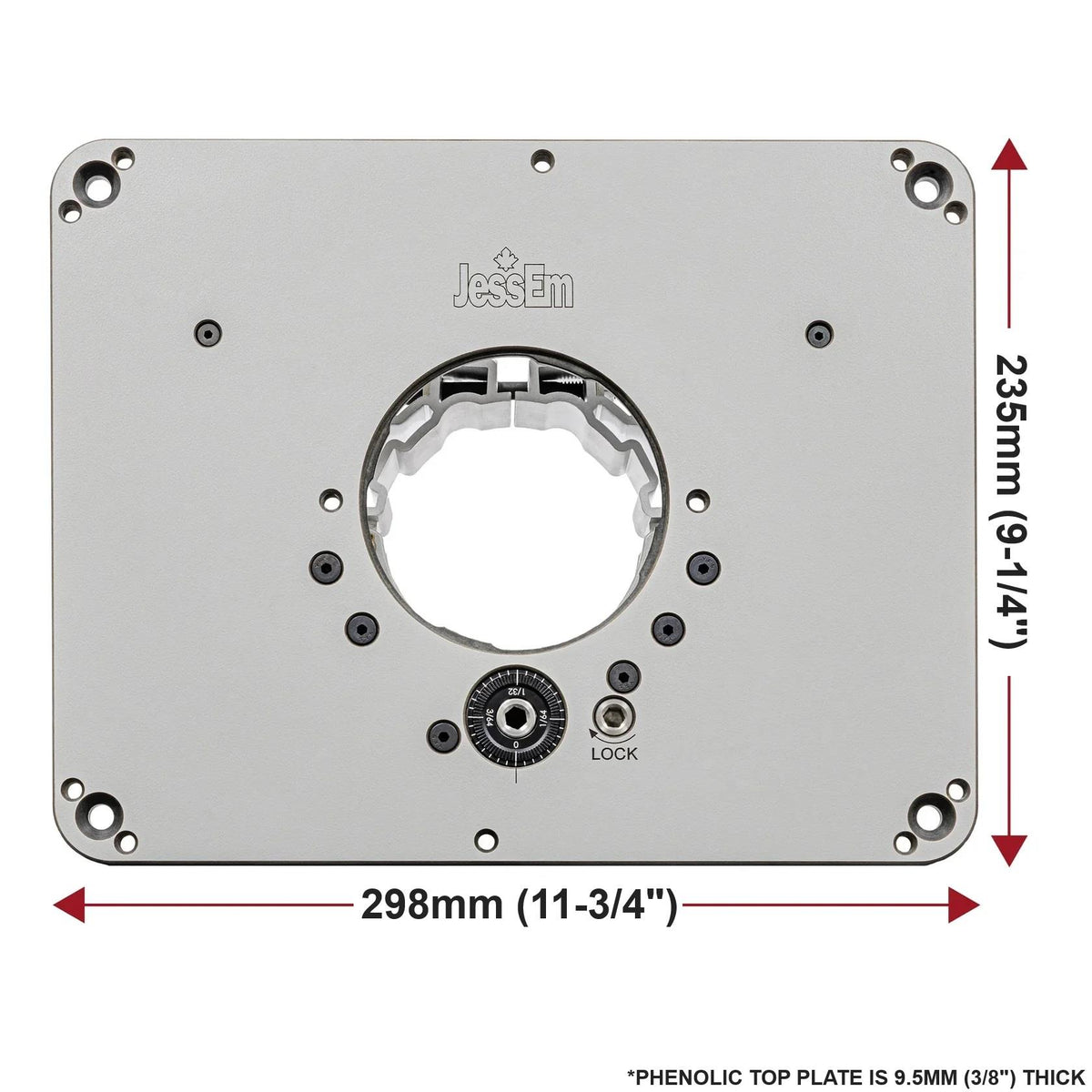

The reinforced phenolic top plate provides a smooth, dimensionally stable surface for supporting workpieces as they pass over the cutter. Measuring 9¼" × 11¾" × ⅜", it is designed to sit within a suitable router table opening and can be levelled flush with the surrounding table using the supplied adjustment screws. The plate is precision-machined, while the aluminium lift assembly provides the supporting structure beneath it.

Above-table bit changes and cutter access

The Rout-R-Lift 3.5XT allows router bits to be changed from above the table without removing the motor from the lift, making cutter changes and routine setup more convenient. Three Tab-Loc insert rings with pre-drilled centre holes are supplied to suit different cutter clearances, and the dedicated insert ring wrench makes fitting and removing them straightforward. Additional insert rings are available separately for other hole diameters, including blank rings for machining custom openings.

Lock the setting for repeatable work

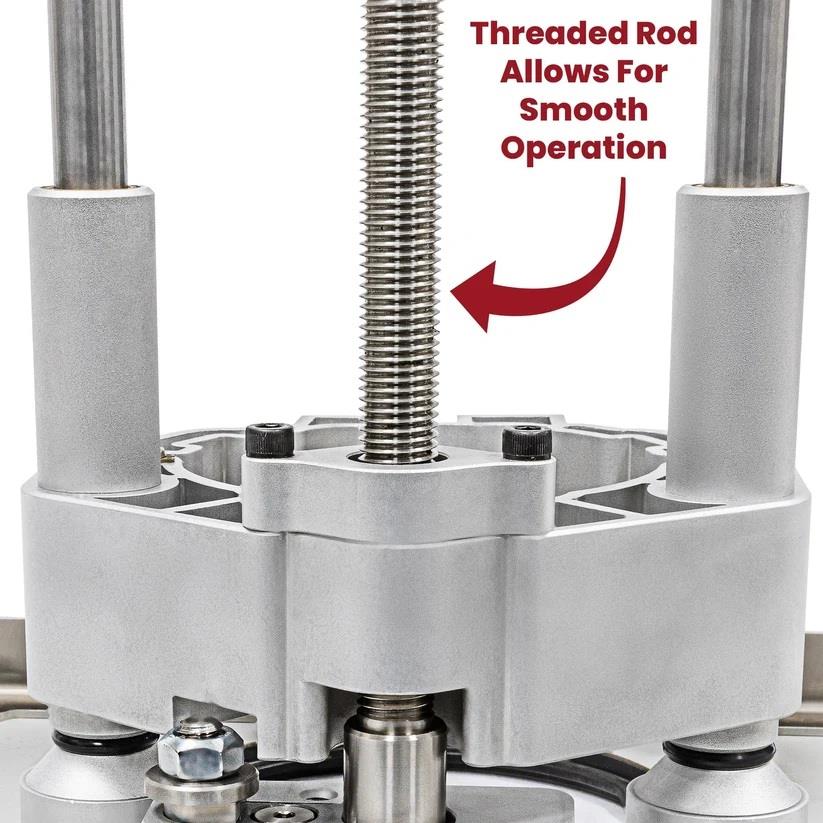

A built-in friction lock secures the lift at the selected position for longer routing operations. The lock engages with a quarter-turn, helping prevent unwanted movement once the cutter height has been established. The lift also incorporates JessEm's patented thread-tensioning design, which can be readjusted as required to maintain the desired tension with continued use.

Router compatibility

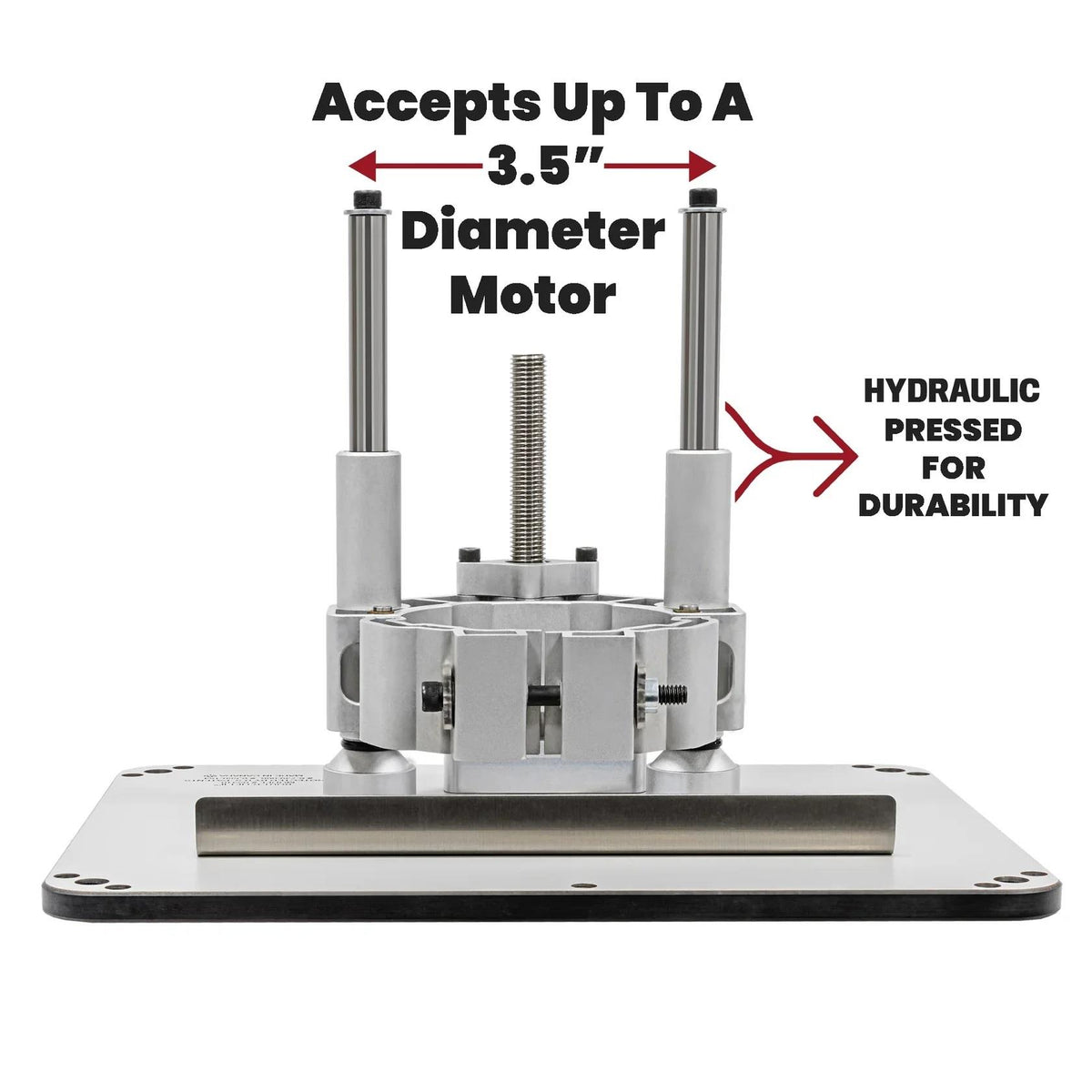

The lift is designed for fixed-base router motors with a 3.5" (88.9 mm) motor diameter. Direct-fit models include the AUKTools Router Motor 1500W with NVR Switch and selected Porter-Cable, Bosch, DeWalt, Skil and Craftsman routers. Check the exact motor model and dimensions before ordering, particularly where a model number has several variants.

Made in Canada

JessEm manufactures the Rout-R-Lift 3.5XT in Canada using CNC machining and precision-engineered components. The combination of an aluminium lift mechanism, phenolic top plate and serviceable thread-tensioning system makes it a practical choice for woodworkers building a dependable router table for regular use.
