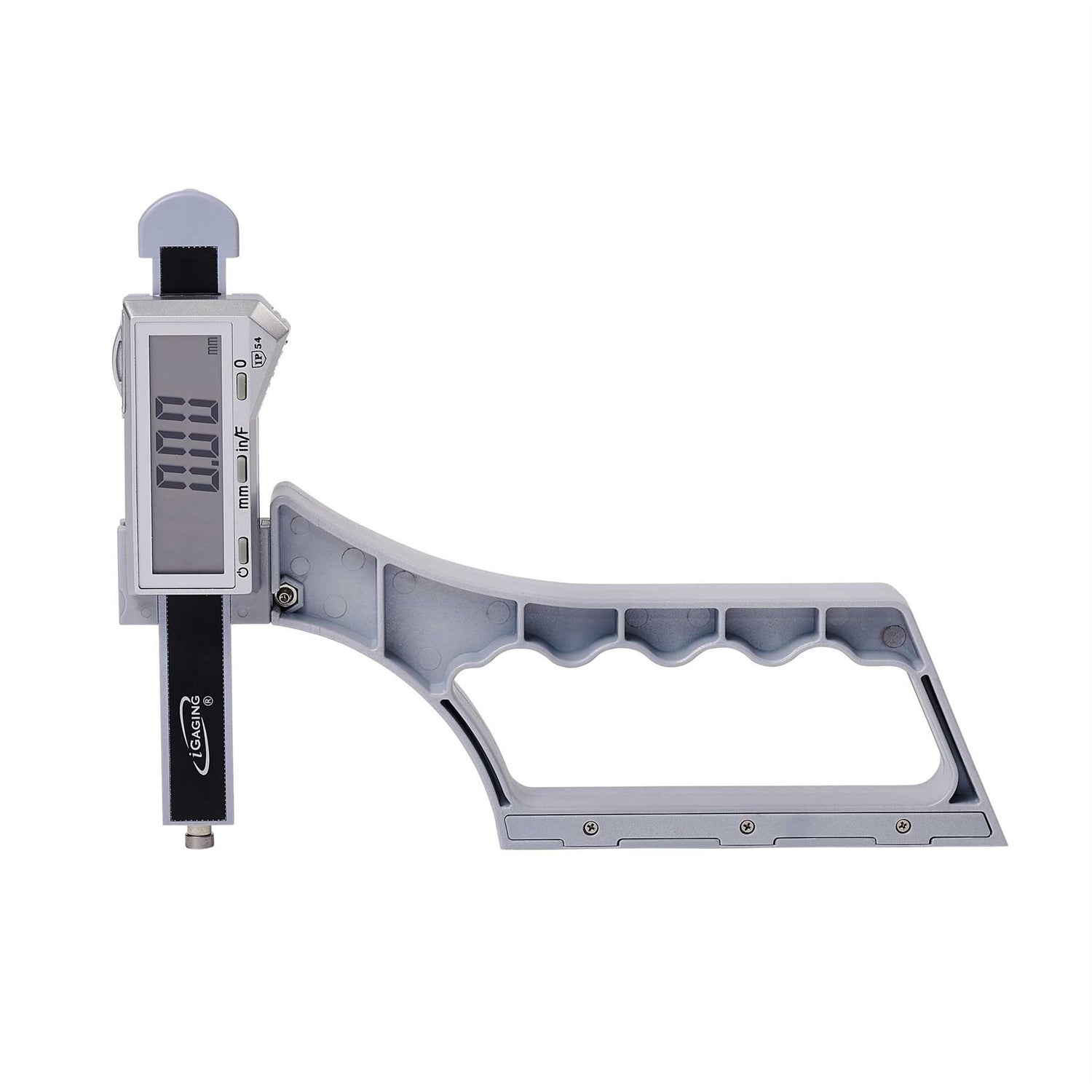

iGaging Snap Check Plus Digital Height and Depth Gauge

IG_35-0907+
by iGaging
£18.29

Snap Check Plus makes machine setting and testing very easy and accurate! Make precision height and depth machine setups on your router table, surface planer, spindle moulder, and table saw first time – every time, without time consuming and frustrating trial and error.

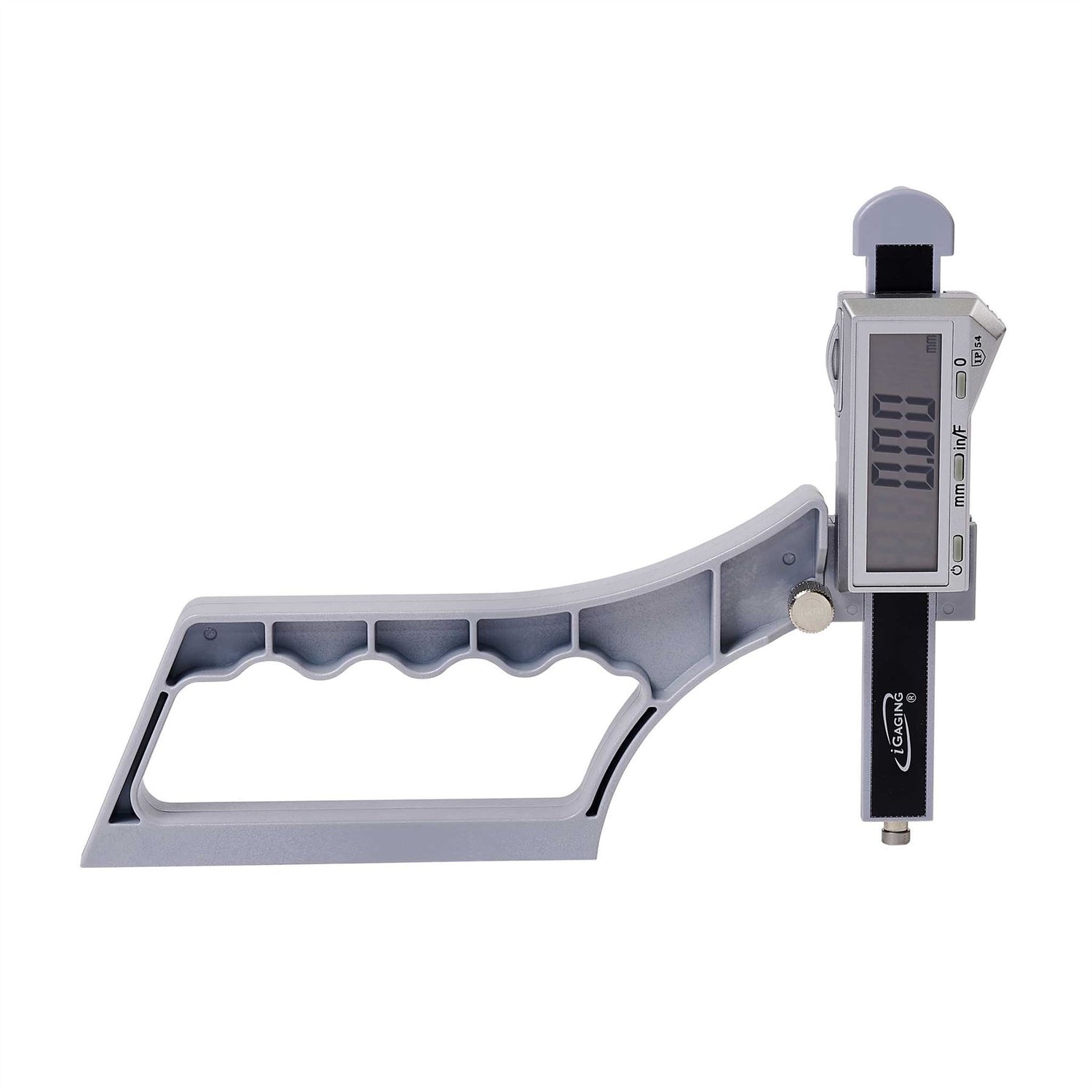

Now available for both right and left handed users!  Just unscrew the locking pin and swap the handle side, making the Snap-Check Plus a versatile measurement gauge.

Snap-Check from iGaging makes woodworking so much more predictable. You'll be amazed at how much time you can save setting up your equipment and testing joints.

Use SNAP-CHECK on the surface planer to set planer knives or check the offset between the in-feed and out-feed tables for depth of cut, for table saw blade height and dado cuts or measure blade run-out to the fence. SNAP-CHECK is a great tool to set your router table, either for cutter height setting or for depth of cut with the cutter forward of the fence, also great for checking offsets between the in-feed and out-feed fences for planing or full face profile cuts.

The SNAP-CHECK has a super large LCD digital display with 14mm high numbers. Precise accuracy can be achieved as millimeters are displayed in 0.01mm (100th mm) increments; decimal inches are displayed in .0005" increments and fractions in 64th's.

The spring-loaded plunger measures from minus 7mm to plus 52mm this unique minus feature is excellent for checking the depth of hinge recesses, grooves and the depth of drilled holes. Two threaded hardened steel flat and ball tip anvils are easily interchanged to cover a variety of applications, whilst the SNAP-CHECK’s Strong magnets hold it steadily in place on steel or cast iron surfaces leaving both hands free for machine adjustments. The handy zero button features can be used either to calibrate on a flat surface or set to establish a differential measurement between two surfaces. The 68mm deep throat reach makes it one of the only tools to be able to measure spindle moulder cutter height and depth during set up. The auto off feature saves on battery life and is supplied with a spare 3V CR2032.

Features

  • Spring-loaded plunger
  • Strong Magnet base
  • Right and left handed option
  • 3-Way Reading: Inch, Metric, and Fraction
  • Multi function measuring: Router, Saw, Planer, Spindle
  • Easy to use and carry
  • Large clear LCD display
  • 3Way Reading: ”, 0.1mm, 0.0005”, 1/64”
  • Measuring Range: -7 to 52mm
  • Accuracy: ±0.001” / 1”
  • Battery: 3V CR2032 included

iGaging's Snap Check is such a cool tool, the magnetic base and sprung plunge bar make it ideal for measuring surfacer table offsets, setting up planer blocks and router cutters both for height and projection from fence.

FREE UK Delivery on all orders over £40 within the UK Mainland, Northern Ireland, Highlands & Islands. Only £4.50 on orders under £40.

Order before 2pm and we'll aim to despatch your order the same day, Monday to Friday. Please allow 1 to 2 working days for delivery. For the lastest COVID-19 delivery information please click here.

We are Shipping to the EU

Click here to find out more about changes to VAT / import taxes

Reviews

Customer Reviews

Based on 15 reviews
80%
(12)
20%
(3)
0%
(0)
0%
(0)
0%
(0)
S
S.o.
Excellent

very accurate and nicely made

D
D.C.
Simple but so useful

Love the shape of this gauge, it comes in handy for all sorts of jobs around the workshop. Really can’t fault the quality of this tool or the service provided by Woodworkers Workshop.

r
r.w.
Good clear view

Seems accurate, easy to use ,fast delivery

b
b.f.
easy setting up

a brilliant aid for setting up on the tabls saw and router table, wish i had purchased this guage earlier.

K
K.R.
Very good - almost!

Accurate and easy to use. However, the pin that holds the return spring, is not solid enough. It broke on my unit and had to be replaced with a screw.
