Authorised Dealer  |  iGaging  |  SKU: IG_35-0906

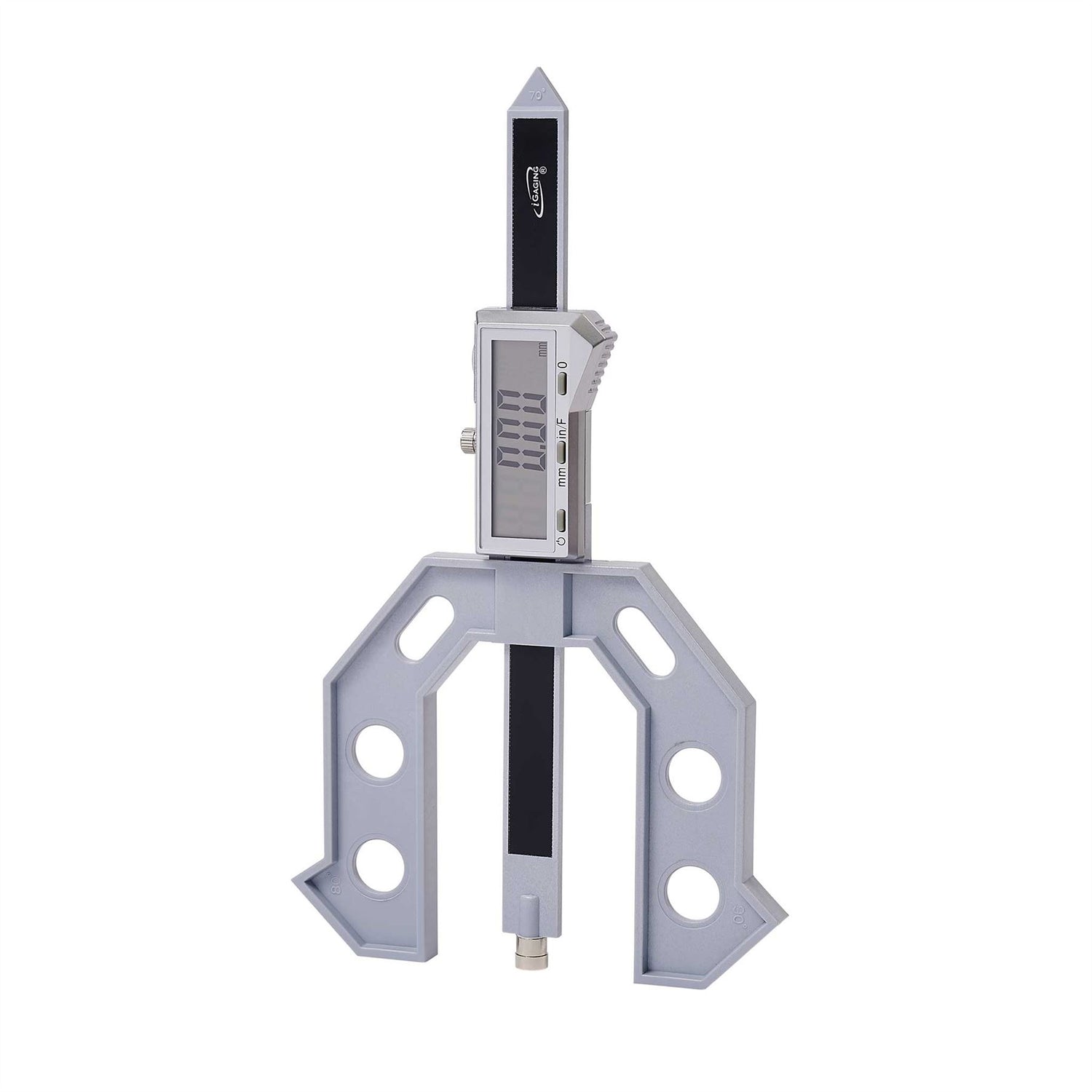

iGaging Digital Height and Depth Gauge

Regular price £24.95
Tax included
  • Warranty: 1 Year & Lifetime Customer Support
  • Price Match Promise
  • Order by 2pm for Same Day Dispatch – Mon to Fri
  • UK Delivery from £4.50 | FREE over £85
  • UK Next Day Delivery Available
  • Click & Collect Available
  • 45 Day Hassle-free Returns
  • Worldwide Shipping | No Hidden Costs

Description

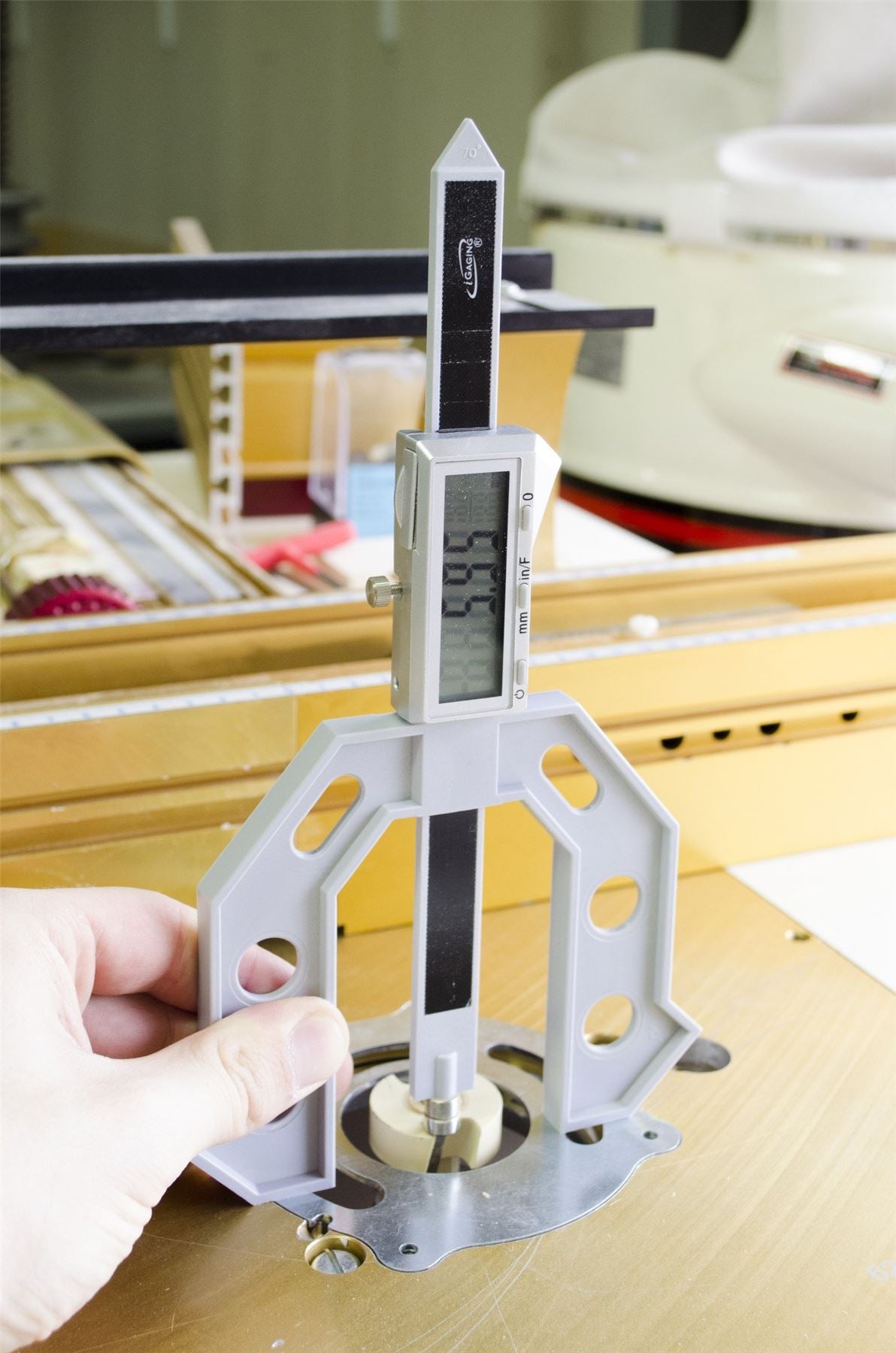

iGaging Digital Height and Depth Gauge helps you measure height and fence depth of router cutters with greater accuracy! This 3-in-1 gauge combines the functions of three tools: a depth gauge, height gauge and thickness gauge.

Features super large LCD display and housed in a heavy-duty but low profile flat backed polycarbonate frame which allows it to stand freely up against a fence or to sit flat against a bed for checking cutter depth from a fence, with an internal span of 60mm between the legs.

The frame allows the tool to be set vertically, horizontally or uniquely at 45 degrees to measure weld thicknesses or into blind corners. The frame also has built in gauges to measure angles at 70, 80 and 90 degrees and a hole in the frame to allow it to be hung up out of the way.

Measure router cutter or tooling hight up to 80mm (0-3.1”) with a maximum depth of 70mm (2.90") for measuring mortices and slots exchanging the threaded flat anvil pad for the threaded pin anvil. Easily switches readings from metric to imperial or fractions at a touch.

Accurately toggle between the pre-set and zero measuring modes. Precise accuracy can be achieved as millimetres are displayed in 0.01mm (50th mm) increments, decimal inches are displayed in .0005" increments and fractions in 64th's.

Two hardened steel measuring anvils (flat and point) are included. Supplied with a 3V CR2032 battery.

Includes

  • One iGaging Digital Height and Depth Gauge
  • Two Batteries
  • One flat attachment and one point attachment
