iGaging Snap Check Plus Digital Height and Depth Gauge
Description
Description

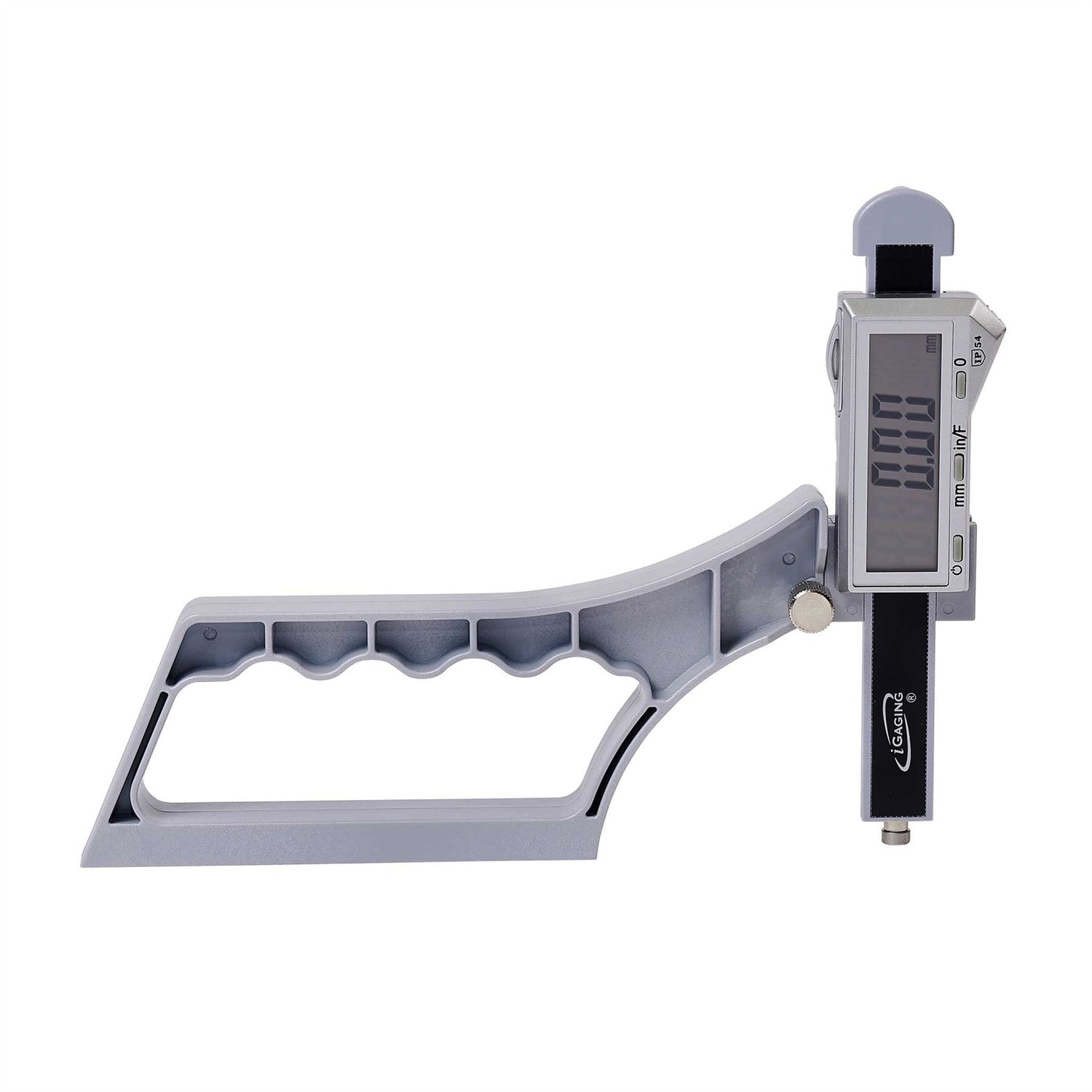

Snap Check Plus makes machine setting and testing very easy and accurate! Make precision height and depth machine setups on your router table, surface planer, spindle moulder, and table saw first time – every time, without time consuming and frustrating trial and error.

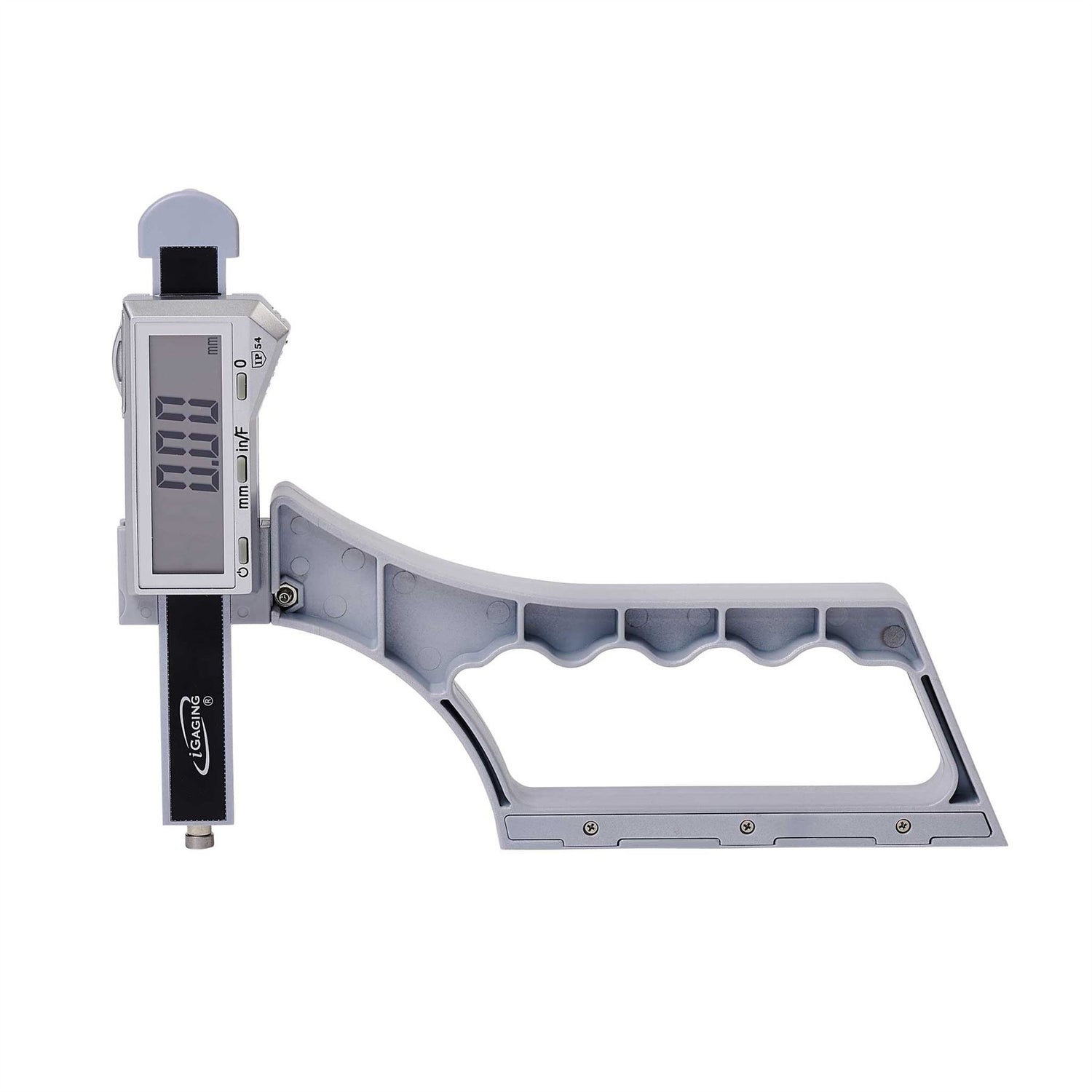

Now available for both right and left handed users! Just unscrew the locking pin and swap the handle side, making the Snap-Check Plus a versatile measurement gauge.
Snap-Check from iGaging makes woodworking so much more predictable. You'll be amazed at how much time you can save setting up your equipment and testing joints.
Use SNAP-CHECK on the surface planer to set planer knives or check the offset between the in-feed and out-feed tables for depth of cut, for table saw blade height and dado cuts or measure blade run-out to the fence. SNAP-CHECK is a great tool to set your router table, either for cutter height setting or for depth of cut with the cutter forward of the fence, also great for checking offsets between the in-feed and out-feed fences for planing or full face profile cuts.
The SNAP-CHECK has a super large LCD digital display with 14mm high numbers. Precise accuracy can be achieved as millimeters are displayed in 0.01mm (100th mm) increments; decimal inches are displayed in .0005" increments and fractions in 64th's.
The spring-loaded plunger measures from minus 7mm to plus 52mm this unique minus feature is excellent for checking the depth of hinge recesses, grooves and the depth of drilled holes. Two threaded hardened steel flat and ball tip anvils are easily interchanged to cover a variety of applications, whilst the SNAP-CHECK’s Strong magnets hold it steadily in place on steel or cast iron surfaces leaving both hands free for machine adjustments. The handy zero button features can be used either to calibrate on a flat surface or set to establish a differential measurement between two surfaces. The 68mm deep throat reach makes it one of the only tools to be able to measure spindle moulder cutter height and depth during set up. The auto off feature saves on battery life and is supplied with a spare 3V CR2032.
Features
- Spring-loaded plunger
- Strong Magnet base
- Right and left handed option
- 3-Way Reading: Inch, Metric, and Fraction
- Multi function measuring: Router, Saw, Planer, Spindle
- Easy to use and carry
- Large clear LCD display
- 3Way Reading: ”, 0.1mm, 0.0005”, 1/64”
- Measuring Range: -7 to 52mm
- Accuracy: ±0.001” / 1”
- Battery: 3V CR2032 included
