Authorised Dealer  |  iGaging  |  SKU: IG35-0929-18+F

iGaging iP54 EZ Digital Miter Gauge with 450mm/18" Fence

Regular price £134.95
Tax included
  • Warranty: 1 Year & Lifetime Customer Support
  • Price Match Promise
  • Order by 2pm for Same Day Dispatch – Mon to Fri
  • UK Delivery from £4.50 | FREE over £85
  • UK Next Day Delivery Available
  • Click & Collect Available
  • 45 Day Hassle-free Returns
  • Worldwide Shipping | No Hidden Costs

Description

An error of only a fraction of a degree can amount to unsightly gaps in the corners of mitered boxes and frames. The iGaging EZ Digital Miter Gauge solves the problem with digital precision to 1/10th of a degree.

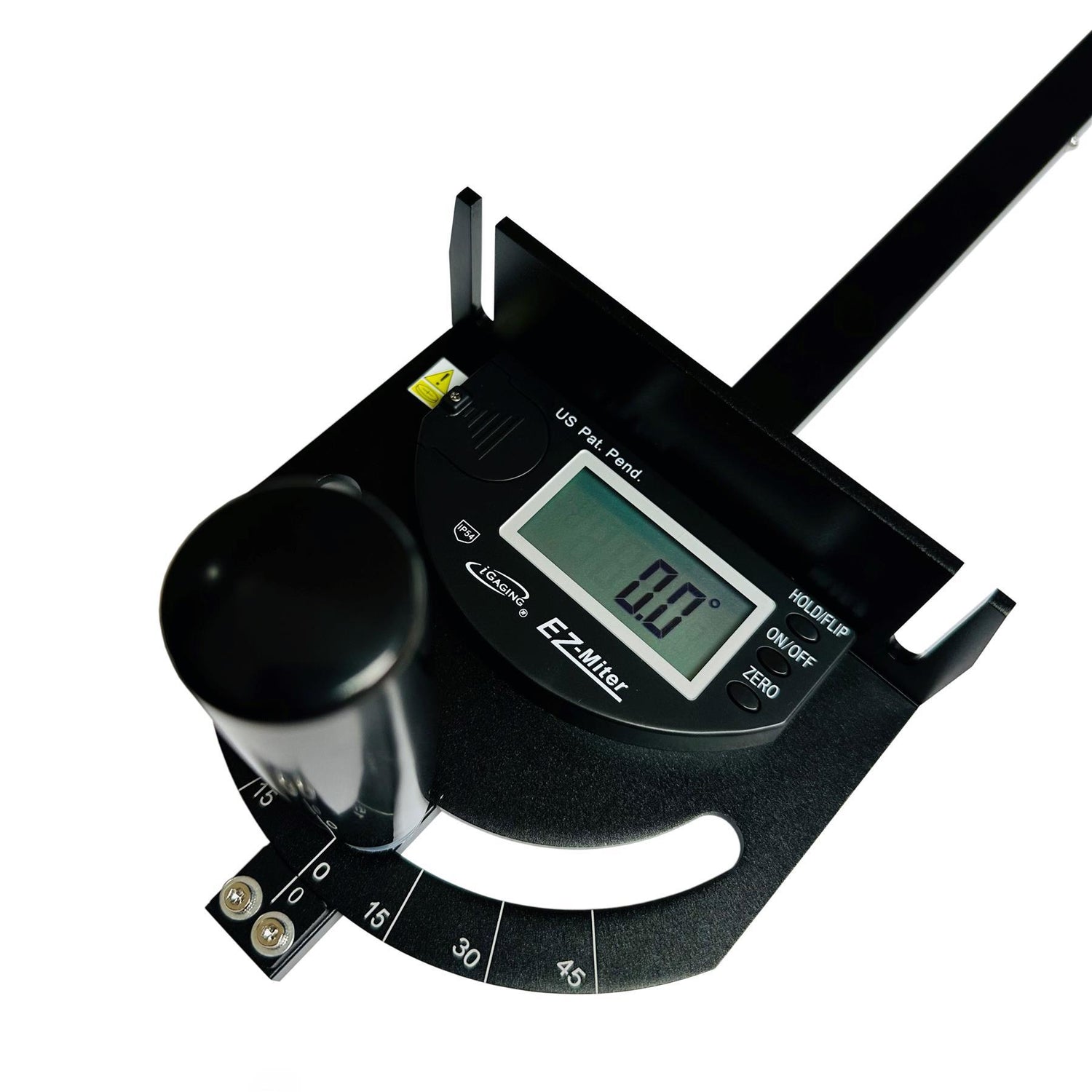

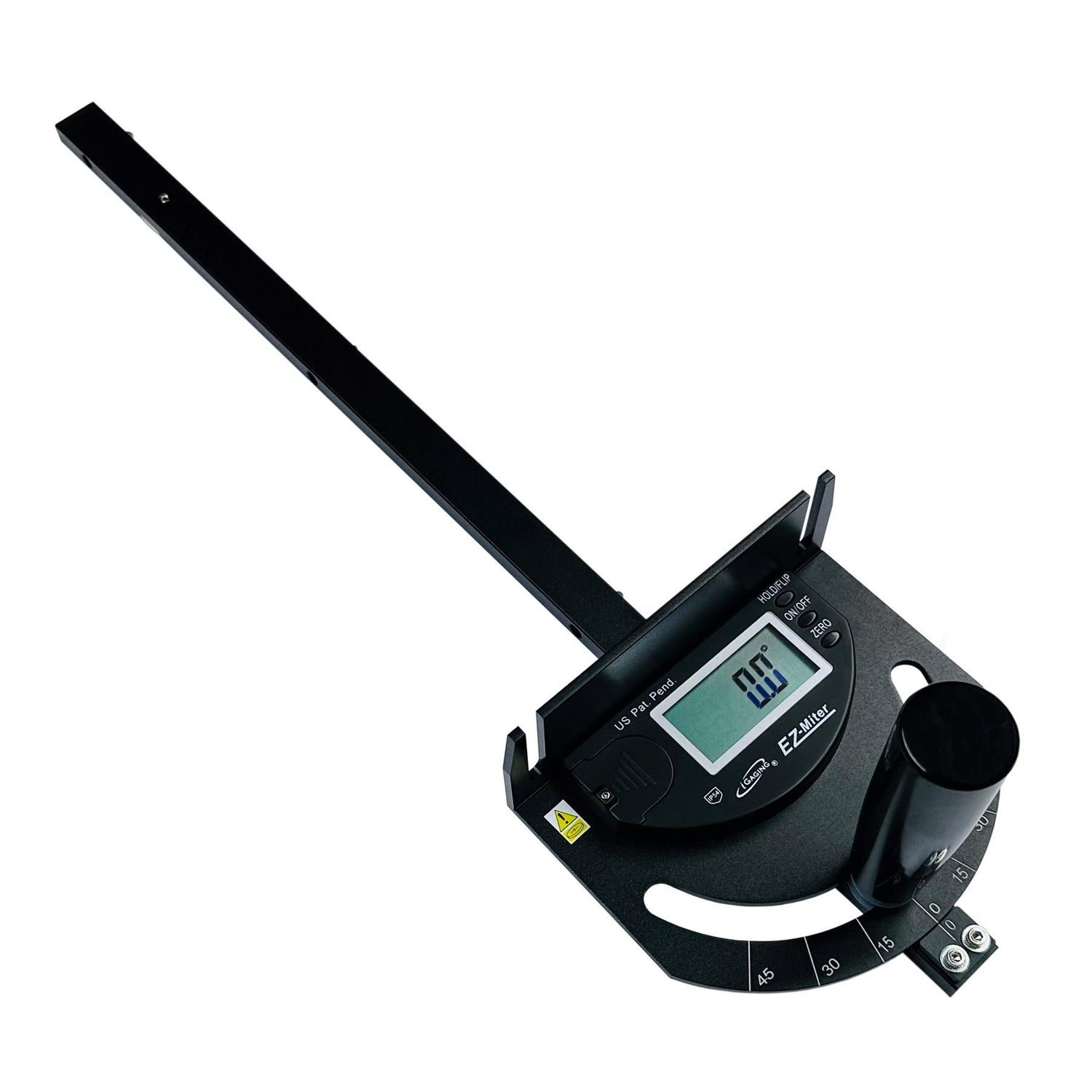

This mitre gauge has an easy-to-read digital display and is constructed from machined aluminium. The gauge is suitable for square crosscuts and acute or obtuse angles up to 70°. A cursor helps quickly find the approximate angle location, while the easy-to-read digital display enables fine-tuning to 1/10th of a degree.

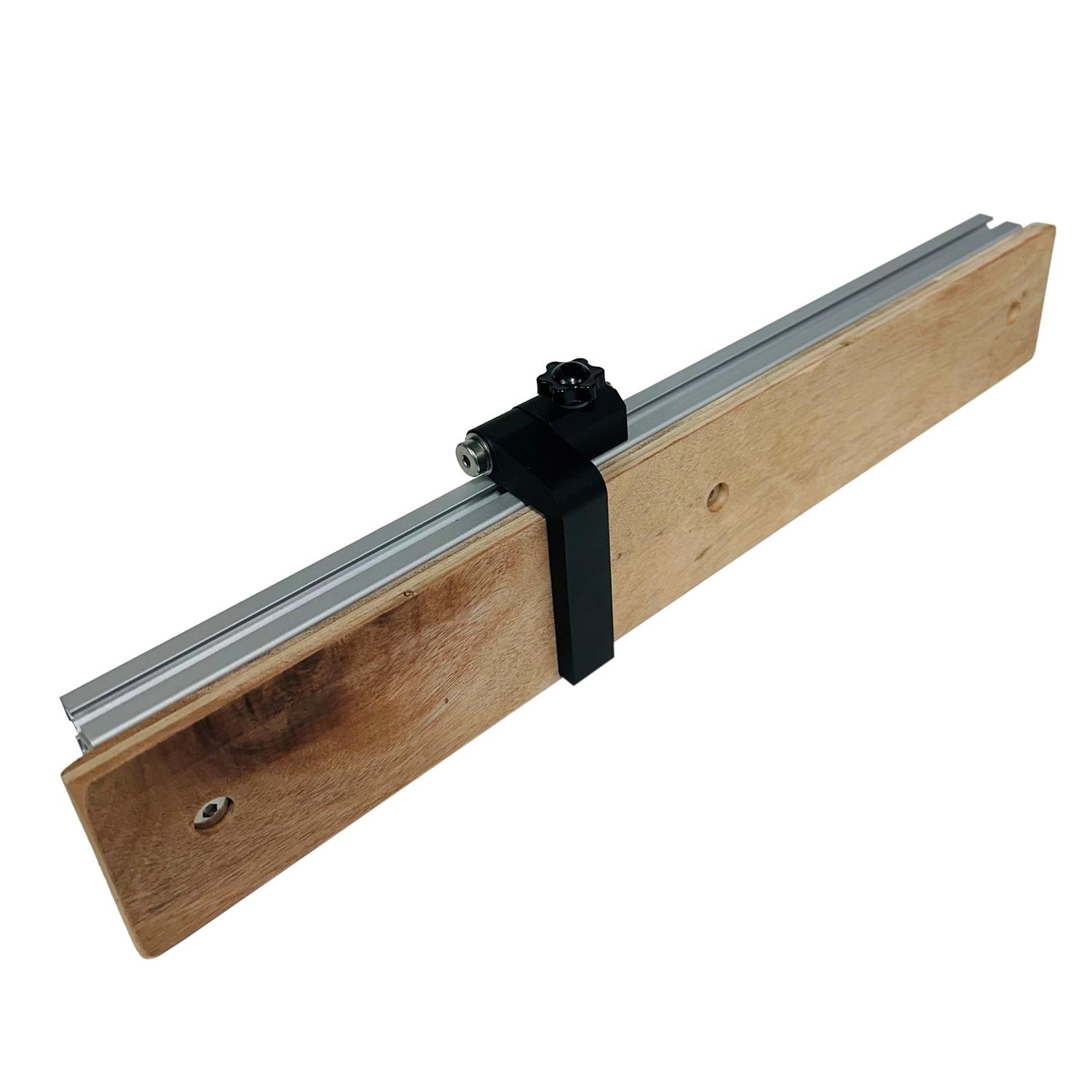

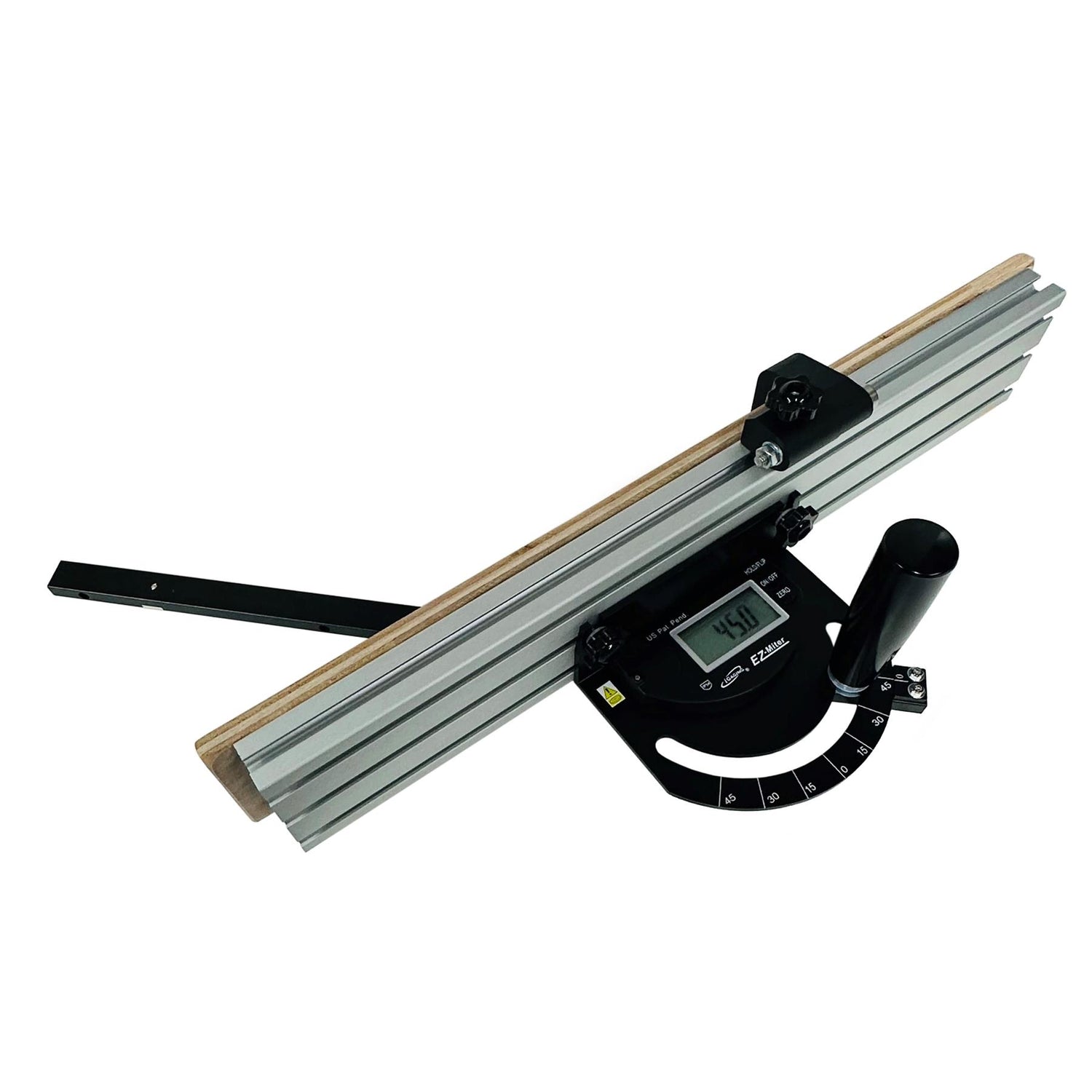

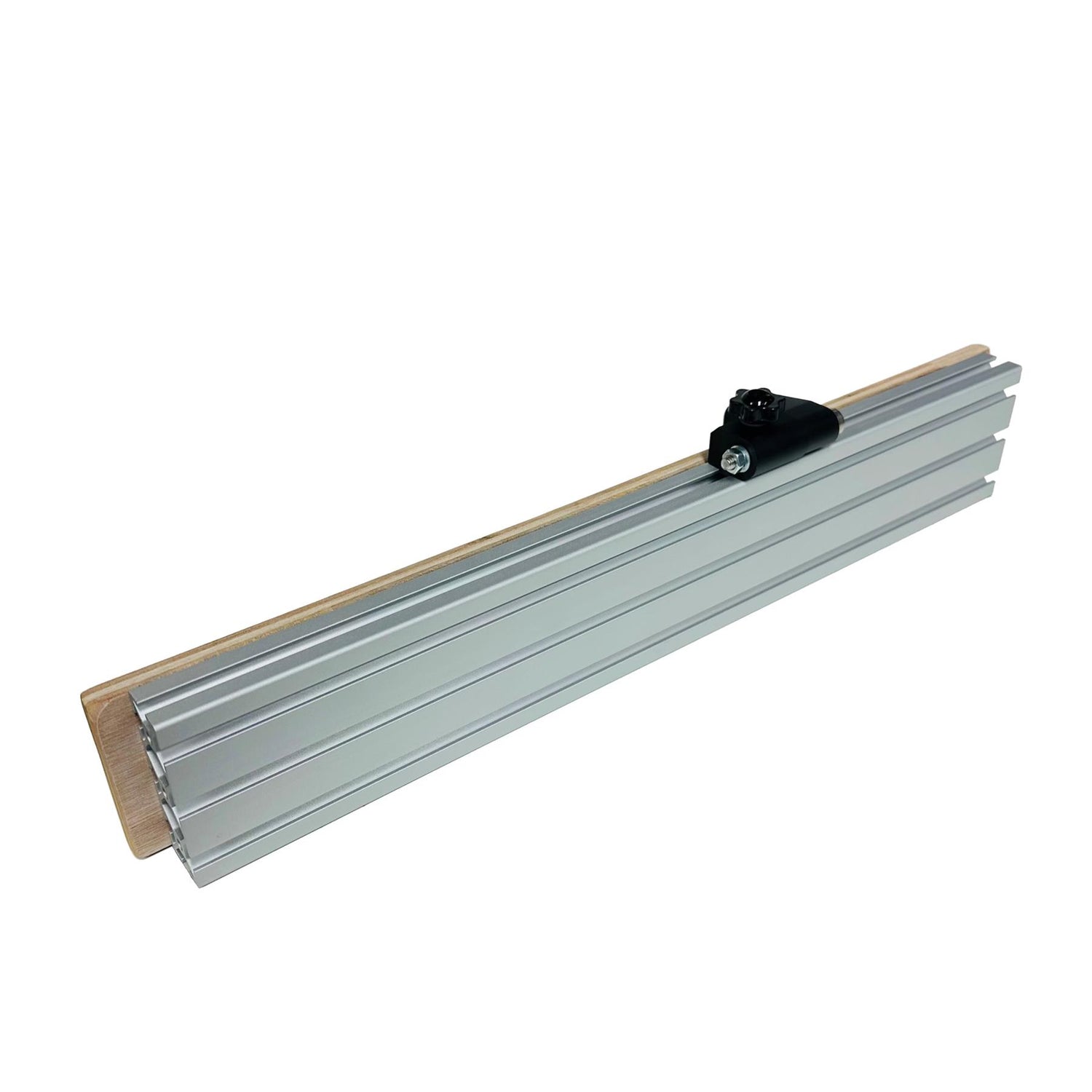

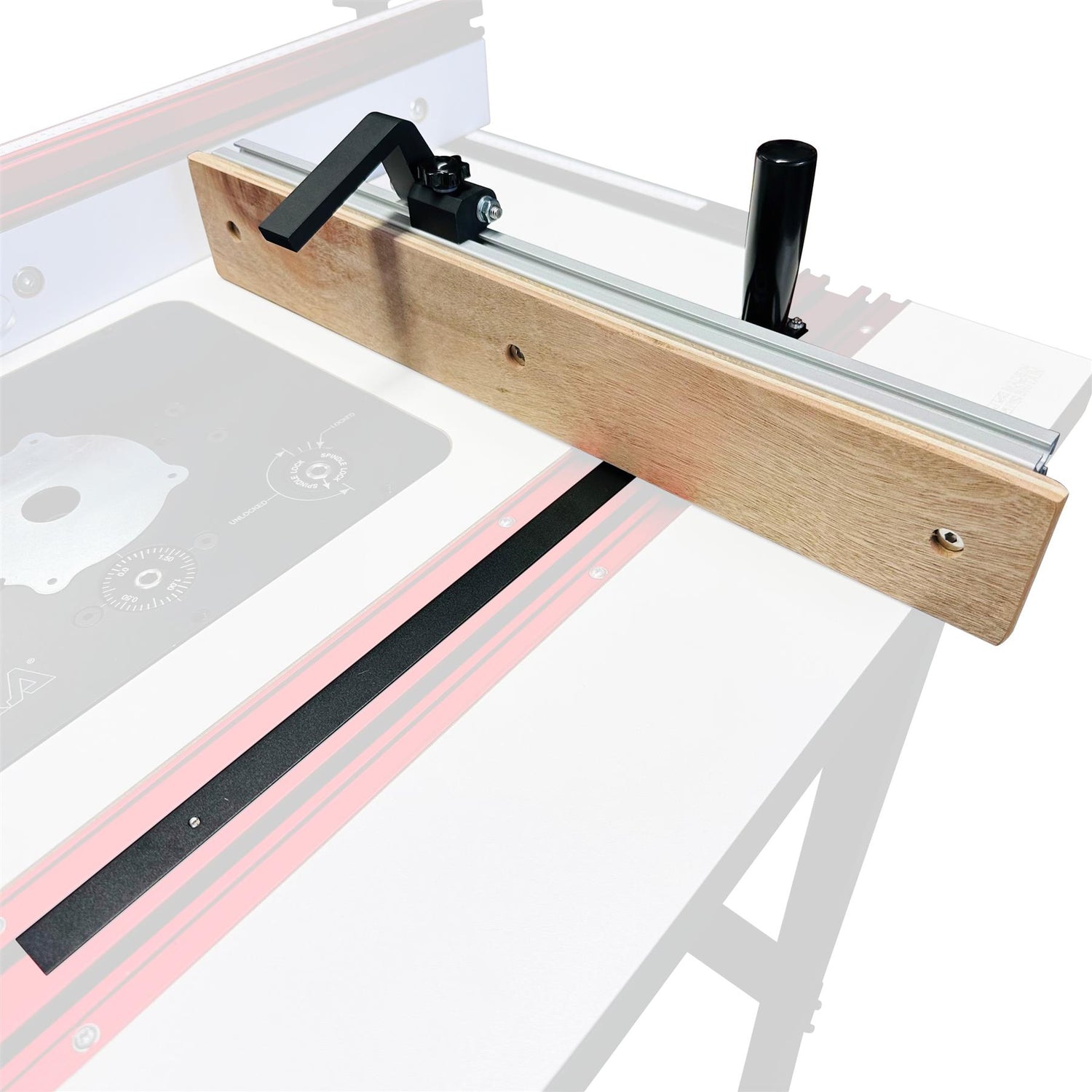

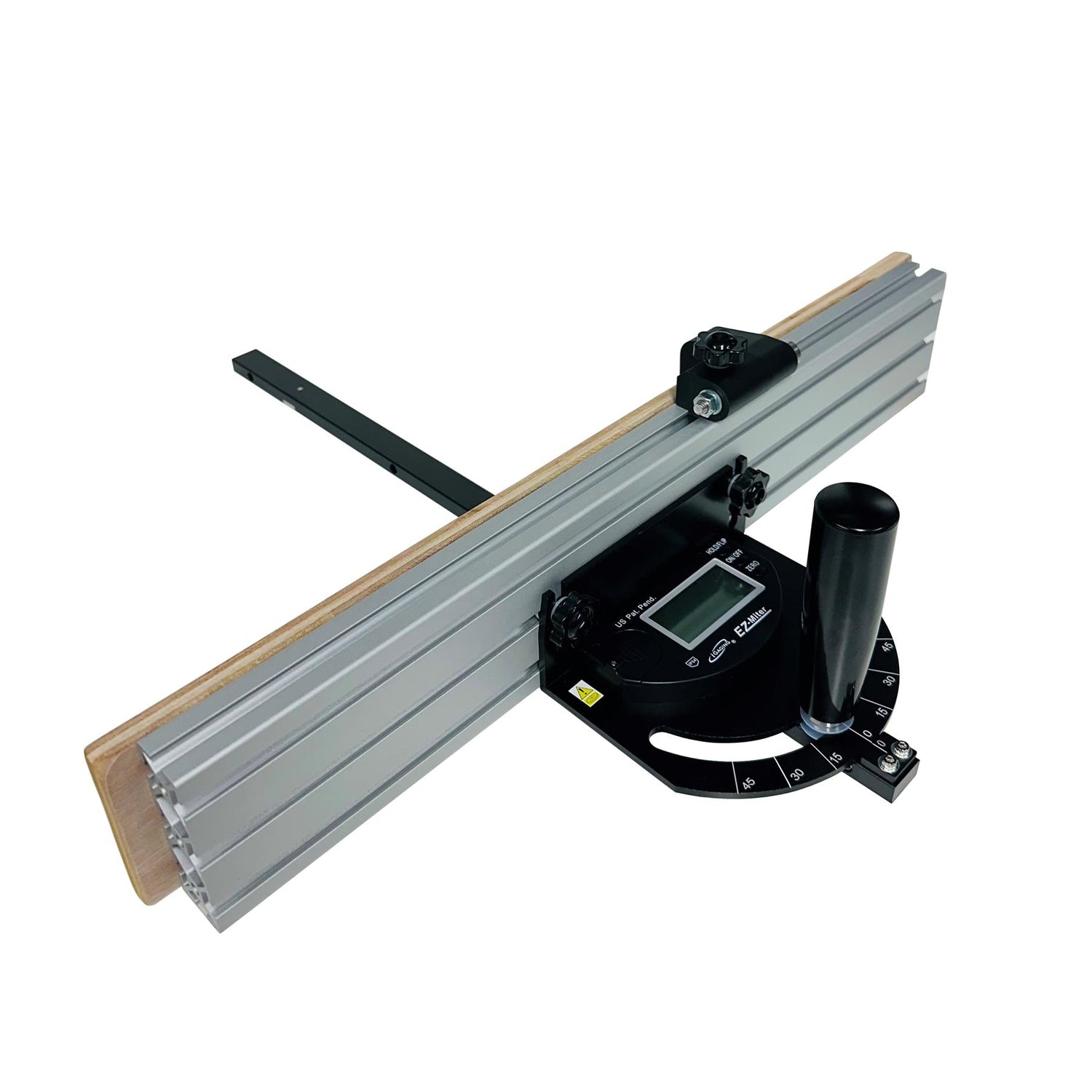

The mitre gauge head is semicircular with a spring-loaded push handle, which rotates to clamp the head at the correct angle. The unit attaches to the included 450mm/18" or 24" extruded aluminium fence with three 1/4" T-slots on the front and back faces and one on the top and bottom. Using the centre T-slot on the back face, the mitre head can quickly attach to the fence.

The 18" (457mm) mitre bar with adjustable spring plungers fits standard 3/4" x 3/8" (19mm x 9.5mm) mitre T-slots perfectly, eliminating play while retaining smooth sliding.

The miter head unit requires a standard CR2032 battery and powers up instantly with a press of the on/off button. There is also a zero button for calibration and a hold/flip button. The display turns off after 5 minutes to prolong battery life.

Features:

  • LCD Display Reads 70°-0°-70°
  • Resolution: 0.05°
  • Accuracy: 0.2°
  • Mitre Bar: 457mm x 19mm x 9.5mm (18" x 3/4" x 3/8")
  • Locking Push Handle
  • Battery powered with CR2032 button battery
