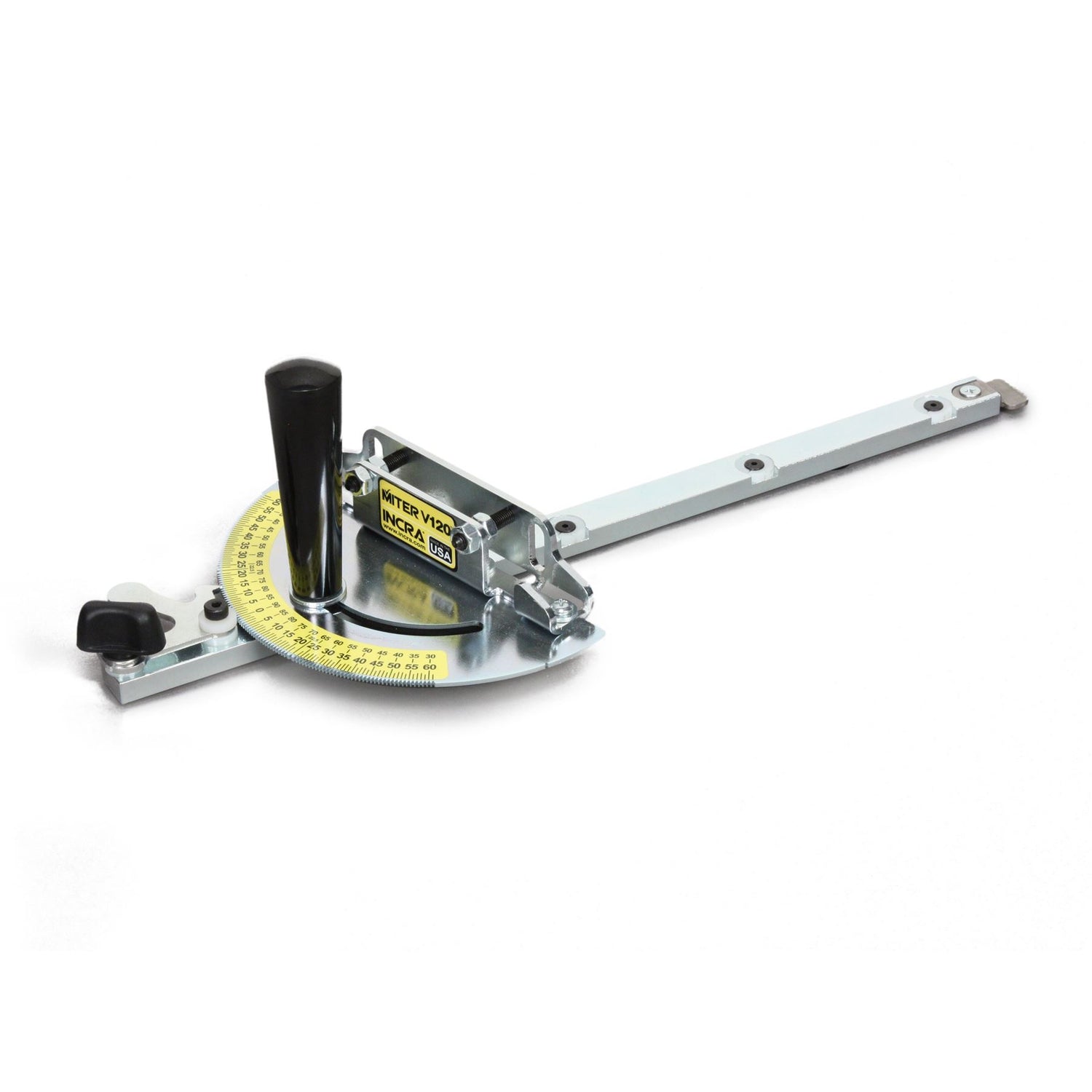

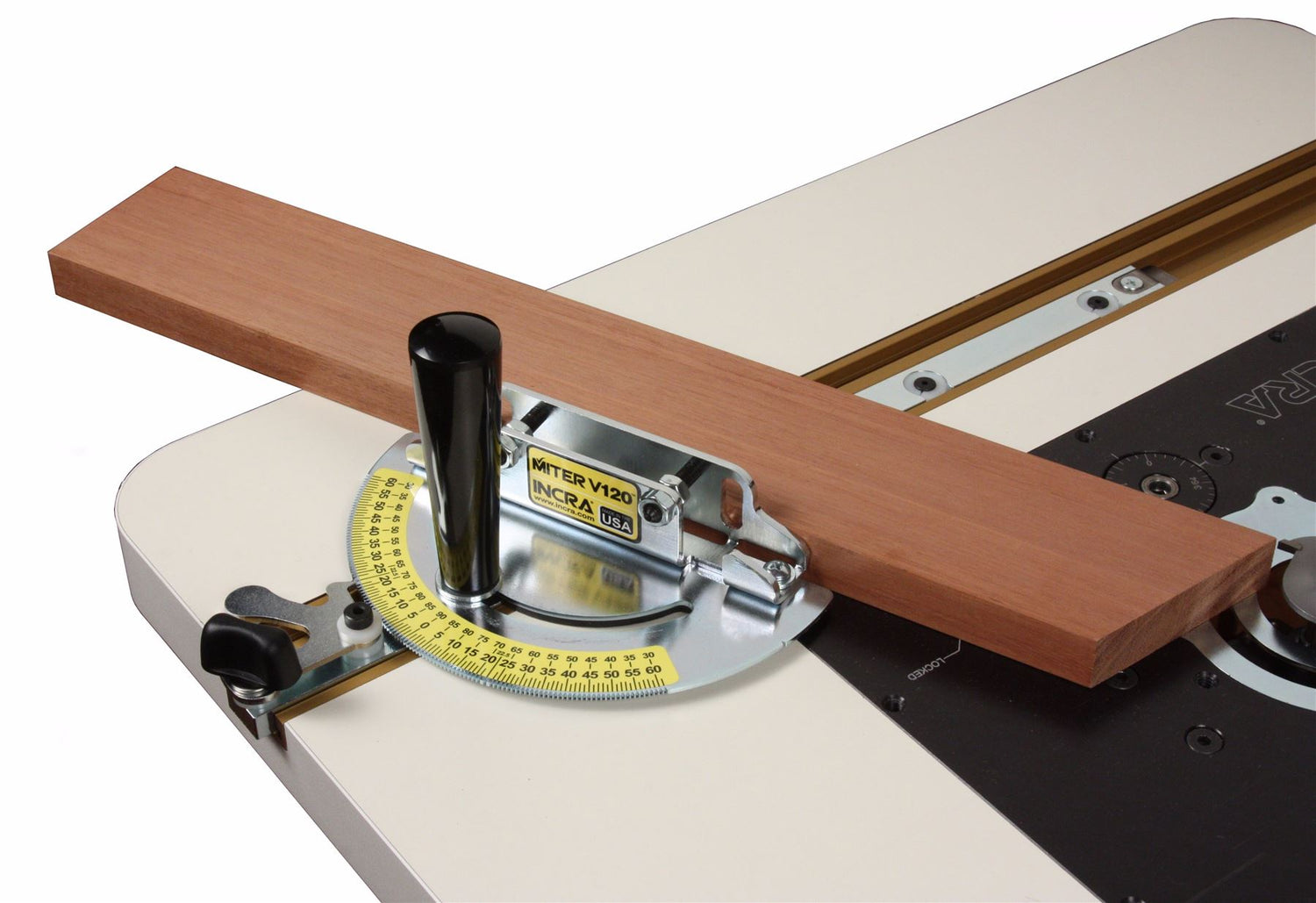

INCRA - Miter Gauge - V120INC_MITV120

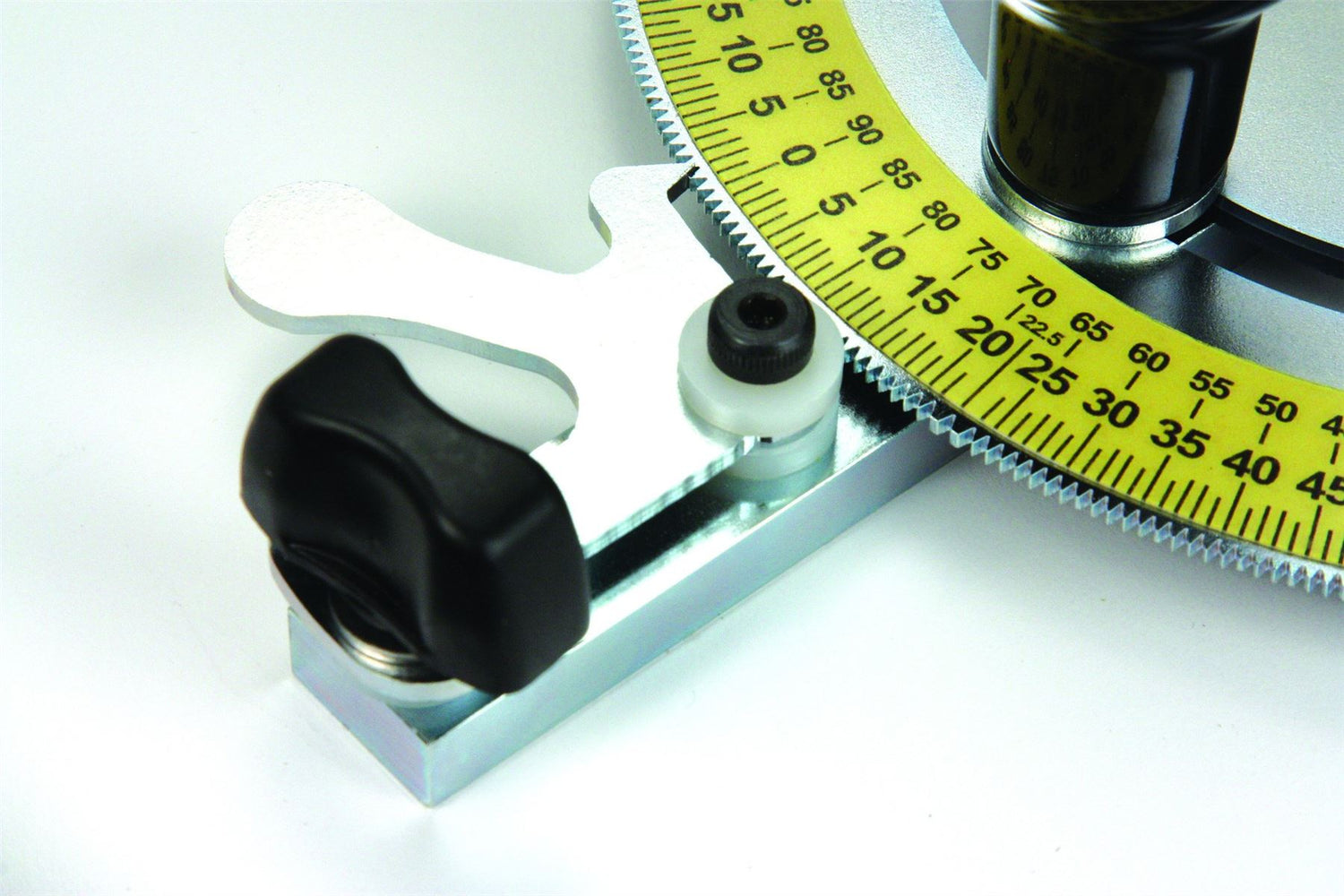

INCRA - Miter Gauge - V120 features an incredible 120 angle stops which are laser cut into the steel protractor, with a stop available for every whole degree and two special stops at 22.5 degrees for cutting eight-sided frames and mouldings.
Don't let the small size fool you! The NEW Miter V120 puts high-resolution, repeatable accuracy within the budget of every woodworkers.
All of that precision is built into a sturdy, no-fuss package that's compact enough to fit machines where other miter gauges can be a tight squeeze, such as band saws and disc sanders. All-steel construction makes it an excellent long-term investment, and it's also upgradable as your needs change - the V120 can be equipped at any time with any IncraLOCK miter gauge fence and stop.

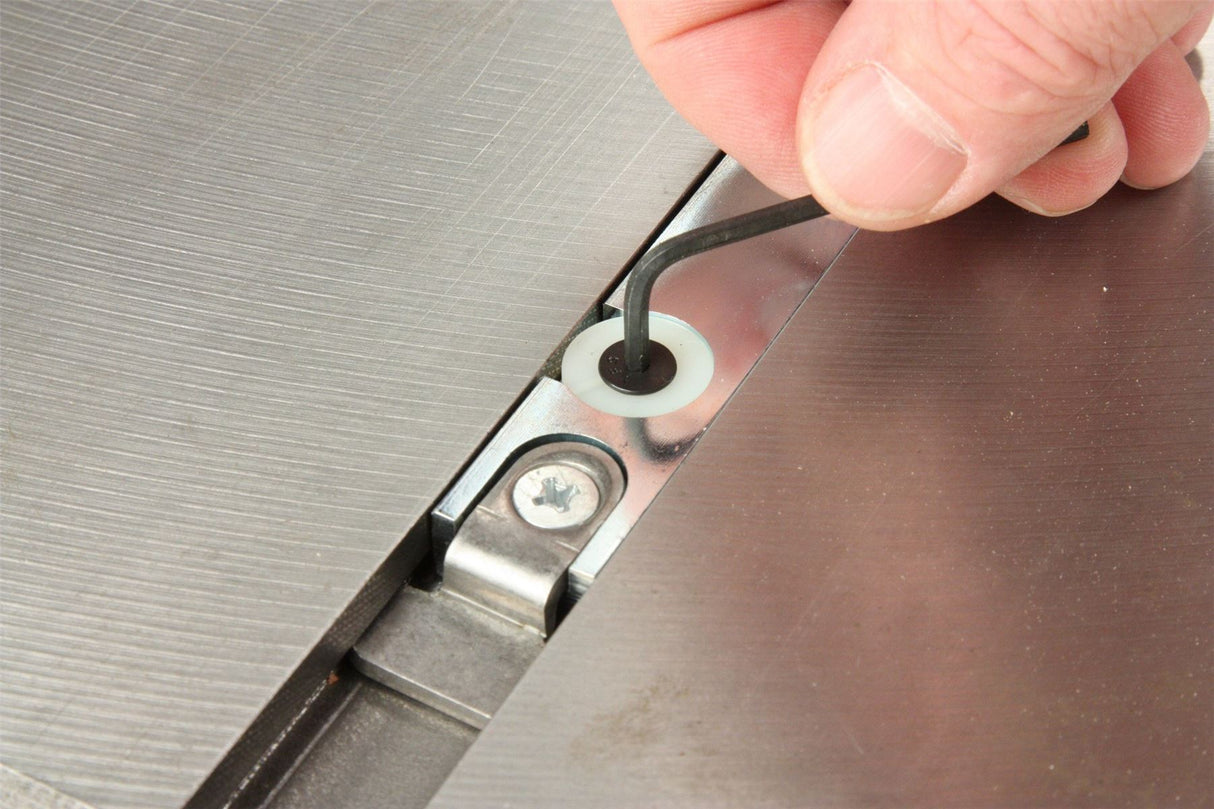

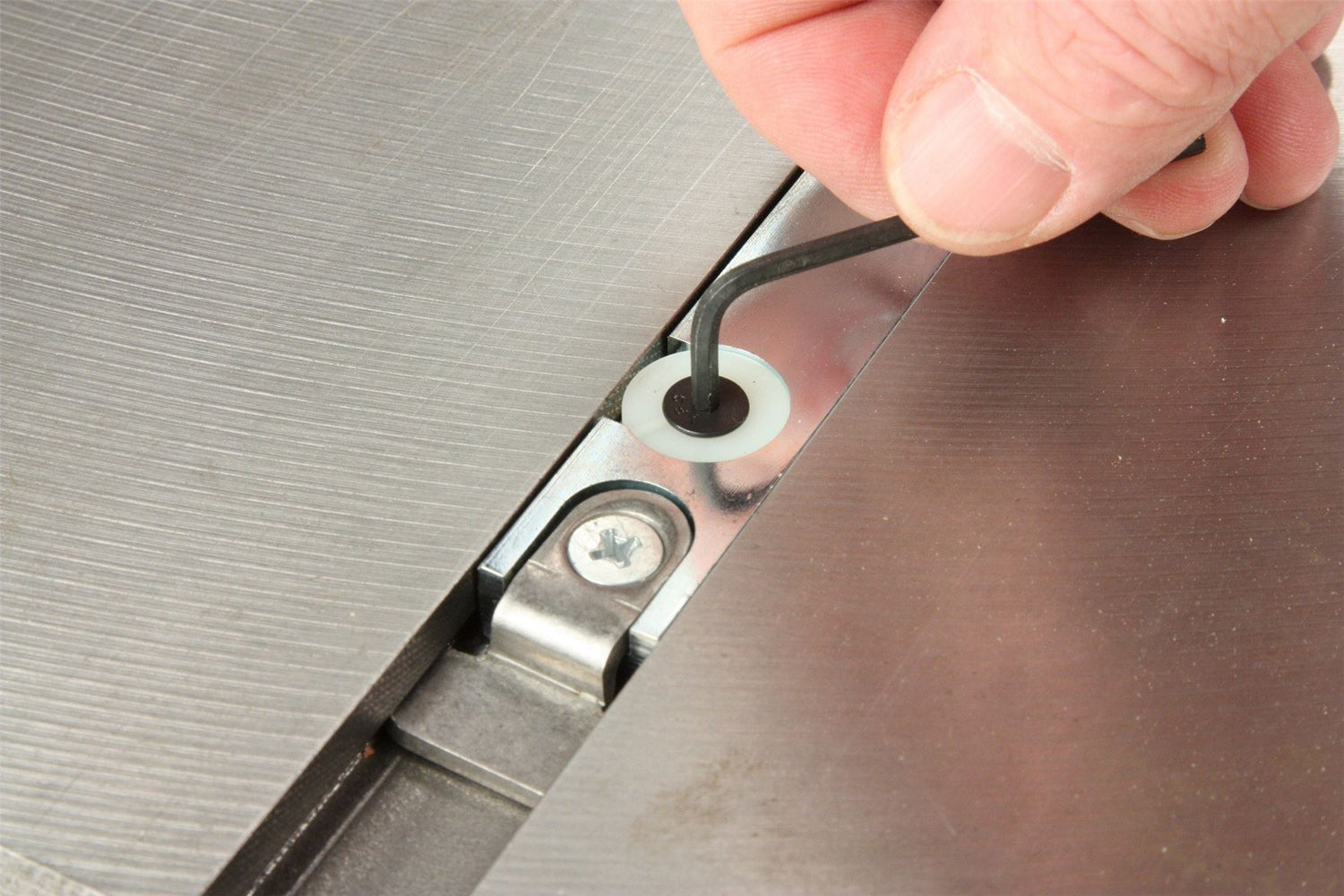

The steel miter bar is equipped with four patented GlideLOCK adjustment points for a perfect, low-friction fit in a wide variety of machines using a standard miter slot. As with all INCRA crosscutting tools, a removable T-slot retaining clip is included, and the adjusters are accessible from the top for quicker set up than traditional miter bars with side-mounted adjusters.
- 120 Positive Angle Stops
- GlideLOCK Miter Bar with 4 Expansion Points
- 1° Increments
- Special Stops at Plus or Minus 22.5°
- Plus or Minus 60° Range
The V120's adjustable miter bar will fit square-sided miter slots 3/4" wide, 3/8" deep, and either with or without a 15/16" wide T-slot at the bottom. The miter bar's adjustment range accommodates slot widths between 0.740" to 0.760".
INCRA Mitre Gauges are suitable for mitre tracks or channels with a dimension of 3/4in (wide) x 3/8in (deep) - (19mm x 10mm).
