Rockler Deluxe Spline Jig
Splines strengthen mitred joints while adding a decorative feature. I like this jig because it delivers accurate, repeatable results on both a table saw and router table.
Rockler Deluxe Spline Jig is backordered and will ship as soon as it is back in stock.
Rockler Deluxe Spline Jig
Product Highlights
Product Highlights
- Produces decorative and joint-strengthening splines in mitred corners
- Compatible with both table saws and router tables
- Adjustable fences provide fast, repeatable positioning
- Zero-clearance inserts help reduce tear-out for cleaner cuts
- Adjustable aluminium mitre bar eliminates play for smooth, accurate operation
Description
Description
Decorative Joinery with Added Strength
Splined mitre joints not only create an attractive feature but also significantly reinforce mitred corners. Whether you're building jewellery boxes, keepsake boxes, cabinets or picture frames, the Rockler Deluxe Spline Jig delivers accurate, repeatable spline cuts with exceptional control.

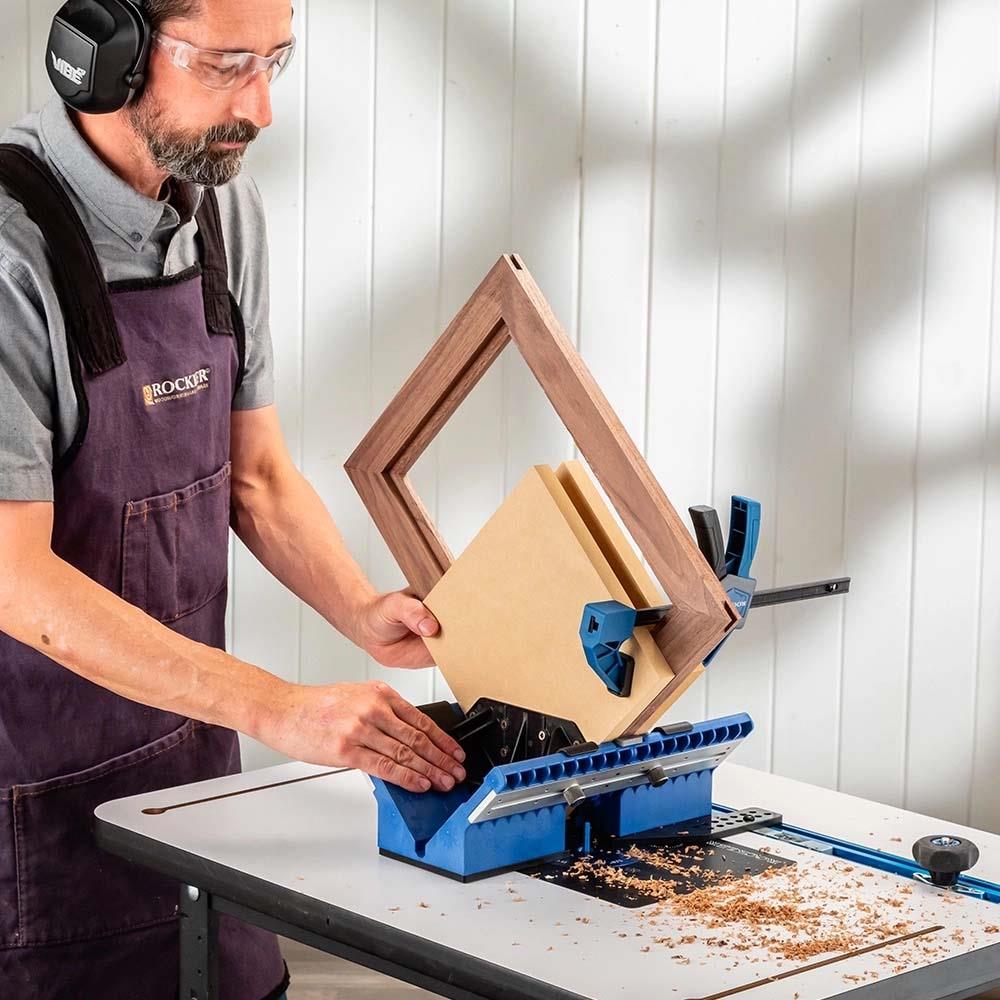

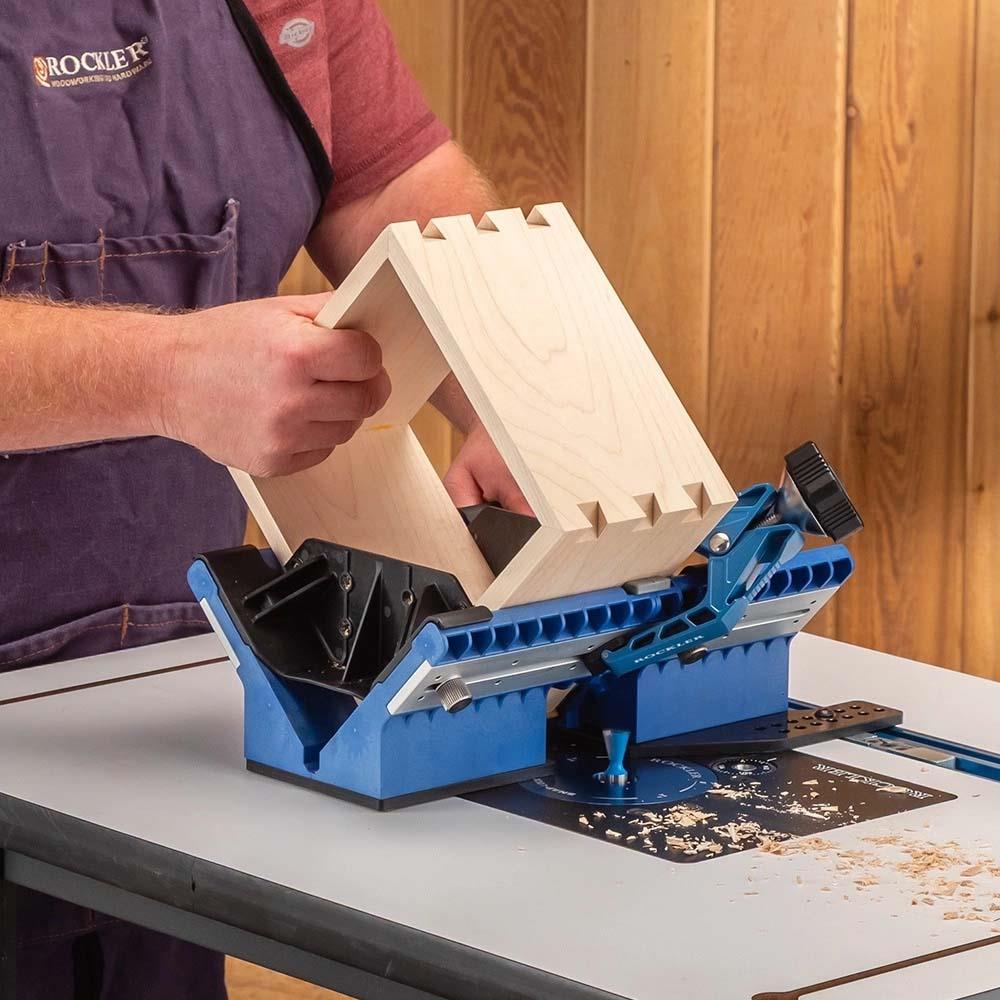

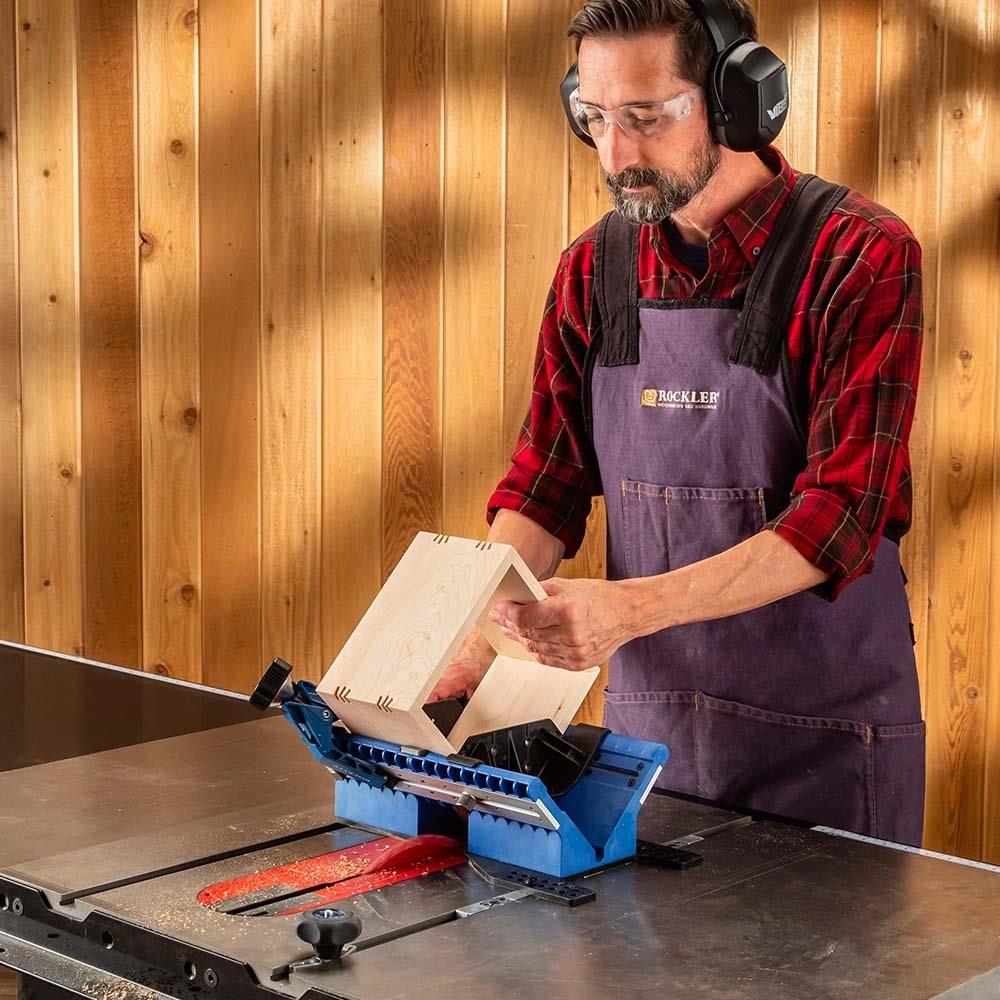

One Jig for Two Machines
The adjustable design allows the jig to be used on both table saws and router tables. It is compatible with standard 19 × 9.5mm (3/4" × 3/8") mitre slots positioned 108–194mm (4-1/4"–7-5/8") from the centre of the cut.
Greater Creative Freedom

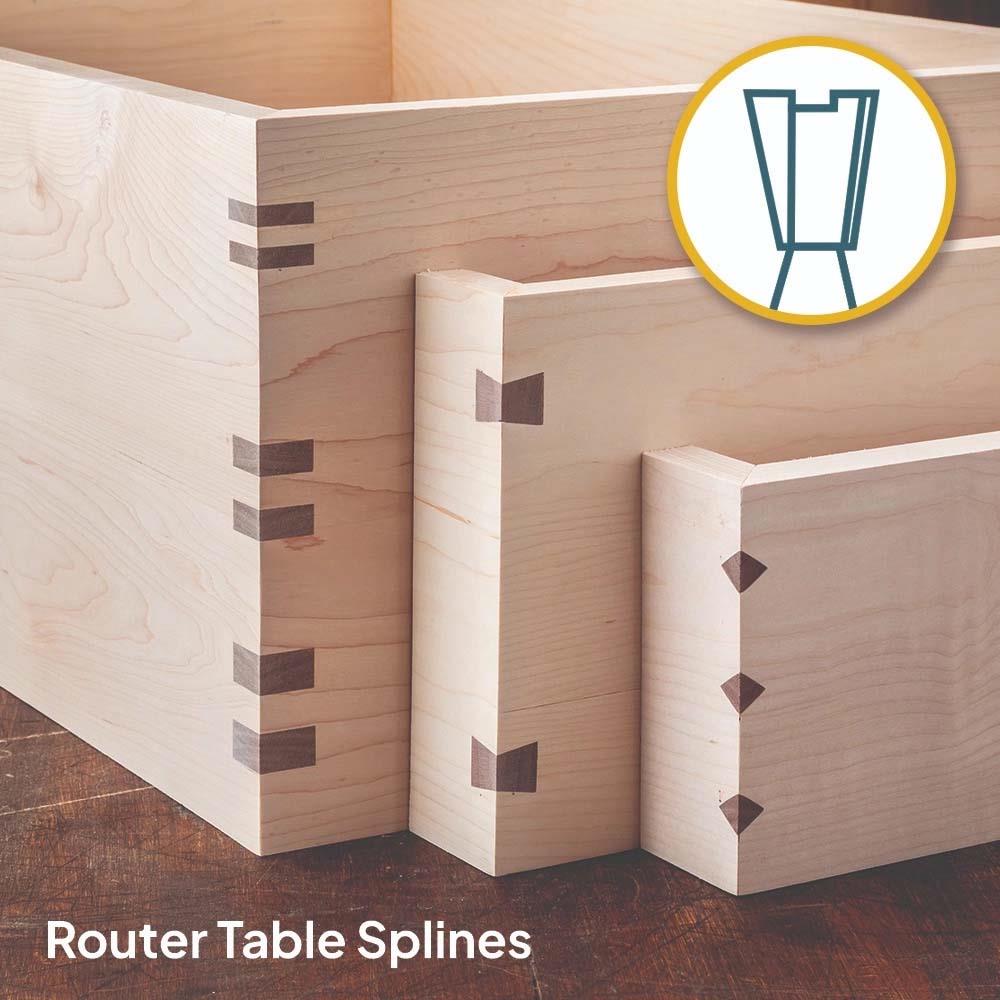

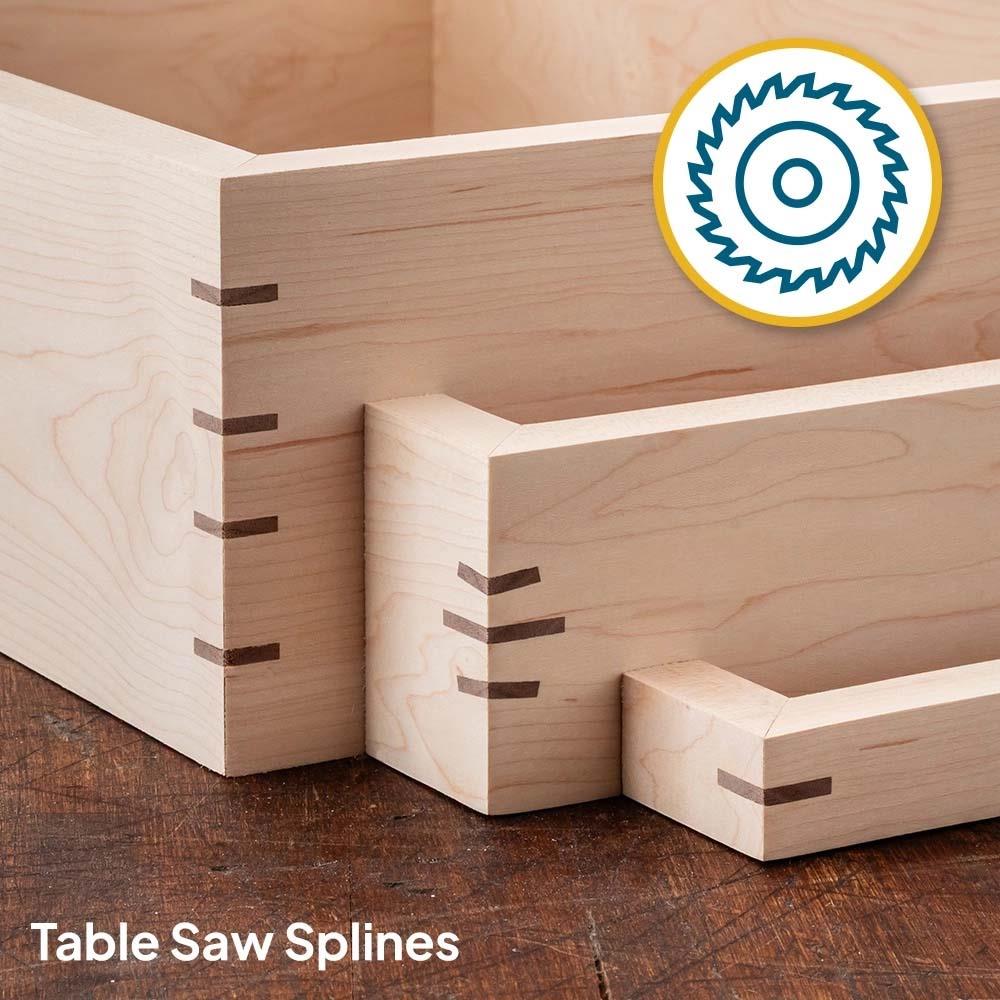

Use V-groove, dovetail or other router cutters to create decorative inlays, or tilt the table saw blade to produce angled splines. Adjustable fences make it easy to produce identical cuts.
Built for Accuracy
A glass-reinforced body with internal steel support plates provides rigidity, while the precision aluminium mitre bar features adjustable expansion blocks for a smooth, play-free fit. Replaceable MDF zero-clearance inserts help minimise tear-out.
Safe and Easy to Use
The included mitre stop prevents over-travel beyond the cutter, while the clear cutter guard helps keep hands safely away from the blade or router bit.
Specification
Specification
| Materials | Glass-reinforced ABS, steel, aluminium, nylon, polycarbonate, MDF and engineering plastics |
| Overall dimensions | 267 × 356 × 124mm (10-1/2" × 14" × 4-7/8") |
| Main body length | 305mm (12") |
| Maximum fence opening | 229mm (9") |
| Mitre slot required | 19 × 9.5mm (3/4" × 3/8") |
| Mitre bar length | 356mm (14") |
| Mitre slot to cutter range | 108–194mm (4-1/4" to 7-5/8") |
| Maximum cutter height | 41mm (1-5/8") |

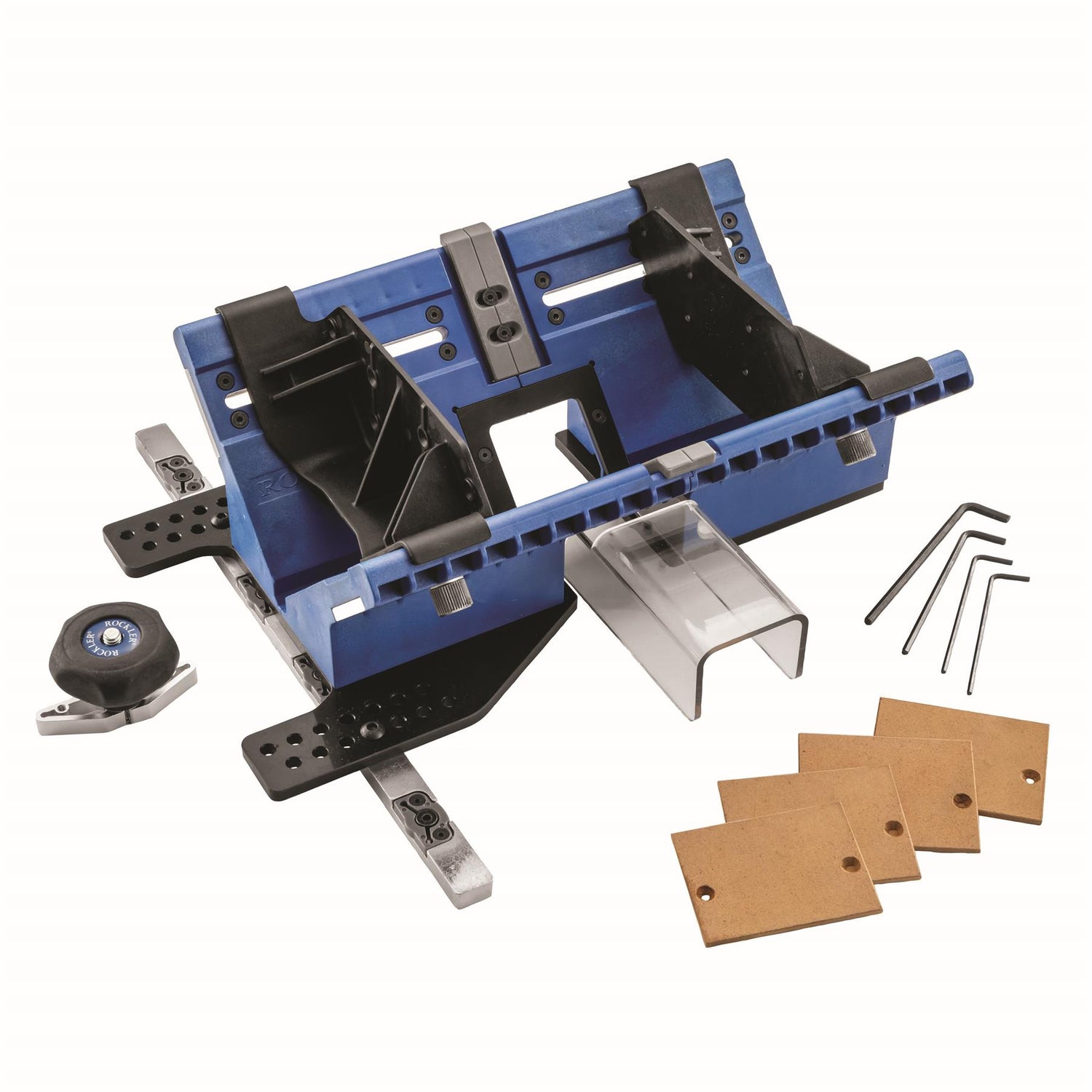

What's in the Box
What's in the Box
- 1 × Aluminium mitre bar with adjustable tension blocks
- 1 × Deluxe Spline Jig base
- 2 × Adjustable fences
- 5 × MDF zero-clearance inserts
- 1 × Mitre stop with five-star locking knob
- 1 × Hardware pack
