INCRA LS32 Positioner Only 810mm (Metric)

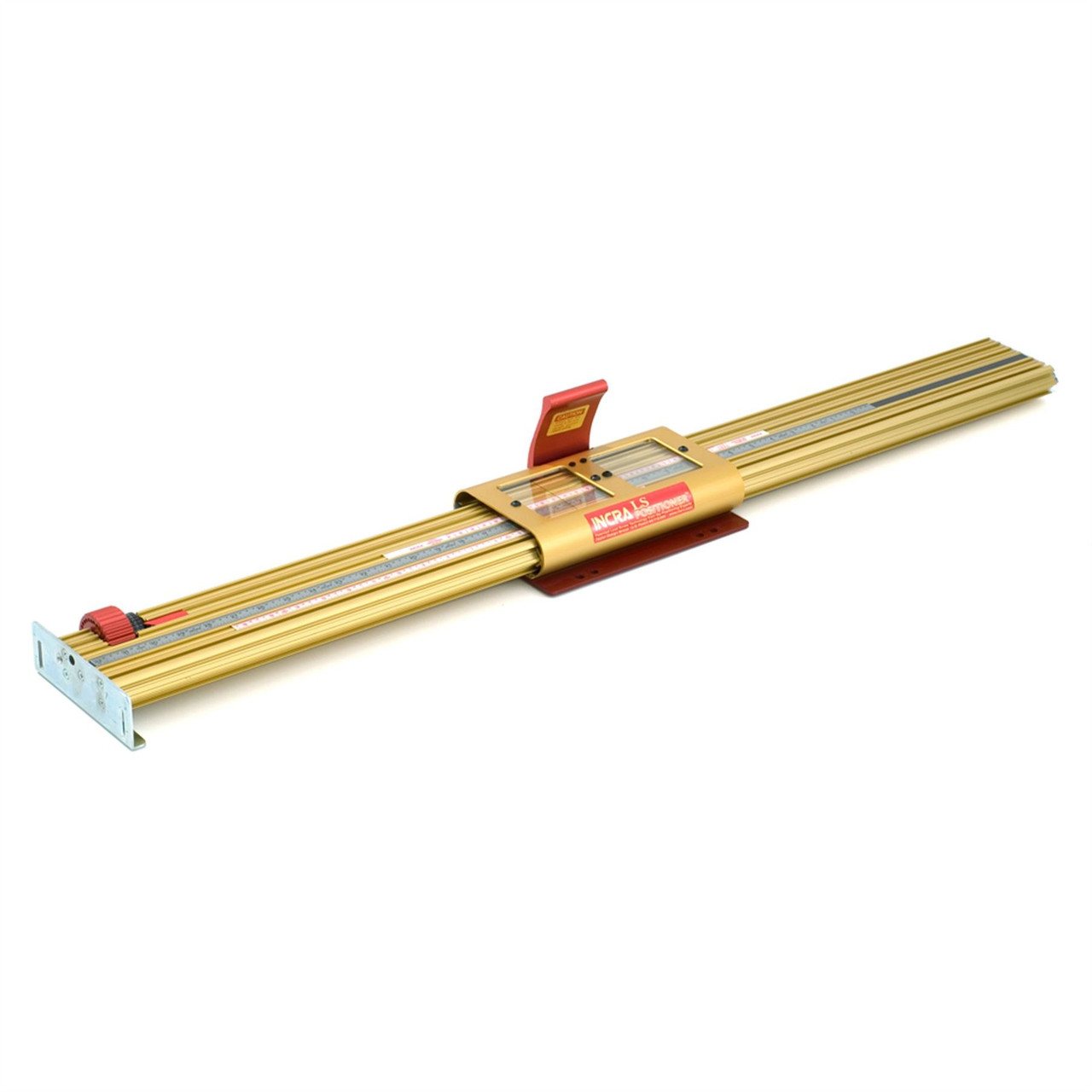

INCRA's LS32 Positioner is designed specifically for table saw use in conjunction with an INCRA TS Rail System, and is the largest fence positioner of the LS family.

It's a direct replacement for the Ultra positioners used with the INCRA TS-II and TS-3A Fence Systems, and when equipped with the appropriate sub base, the LS32 can also serve as the foundation of a super-sized, custom router fence system.

The LS is the beefiest positioner INCRA have ever produced, with rock-solid fence travels of 32" 810mm.

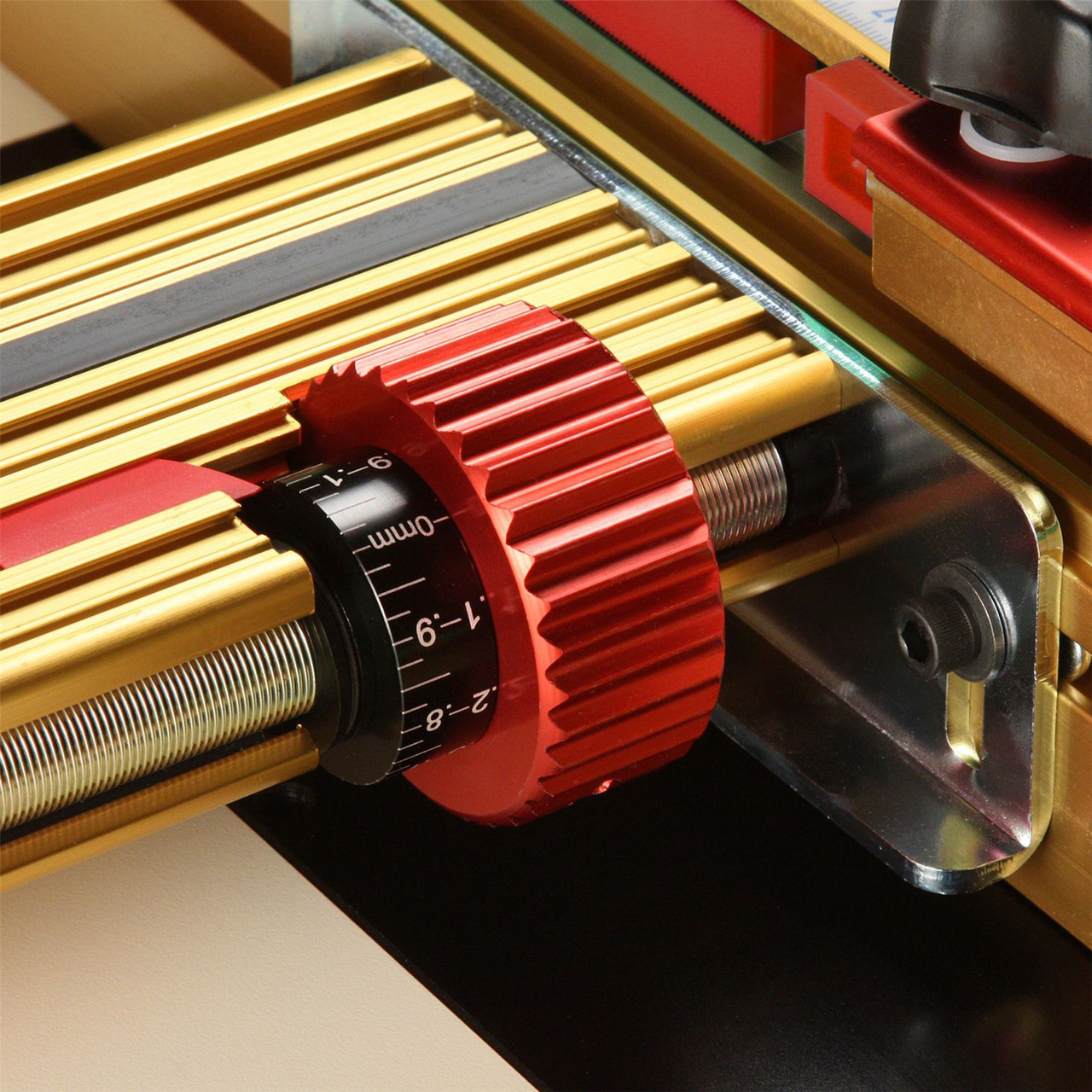

Lifting the red locking lever causes the patented steel lead screw positioning system to instantly snap the fence to the dead centre of any multiple of 1mm with an accuracy of 0.05mm. This allows fence positioning far beyond what's possible by eyesight alone, and fence setups are instantly repeatable. The integrated micro adjust knob allows moving between whole increments with 0.025mm resolution for total control over small fence adjustments.

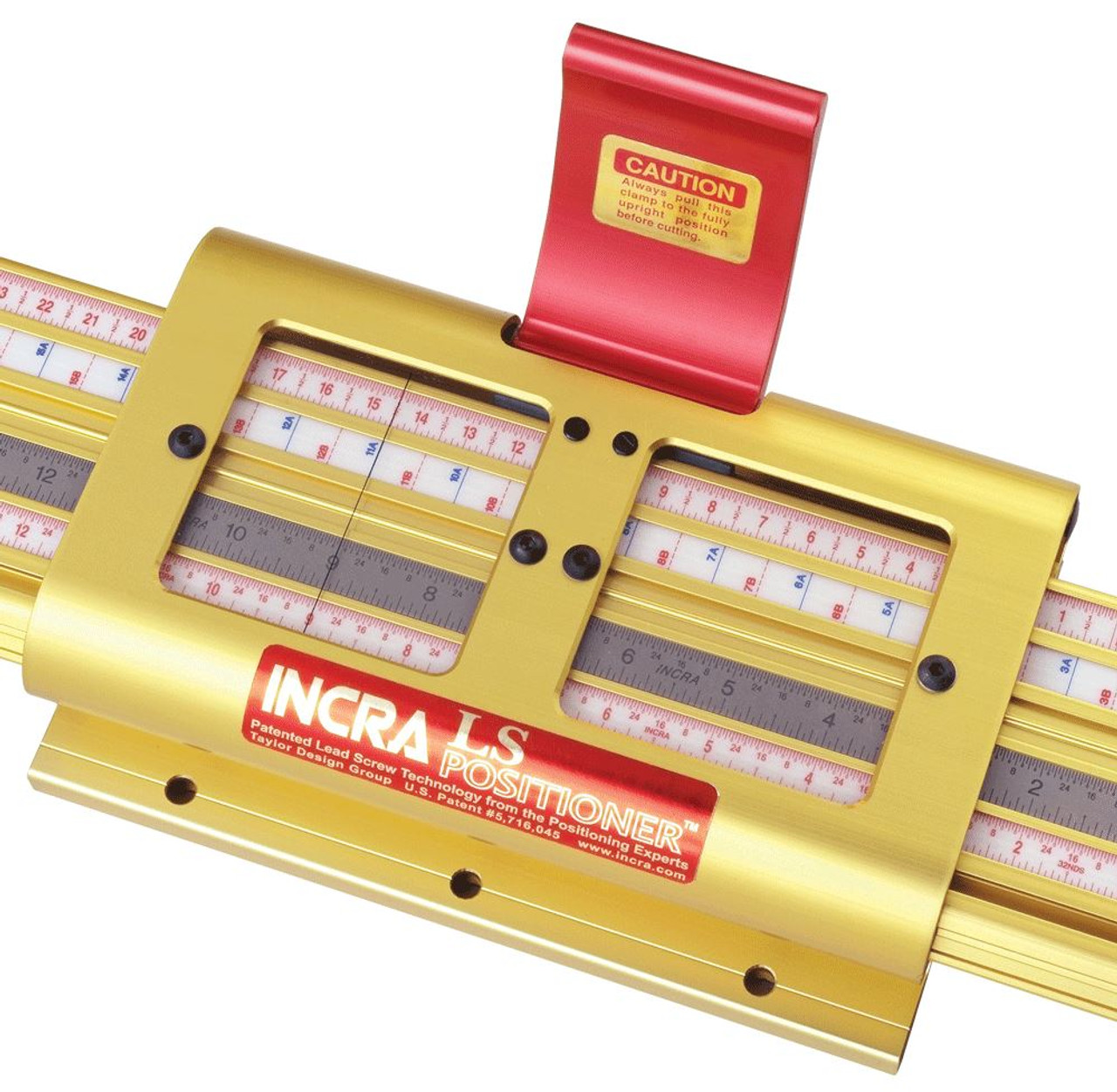

An engraved steel primary scale, Lexan secondary scale, and Auto Centre Scale (imperial model only) are included as standard. The steel fence mounting bracket accepts 1/4"-20 fasteners and is slotted vertically to accommodate several fence options and positioner installation heights.

LS32 is directly compatible with the TS-IIIA rip fence extrusion when used with a table saw rail system, and is compatible with the Pro-II Joinery Fence and stand-alone Wonder Fence 37 (available separately) when attached to a router table.

Please Note

1. If you have an Ultra TS-III saw fence system purchased in 1999-2000 and the rip fence has only one T-slot in the front face and one T-slot in the rear face, it will be necessary to upgrade to the newer TS-IIIA fence extrusion to use an LS Positioner. Please call for details.
2. To mount the LS32 to a router table, the standard steel sub base under the tubular base housing must be replaced with the T-slotted aluminium sub base used on the LS17 & LS25 positioners.

If you intend to attach the LS32 to a router table, please place your order by phone to ensure that your positioner is shipped with the appropriate sub base.

Instruction Manual

INCRA LS Positioner Instructional Manual
