AUKTools Honing Guide

£11.95
Inc. VAT
£9.96
Excl. VAT
SKU:
WWW_HONGUIDE
View Product Description
scroll

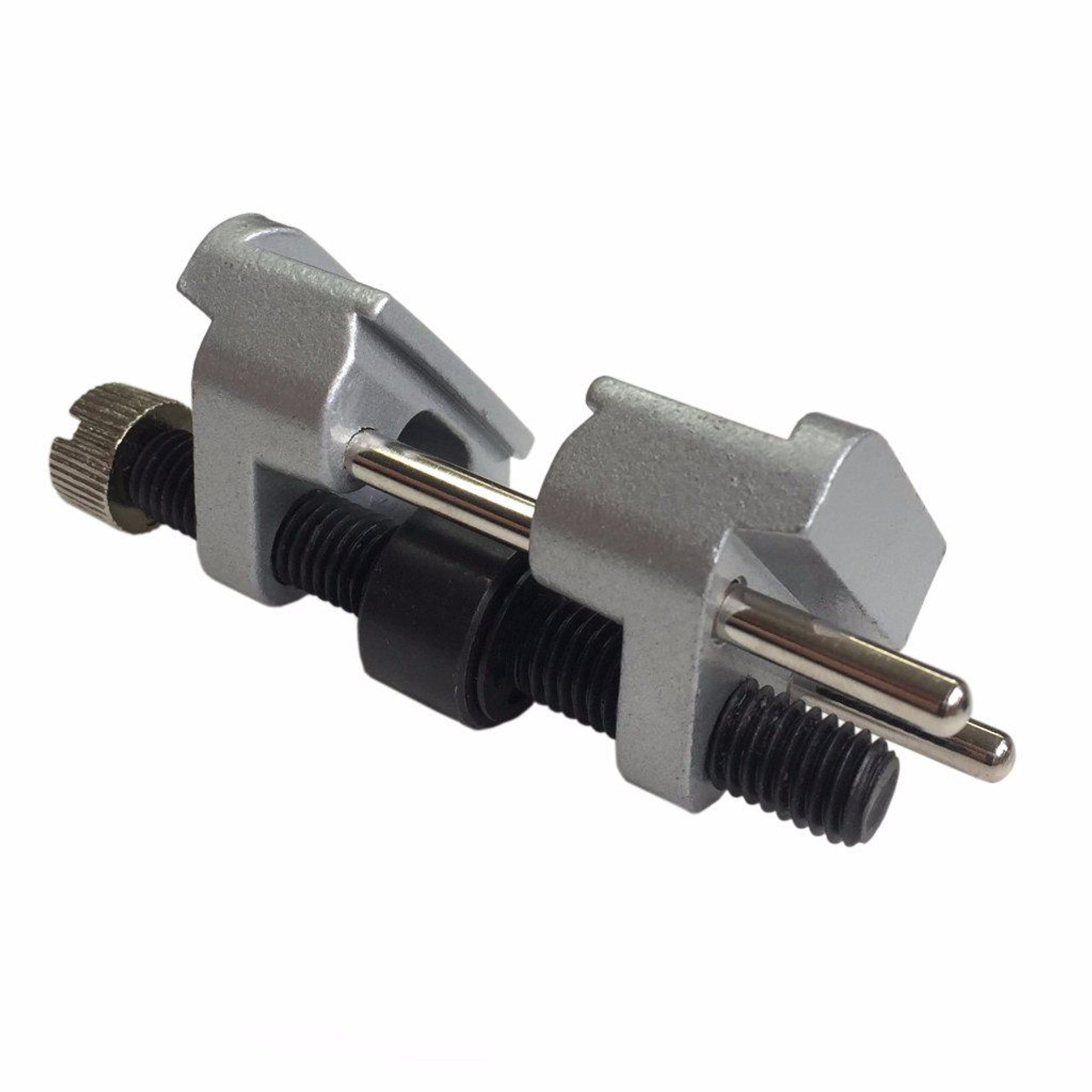

Our honing guide is designed with similarities to the classic Eclipse Honing Guide. Consistency is the key in sharpening, and using a honing guide will give you the exact bevel angle every time you sharpen a blade.

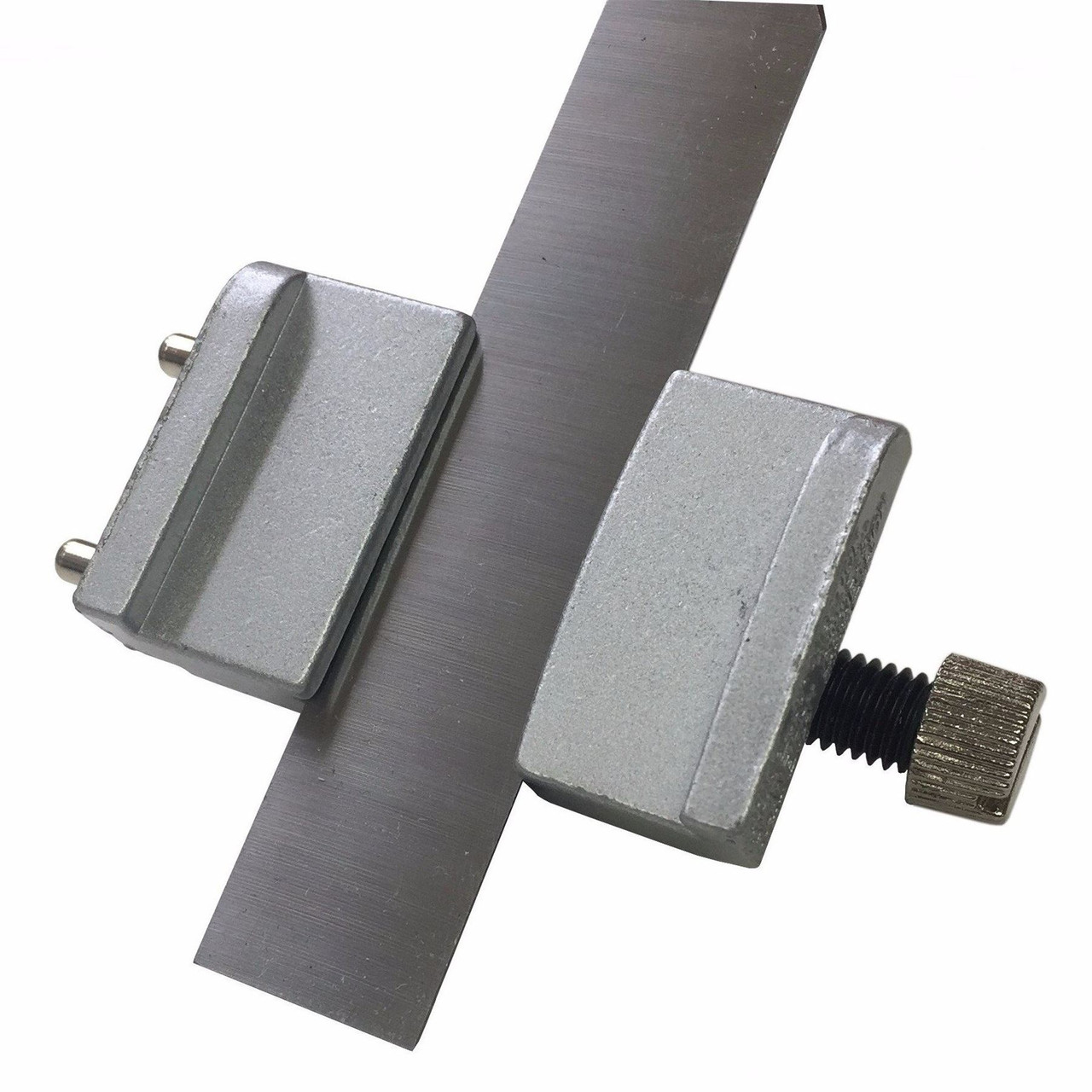

The honing guide has two clamping positions. The upper clamping position accommodates blades up to 78mm(3-1/8") wide.  The lower "V" clamping position holds bevel edge chisels or thiner blades from 3mm(1/8") to 48mm(1-7⁄8") wide.

The bevel angle on this guide depends on the blade's projection in front of the guide.  Plane irons in the upper clamping position: 50mm (2") gives a 25° bevel and 38mm (1-1/2") gives a 30° bevel.

Chisels or blades placed between the lower "V" clamping position: 40mm (1-9/16") for a 25° bevel or 30mm (1-3/16") for a 30° bevel.

The guide’s roller allows you to hone both straight cutting edges or by slightly rocking the guide you can put a cambered edge on a plane iron.
