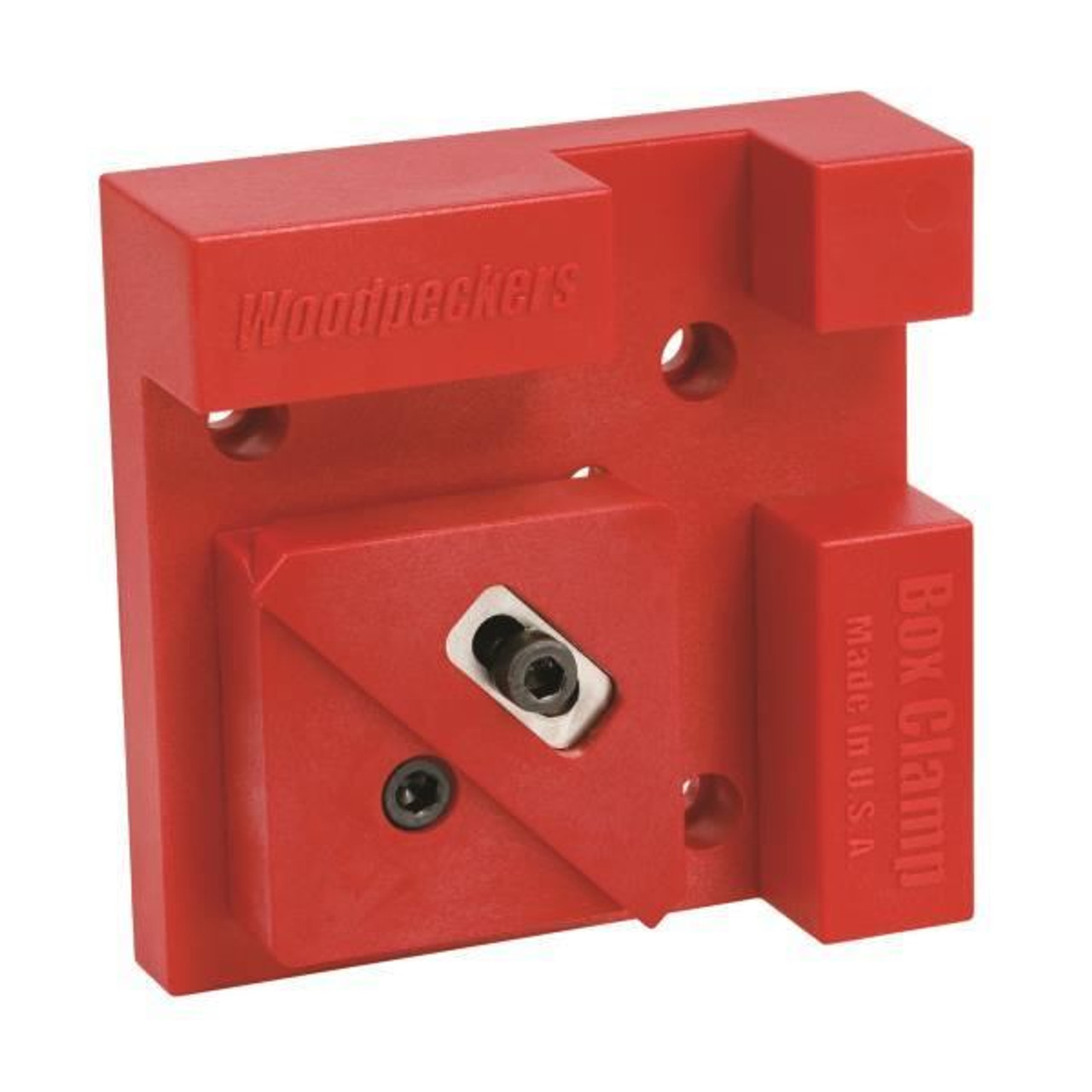

Woodpeckers Box Clamp (Pair)

The Woodpeckers Box Clamp is a simple device that eliminates the hassle of using heavy, expensive bar clamps for assembling boxes, drawers and especially full size cabinets.

Imagine being able to dry-fit and square up all your parts at the same time without any bulky clamps and before having to use any glue, screws or nails. You'll know right from the start if what you're building will assemble to the final dimensions, be as square as you need or if minor trim cuts are necessary.

You can do all of that without a second set of hands to hold pieces in place while getting a bar clamp in position and tightened up. Not only that but once your project is held together with the Box Clamps, you can immediately install any type of screws (even pocket screws) or nails because all of the corner joints are left fully accessible. There's nothing to get in your way.

Woodpeckers Box Clamps are designed for any 90 degree joint including butt joints, lap joints, T-joints, mitre joints, box joints, dovetails and more even if material is extending past the face. Ever try to use a bar clamp to assemble a box joint or dovetail? It doesn't work well. It's almost impossible to keep even one joint square with the uneven clamping typical of a bar clamp. Getting just one corner right is hard enough let alone all four at the same time.

The clamp will accommodate materials from 1/4 (6.35mm) up to 1 inch (25.4mm) in thickness.

The MC4-M2 Box Clamp is moulded from a special combination of glass reinforced polycarbonate. It's virtually indestructible and not a light weight; each clamp weighs over a half pound and comes with hardware for both hand as well as fixture use.
